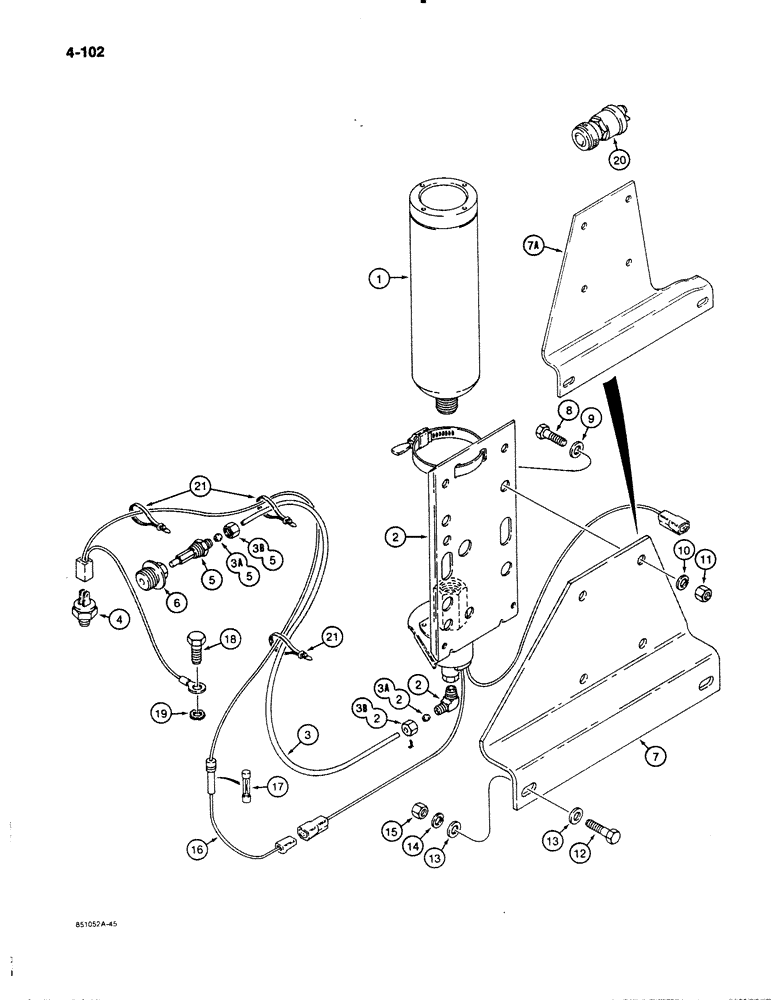

Запчасти Case W11B (4-102) - COLD START SYSTEM, P.I.N. 9158252 AND AFTER (04) - ELECTRICAL SYSTEMS

1

A171940

CYLINDER

CONTAINER - ether

1шт.

L116275

KIT

- cold weather starting aid, Includes: Ref. 2 - 5

1шт.

2

A172116

VALVE

ASSEMBLY - cold start, 3 cc starting fluid injector, component parts not serviced separately

1шт.

3

N8728

TUBE,1/8" OD x 96" L

- nylon, 8 ft (244 cm) long, cut to required length, Includes: Ref. 3A and 3B

1шт.

3a

222-650

SLEEVE,1/8" Tube, Comp

2шт.

3b

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

1/8" tube 5/16"-24, 45º Fl, Comp

2шт.

4

N8808

SWITCH

- cold start

1шт.

5

A172900

NOZZLE CAP

NOZZLE - atomizer

1шт.

6

L113696

PLUG

- special, if used

1шт.

7

L113354

BRACKET

- cold start mounting, used, Serial Range: -9164337

1шт.

7a

L118339

BRACKET

- cold start mounting, used, Start Serial: 9164337

1шт.

8

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

9

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

4шт.

10

492-11038

LOCK WASHER,3/8"

4шт.

11

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

12

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

13

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

4шт.

14

492-11038

LOCK WASHER,3/8"

2шт.

15

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

16

L115697

HARNESS

- cold start, Includes: Ref. 17

1шт.

17

223-10

FUSE,10 Amp, Type 3AG

- 10 amperes

1шт.

18

814-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

1шт.

19

193-46

LOCK WASHER,Ext-Int Tooth, 3/8"

WASHER - internal-external tooth lock, 3/8", plated

1шт.

20

REF

INSTRUCTION

SWITCH - cold start, parts list Figure 4-60

1шт.

21

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.
