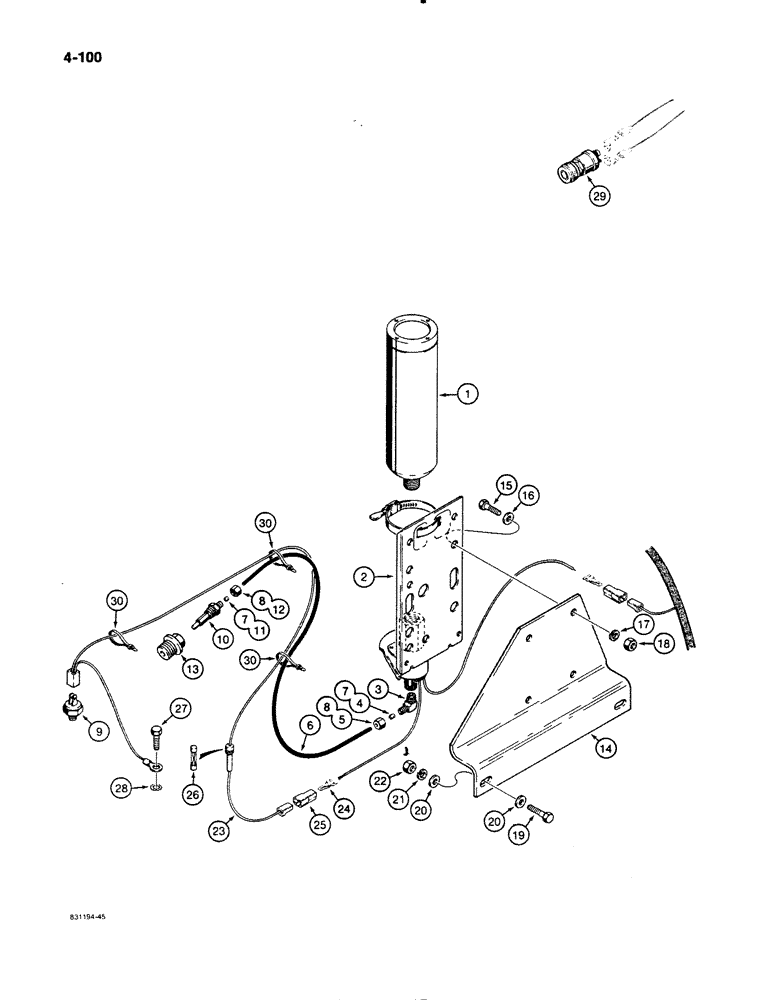

Запчасти Case W11B (4-100) - COLD START SYSTEM, BEFORE P.I.N. 9158252 (04) - ELECTRICAL SYSTEMS

1

A171940

CYLINDER

CONTAINER - ether

1шт.

L113432

KIT

- cold weather starting aid, Includes: Ref. 2 - 12

1шт.

2

A171938

VALVE

ASSEMBLY - cold start, 1.5 cc starting fluid injector includes bracket and clamp, Includes: Ref. 3 - 5

1шт.

222-615

ELBOW,90 Degree, 5/16"-24 x 1/8" NPT, Comp

Incl. Ref 3 - 5 90º, 5/16"-24 x 1/8" NPT, Comp

1шт.

3

NSS

NOT SOLD SEPARAT

BODY - fitting

1шт.

4

222-650

SLEEVE,1/8" Tube, Comp

1шт.

5

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

1/8" tube 5/16"-24, 45º Fl, Comp

1шт.

N8728

TUBE,1/8" OD x 96" L

ASSEMBLY - cold start, Includes: Ref. 6 - 8

1шт.

6

NSS

NOT SOLD SEPARAT

TUBE - nylon, 24" (610 mm)

1шт.

7

222-650

SLEEVE,1/8" Tube, Comp

2шт.

8

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

1/8" tube 5/16"-24, 45º Fl, Comp

2шт.

9

N8808

SWITCH

- cold start

1шт.

N8807

INJECTOR ASSY.

NOZZLE ASSEMBLY - cold start, Includes: Ref. 10 - 12

1шт.

10

NSS

NOT SOLD SEPARAT

BODY - nozzle

1шт.

11

222-650

SLEEVE,1/8" Tube, Comp

1шт.

12

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

1/8" tube 5/16"-24, 45º Fl, Comp

1шт.

13

L113696

PLUG

- special

1шт.

14

L113354

BRACKET

- cold start mounting

1шт.

15

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

16

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

4шт.

17

492-11038

LOCK WASHER,3/8"

4шт.

18

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

19

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

20

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

4шт.

21

492-11038

LOCK WASHER,3/8"

2шт.

22

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

23

L113489

HARNESS

- cold start

1шт.

24

223-180

TERMINAL CONNECTOR,Male, 14 - 16

TERMINAL - cold start harness, male

2шт.

25

223-166

CONNECTOR, ELEC

CONNECTOR - cold start harness, female

2шт.

26

223-10

FUSE,10 Amp, Type 3AG

- 10 amperes

1шт.

27

814-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

1шт.

28

193-46

LOCK WASHER,Ext-Int Tooth, 3/8"

WASHER - internal-external tooth lock, 3/8", plated

1шт.

29

L72776

SWITCH

ASSEMBLY - cold start, parts list Figure 4-58, Refs. 5 - 9

1шт.

30

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.
