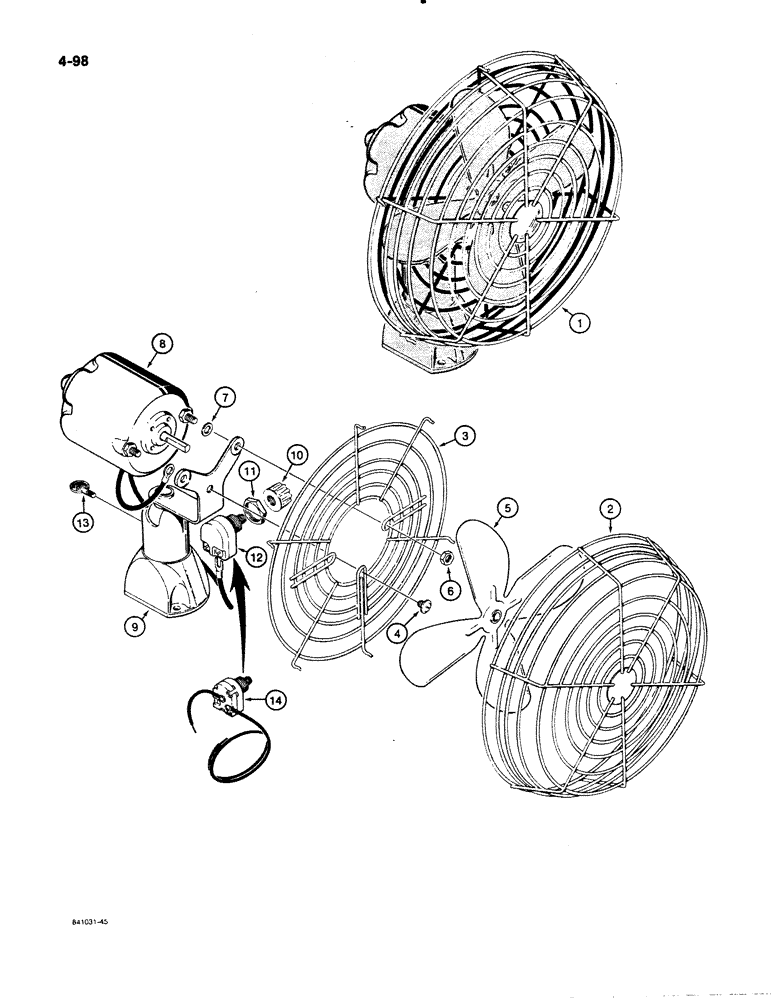

Запчасти Case W11B (4-098) - L13468 DEFROSTER FAN (04) - ELECTRICAL SYSTEMS

1

L13468

FAN

- defroster, Includes: Ref. 1 - 14

1шт.

2

L30907

GUARD

GRILLE - fan, front

1шт.

3

L30904

GRILLE

- fan, back

1шт.

4

L30906

BOLT

- special

1шт.

5

L30902

FAN

BLADE ASSEMBLY - fan

1шт.

6

129-36

NUT,#8-36

- hex, no. 8 NF

2шт.

7

L35760

WASHER

- special

1шт.

8

A44571

MOTOR, ELECTRIC

MOTOR - fan

1шт.

9

L30900

BASE

- fan

1шт.

10

L30909

KNOB

- control

1шт.

11

L30908

NUT

- hex, special

1шт.

12

L30903

SWITCH

- control, with screw terminals, no longer available, order (1) N9113 switch, Ref. 14

1шт.

13

L30910

SCREW

THUMB SCREW - swivel, if used

1шт.

14

N9113

SWITCH

- control, with wire leads, service replacement

1шт.
