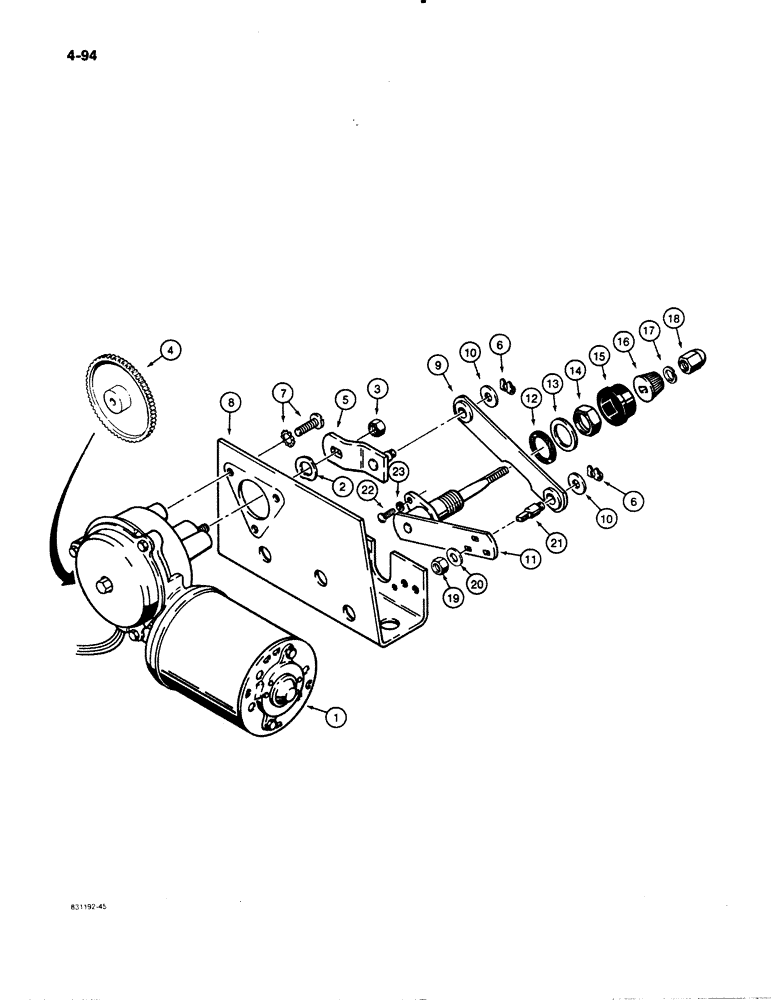

Запчасти Case W11B (4-094) - FRONT WIPER MOTOR, BEFORE P.I.N. 9158232 (04) - ELECTRICAL SYSTEMS

F96765

WIPER MOTOR

MOTOR - wiper, front window, Includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

MOTOR - wiper

1шт.

2

D71411

WASHER

- wave

1шт.

3

F44452

LOCK NUT

- hex, keps

1шт.

4

N6029

GEAR

- plastic drive

1шт.

5

A36091

ARM

ASSEMBLY - drive

1шт.

6

D71414

CLIP

- spring

2шт.

7

D72849

SCREW

- machine, keps round head

3шт.

8

D72850

BRACKET

- mounting, motor

1шт.

9

D71427

LINK,85.85mm L

- connecting

1шт.

10

A22431

WASHER

SPACER - pivot shaft

2шт.

D72848

SHAFT

ASSEMBLY - pivot, for identification, shaft is 2-3/4 inches (70 mm) from flange to end, Includes: Ref. 11 - 21

1шт.

11

NSS

NOT SOLD SEPARAT

SHAFT - pivot

1шт.

12

D71417

SPECIAL WASHER

WASHER - flat

1шт.

13

D71418

WASHER

- flat

1шт.

14

D71419

NUT

- hex jam

1шт.

15

D71420

CAP

- shaft

1шт.

16

D71421

TOOL

DRIVE - wiper arm

1шт.

17

193-9

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, Ext Tooth, 5/16"

1шт.

18

D71422

NUT

- hex, cap

1шт.

19

425-154

JAM NUT,Jam, 1/4"-28, G5

1шт.

20

193-60

LOCK WASHER,Int Tooth, 1/4"

WASHER - flat, 1/4" plated

1шт.

21

D73642

PIN

PIN - threaded

1шт.

22

182-528

SCREW,Sl Pan Hd, #10 - 32 x 1/2"

- machine, pan head, No. 10 NF x 1/2 inch uses Ref. 23, if used

2шт.

22

F44456

SCREW,0.19" - 32 x 3 3/4"

- special, pivot shaft to bracket, does not use Ref. 23, if used

2шт.

23

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.
