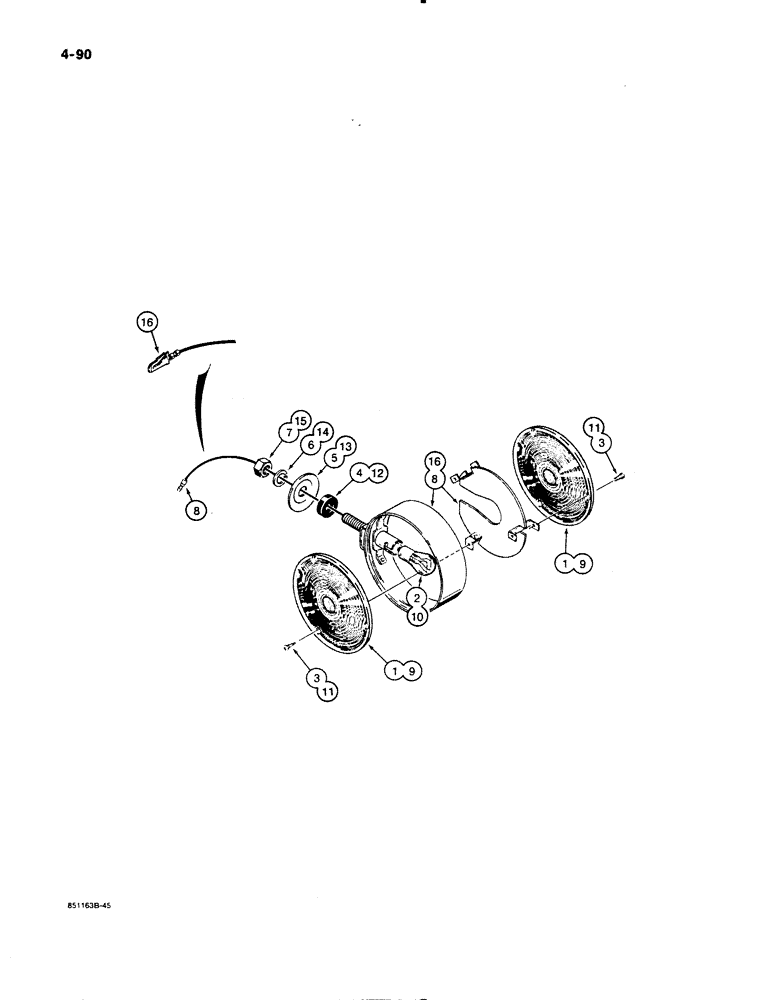

Запчасти Case W11B (4-090) - TURN SIGNAL LAMPS, TURN SIGNAL LAMP - L79648, (FOR (04) - ELECTRICAL SYSTEMS

L79648

LAMP

ASSEMBLY - turn signal and flasher, Includes: Ref. 1 - 8

2шт.

1

L30260

LENS

- amber

2шт.

2

A41264

BULB,#1156, 12V

Lamp #1156, 12V

1шт.

3

173-203

SCREW,Sl Rnd Hd, #6 - 32 x 1/2"

- machine, round head slotted, no. 6 NC x 1/2 inch

6шт.

4

L30259

WASHER

- rubber

1шт.

5

L30258

WASHER

- crowned

1шт.

6

192-17

LOCK WASHER,#12

Washer, Lock, #12

1шт.

7

129-104

NUT,7/16"-14, G5

1шт.

8

NSS

NOT SOLD SEPARAT

BODY AND RETAINER - turn signal lamp, male bullet terminal

1шт.

L117800

LAMP

ASSEMBLY - turn signal and flasher, Includes: Ref. 9 - 16

2шт.

9

L30260

LENS

- amber, turn signal lamp - L117800 (for identification purposes see Ref. 16)

2шт.

10

A41264

BULB,#1156, 12V

Lamp, Turn signal lamp - L117800 (For identification purposes, See Ref. 16) #1156, 12V

1шт.

11

173-203

SCREW,Sl Rnd Hd, #6 - 32 x 1/2"

- machine, round head slotted, no. 6 NC x 1/2 inch, turn signal lamp - L117800 (for identification purposes see Ref. 16)

6шт.

12

L30259

WASHER

- rubber, turn signal lamp - L117800 (for identification purposes see Ref. 16)

1шт.

13

L30258

WASHER

- crowned, turn signal lamp - L117800 (for identification puroposes see Ref. 16)

1шт.

14

192-17

LOCK WASHER,#12

Washer, Lock, , Turn signal lamp - L117800 (for identification purposes see Ref. 16) #12

1шт.

15

129-104

NUT,7/16"-14, G5

Turn signal lamp - L117800 (for identification purposes see Ref. 16) 7/16"-14, G5

1шт.

16

NSS

NOT SOLD SEPARAT

BODY AND RETAINER - turn signal lamp, male blade terminal, turn signal lamp - L117800 (for identification purposes see Ref. 16)

1шт.
