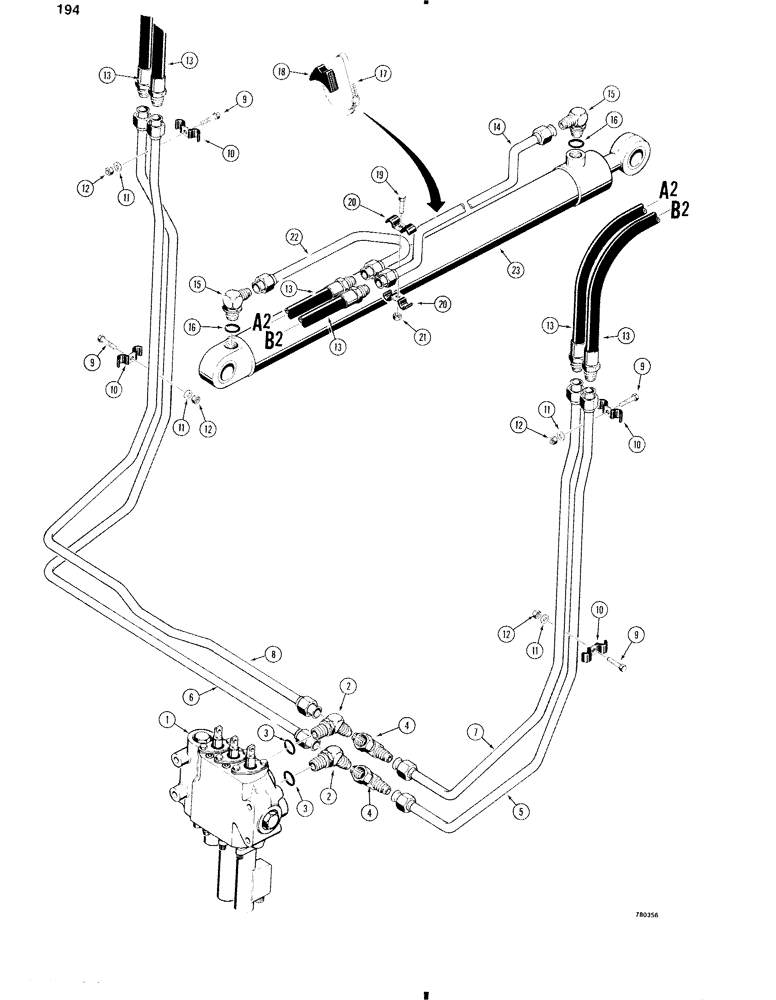

Запчасти Case W11 (194) - LOADER BUCKET HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE - loader, Fig. 205 and 207

1шт.

2

218-5149

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

Adjustable, Incl. Ref 3

2шт.

3

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Elbow

1шт.

4

218-842

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Br

Tube

2шт.

5

L78162

TUBE,0.625" OD

RH, from lower valve port

1шт.

6

L78174

TUBE,0.625" OD

LH, from lower valve port

1шт.

7

L78164

TUBE,0.625" OD

RH, from upper valve port

1шт.

8

L78172

TUBE,0.625" OD

LH, from upper valve port

1шт.

9

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

4шт.

10

A12032

CLAMP

Tube

4шт.

11

95-5

WASHER,3/8" x 7/8" x .083"

Flat, 5/16"

4шт.

12

131-651

NUT,5/16"-18, GB

4шт.

13

D32288

HOSE ASSY.

36" (914 mm) long

4шт.

14

L74741

TUBE ASSY.,0.625" OD x 25.36, 5.02" L

To rod end of cylinder

2шт.

15

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Adjustable, Incl. Ref. 16

4шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Elbow

1шт.

17

214-264

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

2шт.

18

D38648

BLOCK

SPACER - rubber

2шт.

19

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

2шт.

20

A12032

CLAMP

Tube

4шт.

21

131-651

NUT,5/16"-18, GB

2шт.

22

L77056

TUBE ASSY.,0.625" OD x 16.9, 3.5" L

To closed end of cylinder

2шт.

23

G101054

CYLINDER

Bucket parts list Fig. 218

2шт.
