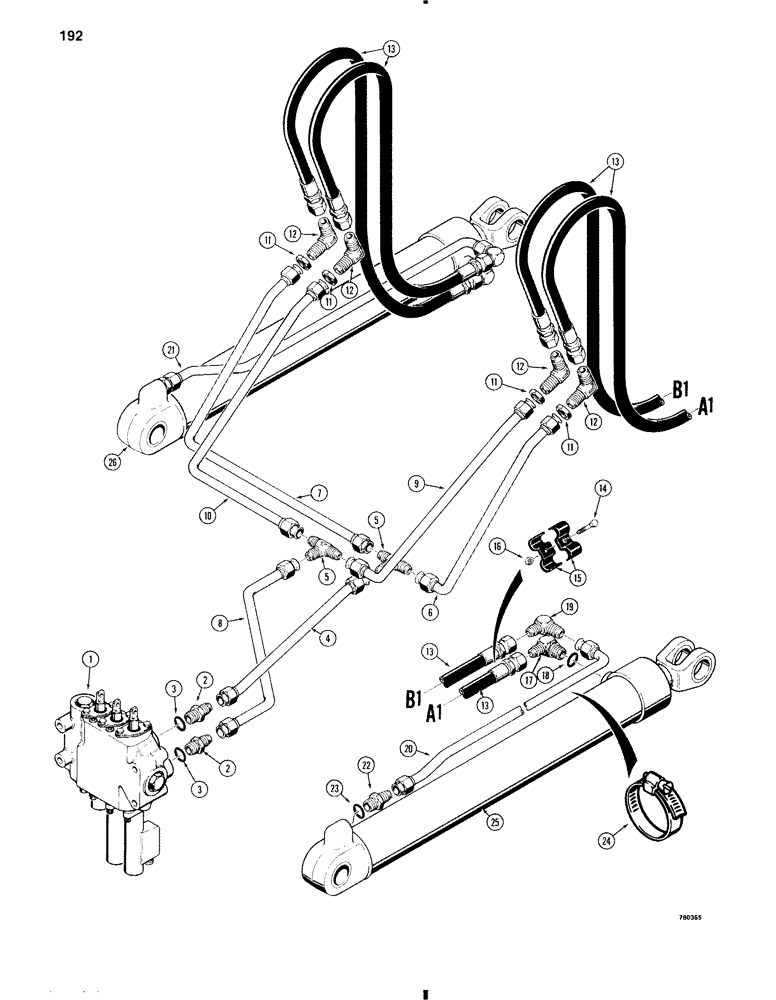

Запчасти Case W11 (192) - LOADER LIFT HYDRAULIC CIRCUIT (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION
CONTROL VALVE - loader, Figs. 205 and 207
1шт.
2
218-5064
HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB
ADAPTER - straight, Incls. Ref. 3
2шт.
3
218-5008
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
- adapter
1шт.
4
L78153
TUBE,0.75" OD x 22.82, 6.72" L
- from upper valve port
1шт.
5
218-605
TEE,37 Degree, 7/8"-14 x 1 1/16"-12, Br
- tube
2шт.
6
L74902
TUBE ASSY.,0.625" OD
TUBE - right-hand lower
1шт.
7
L74900
TUBE,0.625" OD
- left-hand lower
1шт.
8
L105418
TUBE ASSY.,0.75" OD
TUBE - from lower valve port
1шт.
9
L74896
TUBE ASSY.,0.625" OD
TUBE - right-hand upper
1шт.
10
L74898
TUBE ASSY.
TUBE - left-hand upper
1шт.
11
218-1251
BHD LOCK NUT,Blkhd, 7/8"-14
NUT, LOCK, Blkhd, 7/8"-14
4шт.
12
218-695
ELBOW,90 Degree Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree
- 90 degree, bulkhead
4шт.
13
37405
HOSE
- 36" (914 mm) long
4шт.
14
13-624
BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5
- hex head, 3/8" - 16 NC x 1-1/2"
2шт.
15
R15257
CLAMP
- hose
4шт.
16
131-652
LOCK NUT,3/8"-16, GB
NUT - hex, self-locking, 3/8" - 16 NC
2шт.
17
218-5107
90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB
- 90 degree, adjustable, Incls. Ref. 18
2шт.
18
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
- elbow
1шт.
19
218-475
ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male JIC
- 90 degree
2шт.
20
L74734
TUBE ASSY.,0.625" OD x 31.18, 1.92" L
TUBE - right-hand
1шт.
21
L74915
TUBE ASSY.,0.625" OD
TUBE - left-hand
1шт.
22
218-5062
HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring
ADAPTER - straight, Incls. Ref. 23
2шт.
23
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
- adapter
1шт.
24
214-267
HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm
CLAMP - worm screw
2шт.
25
G101052
CYLINDER ASSY.
CYLINDER - right-hand parts list Fig.216
1шт.
26
G101053
CYLINDER ASSY.
CYLINDER - left-hand, parts list Fig. 216
1шт.
Выбрано товаров: 26
