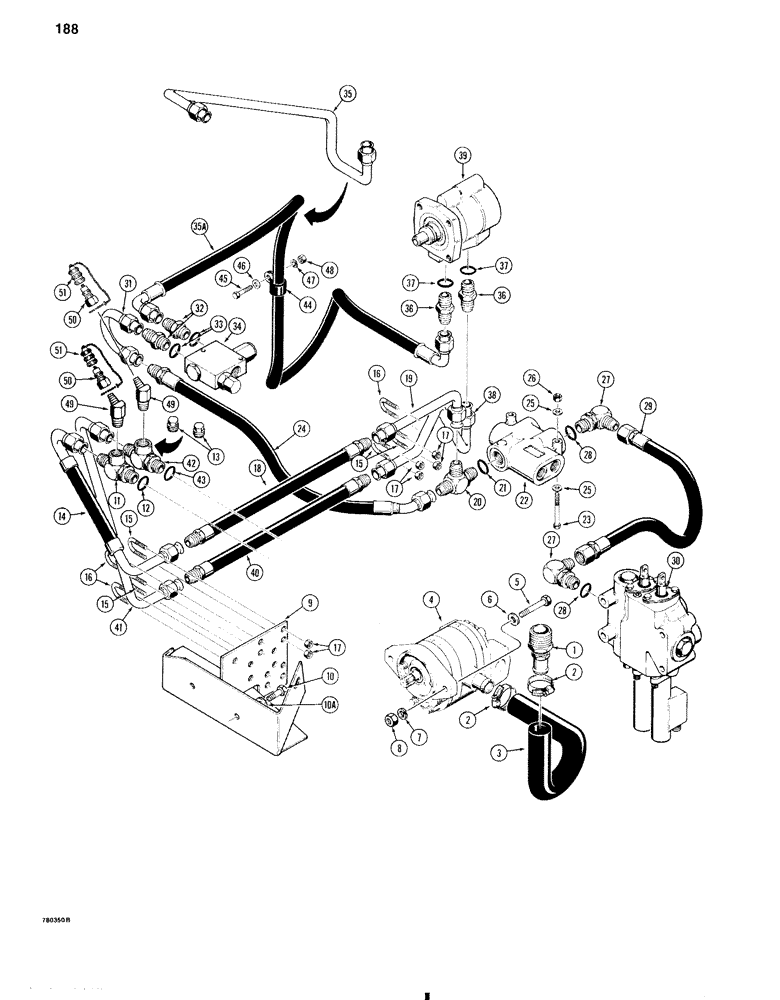

Запчасти Case W11 (188) - HYDRAULIC CIRCUIT, PUMP FLOW CIRCUIT (08) - HYDRAULICS

1

217-157

FITTING,1-1/4" Hose Barb x 1-1/4" Male NPTF

STEM FITTING - straight

1шт.

2

214-371

CLAMP,1.56"-1.81", T-Bolt

- hose

2шт.

3

L74990

HOSE,1.25" ID x 21.40"

1шт.

4

L77150

PUMP, HYDRAULIC

PUMP - parts list page 201

1шт.

5

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- hex head, 1/2" - 13 NC x 2-1/2"

2шт.

6

95-8

WASHER,1/2"

flat 1/2"

2шт.

7

92-8

LOCK WASHER,1/2"

2шт.

8

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

2шт.

9

L78973

BRACKET

- tube mounting

1шт.

10

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

10a

95-8

WASHER,1/2"

flat 1/2"

2шт.

11

L74986

TEE

- adjustable, Incls. Ref. 12

1шт.

12

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- tee

1шт.

13

221-655

PLUG,Hex Hd, 3/4"-14

- hex head, 3/4" NPT, if used

2шт.

14

L79660

TUBE ASSY.

HOSE ASSEMBLY - special, not used on models with auxiliary steering, Ref. 119, Fig. 39

1шт.

15

L78949

U-BOLT

- 5/16" - 18 NC x 5/8"

4шт.

16

L78948

U-BOLT

- 5/16" - 18 NC x 3/4"

3шт.

17

131-651

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC

14шт.

18

L77031

HYDRAULIC HOSE,0.63" ID x 20.00"

Upper 0.63" ID x 20.00"

1шт.

19

L78984

TUBE

- upper

1шт.

20

L77910

TEE

- adjustable, Incls. Ref. 21

1шт.

21

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- tee

1шт.

22

REF

INSTRUCTION

FLOW CONTROL VALVE - parts list Fig. 203

1шт.

23

13-444

CAPSCREW,Hex, 1/4" - 20 x 2 3/4", Gr 5

BOLT - hex head, 1/4" - 20 NC x 2-3/4"

2шт.

24

L101107

HOSE

ASSEMBLY - 16-1/2" (419 mm) long

1шт.

25

95-4

WASHER,1/4"

- flat, 1/4"

4шт.

26

131-650

NUT,1/4"-20, GB

NUT - hex, self-locking, 1/4" - 20 NC

2шт.

27

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

adjustable, Incl. Ref. 28 90º, 1 1/16"-12, 37º x 1 1/16"-12, O-Ring

2шт.

28

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- elbow

1шт.

29

L78021

HOSE

- 23" (584 mm) long

1шт.

30

REF

INSTRUCTION

CONTROL VALVE - loader, see Fig. 205 and 207

1шт.

31

L101149

TUBE ASSY.,0.625" OD x 3.46, 3" L

TUBE - U-shape

1шт.

32

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., , straight, Incls. Ref. 33 7/8"-14, 37º x 3/4"-16, O-Ring

2шт.

33

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- adapter

1шт.

34

REF

INSTRUCTION

UNLOADING VALVE - parts list Fig. 203

1шт.

35

NSS

NOT SOLD SEPARAT

TUBE, replaced with L101244 hose, Ref. 35A

1шт.

35a

L101244

HOSE

- brake actuator to unloading valve, 22-1/2" (572 mm) long

1шт.

36

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, Incls, Ref. 37

2шт.

37

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- adapter

1шт.

38

L78937

TUBE,0.625" OD

- lower

1шт.

39

REF

INSTRUCTION

BRAKE ACTUATOR - Fig. 175

1шт.

40

L74997

HOSE ASSY.,0.50" ID x 20.00"

HOSE ASSY, , Lower 0.50" ID x 20.00"

1шт.

41

L79175

TUBE,0.625" OD

- not used on models with auxiliary steering, Fig. 119, Ref. 38

1шт.

item 38

1шт.

42

L74987

TEE

- adjustable, Incls. Ref. 43

1шт.

43

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- tee

1шт.

44

R12102

CLAMP

- hose (Replaces R12012)

1шт.

45

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

46

95-6

WASHER,3/8"

- flat, 3/8"

1шт.

47

92-6

LOCK WASHER,3/8"

1шт.

48

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

49

L100960

FITTING

ELBOW - 45 degree

2шт.

50

S206607

DISC

COUPLING - male, quick disconnect

2шт.

51

S206608

CAP

- dust

2шт.
