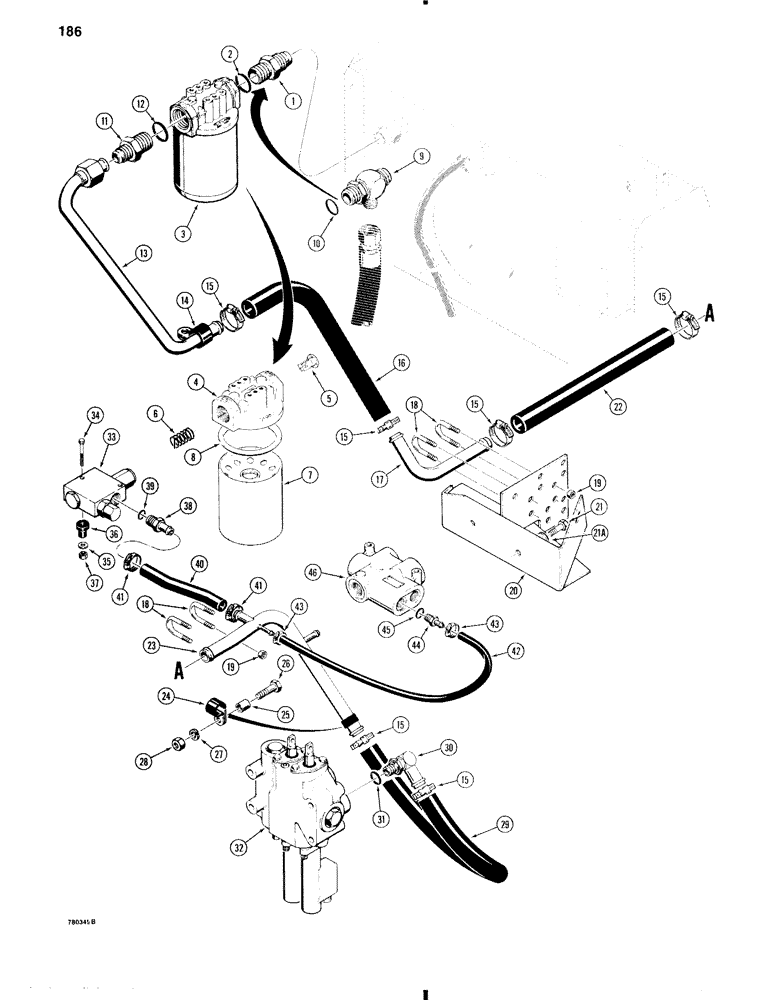

Запчасти Case W11 (186) - HYDRAULIC CIRCUIT, RETURN LINES (08) - HYDRAULICS

1

218-5072

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-5/8" - 12 Male ORB

ADAPTER - straight, models without auxiliary steering, Incls. Ref. 2

1шт.

2

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

- adapter

1шт.

3

L73855

FILTER

- hydraulic oil, Incls. Ref. 4-8

1шт.

4

NSS

NOT SOLD SEPARAT

HEAD - filter

1шт.

5

D74434

VALVE POPPET

POPPET - filter head

1шт.

6

D80540

SPRING

- poppet

1шт.

D80538

FILTER

KIT - filter element, Incls. Ref. 7 & 8

1шт.

7

NSS

NOT SOLD SEPARAT

ELEMENT - filter

1шт.

8

D80539

OIL SEAL

SEAL - element

1шт.

9

218-5293

TEE - filter to reservoir, models with auxiliary steering 37º, 1 5/8"-12, 1 5/8"-12 O-Ring Run, 3/4"-14

1шт.

10

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

- tee

1шт.

11

218-5086

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 5/8"-12, O-Ring

ADAPTER - straight

1шт.

12

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

- adapter

1шт.

13

L74808

TUBE ASSY.,1" OD x 22.24, 18.31" L

TUBE - models without auxiliary steering

1шт.

13

L78292

TUBE ASSY.,1" OD x 22.23, 20.25" L

TUBE - models with auxiliary steering

1шт.

14

L73714

CLAMP

- tube

1шт.

15

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

4шт.

16

L70286

HOSE,1.00" ID x 18.00"

1шт.

17

L74984

ELBOW

TUBE - 90 degree

1шт.

18

L78947

U-BOLT

- 5/16" - 18 NC x 1"

4шт.

19

131-651

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC

8шт.

20

L112223

BRACKET

- tube mounting

1шт.

21

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

21a

95-8

WASHER,1/2"

flat 1/2"

2шт.

22

L79056

HOSE

- 1" (25 mm) ID x 21" (533 mm) long

1шт.

23

L79041

TUBE

- from loader control valve

1шт.

24

R14668

CLAMP

- tube

1шт.

25

D33554

BUSHING

SPACER - clamp

1шт.

26

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8" - 16 NC x 2"

1шт.

27

92-6

LOCK WASHER,3/8"

1шт.

28

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

29

L70286

HOSE,1.00" ID x 18.00"

1шт.

30

217-352

FITTING,90 Degree Elbow, 1" Hose Barb x 1-5/16" - 12 Male ORB

STEM FITTING - 90 degree, adjustable, Incls. Ref. 31

1шт.

31

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- fitting

1шт.

32

REF

INSTRUCTION

CONTROL VALVE - loader, Fig. 205 and 207

1шт.

33

REF

INSTRUCTION

UNLOADING VALVE - parts list Fig, 202

1шт.

34

13-556

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

- hex, 5/16"-18 NC x 3-1/2"

2шт.

35

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16"

2шт.

36

C17546

GROMMET

CUSHION - rubber

2шт.

37

131-651

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC

2шт.

38

217-395

FITTING,5/8" Hose Barb x 3/4" - 16 Male ORB

STEM FITTING - straight, Incls. Ref. 39

1шт.

39

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- stem fitting

1шт.

40

L79701

HOSE

- 5/8" (16 mm) ID x 8 " (203 mm) long

1шт.

41

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - hose

2шт.

42

L74992

HOSE,0.25" ID x 18.00", SAE 100R3

1шт.

43

214-251

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

CLAMP - hose

2шт.

44

217-193

FITTING,1/4" Hose Barb x 7/16" - 20 Male ORB

STEM FITTING - straight, Incls. Ref. 45

1шт.

45

218-500?

O-RING - stem fitting

1шт.

46

L76814

VALVE

FLOW CONTROL VALVE - parts list Fig. 202

1шт.
