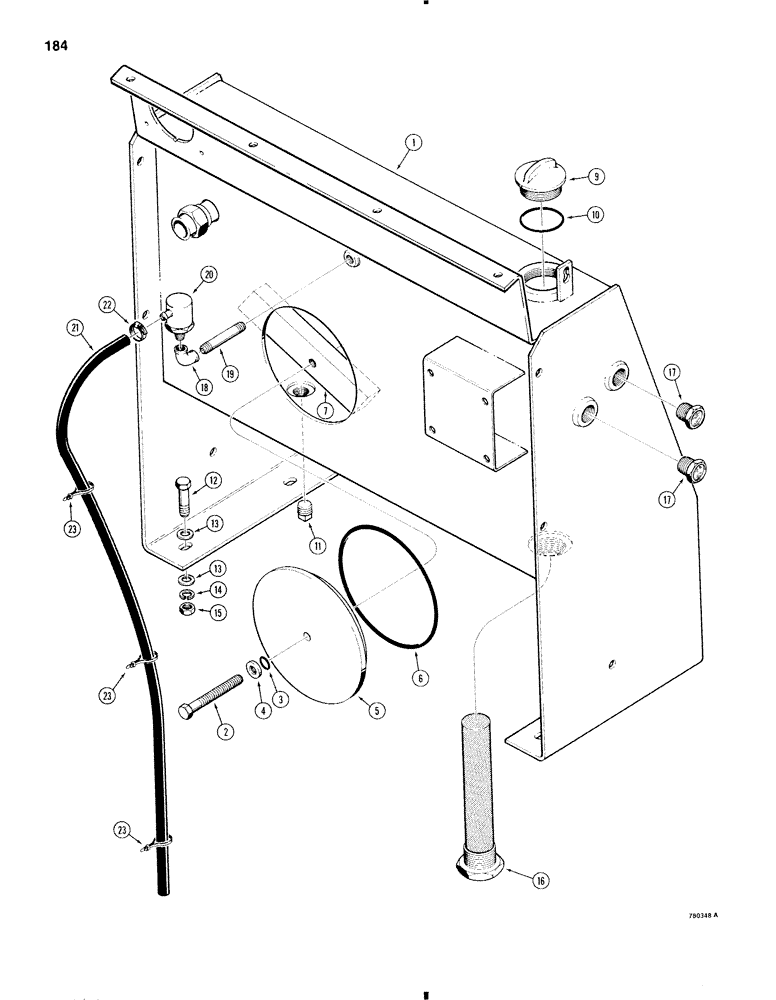

Запчасти Case W11 (184) - HYDRAULIC RESERVOIR (TANK) (08) - HYDRAULICS

L106950

TANK

RESERVOIR ASSEMBLY - hydraulic oil, Incls. Ref. 1-11

1шт.

1

NSS

NOT SOLD SEPARAT

RESERVOIR - hydraulic oil

1шт.

2

113-695

BOLT,Hex, 1/2" - 13 x 4", Gr 5

- hex head, 1/2" - 13 NC x 4"

1шт.

3

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

- bolt seal

1шт.

4

L78045

WASHER

- flat, special

1шт.

5

L77124

COVER ASSY

COVER - hand hole

1шт.

6

L55410

O-RING,0.275" Thk x 7.22" ID, -442, Cl 5, 75 Duro

- cover

1шт.

7

L77125

BAR

- cover retaining

1шт.

8

RESERVED

1шт.

9

L100349

PLUG

CAP - fill

1шт.

10

A7552

O-RING,0.21" Thk x 1.975" ID, -329, Cl 5, 75 Duro

- fill cap

1шт.

11

221-677

DRAIN PLUG,Sq Hd, 3/4" NPT

PLUG - square head, 3/4" magnetic

1шт.

12

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- hex head, 1/2" - 13 NC x 1-3/4"

4шт.

13

95-8

WASHER,1/2"

flat 1/2"

8шт.

14

92-8

LOCK WASHER,1/2"

4шт.

15

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

4шт.

16

L76532

FILTER

- oil screen

1шт.

17

D63875

PLUG

GAUGE - sight

2шт.

18

221-376

ELBOW,90 Degree, 3/8" NPT

- 90 degree, 3/8" NPT

1шт.

19

221-716

NIPPLE - 3/8" NPT x 3"

1шт.

20

L79834

VENT

VALVE - vent

1шт.

21

L79833

LARGE HOSE

HOSE - 3/8" (10 mm) ID x 46 " (1168 mm) long

1шт.

22

214-252

HOSE CLAMP,#08, 0.5" - 0.91", Type F Worm

CLAMP - hose

1шт.

23

L76747

STRAP

TIE STRAP - plastic

1шт.
