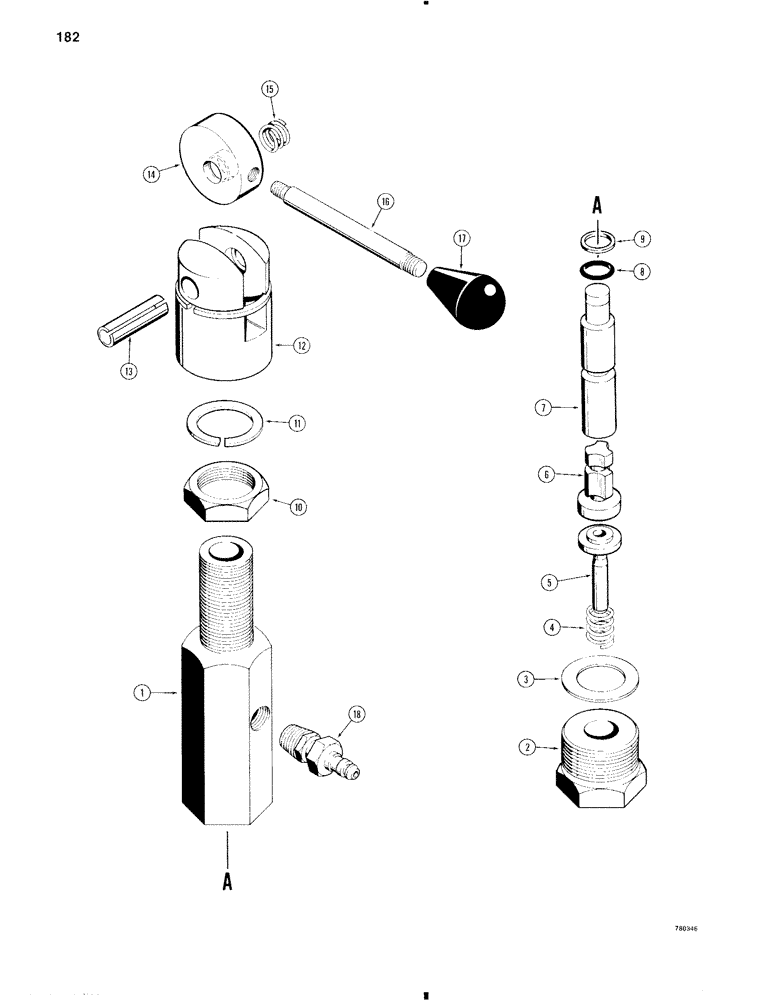

Запчасти Case W11 (182) - L73860 CLUTCH CUTOUT VALVE (08) - HYDRAULICS

L73860

VALVE

- clutch cutout, Incls. Ref. 1-18

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

2

NSS

NOT SOLD SEPARAT

PLUG - valve

1шт.

3

D46277

GASKET

- plug

1шт.

Part of Kit, P/N D51416

1шт.

4

A16674

SPRING

- valve

1шт.

Part of Kit, P/N D51416

1шт.

5

NSS

NOT SOLD SEPARAT

STEM - valve

1шт.

6

NSS

NOT SOLD SEPARAT

VALVE - internal

1шт.

L35762

ROD

SPOOL ASSEMBLY - valve, Incls. Ref. 7-9

1шт.

Part of Kit, P/N D51416

1шт.

7

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

8

A16679

O-RING

- spool

1шт.

9

L35305

RING

- backup

1шт.

10

129-167

JAM NUT,Jam, 5/8"-18, G5

JAM NUT - 5/8" - 18 NF

1шт.

11

193-14

LOCK WASHER,Ext Tooth, 5/8"

WASHER, LOCK, Ext Tooth, 5/8"

1шт.

A16682

CLEVIS COUPLING

CONTROL LEVER ASSEMBLY - valve, Incls. 12-17

1шт.

12

NSS

NOT SOLD SEPARAT

CLEVIS - control lever

1шт.

13

138-134

LOCK PIN,1/4" x 1", Slotted

PIN, 1/4" x 1", Slotted

1шт.

Part of Kit, P/N D51416

1шт.

14

A16686

CAM

- control lever

1шт.

Part of Kit, P/N D51416

1шт.

15

D51417

SPRING

- cam

1шт.

Part of Kit, P/N D51416

1шт.

16

NSS

NOT SOLD SEPARAT

CONTROL LEVER - valve

1шт.

17

A16688

KNOB

- control lever

1шт.

18

D46258

PLUG

VALVE - vent

1шт.

D51416

KIT

- Includes: ref. nos. 3, 4, 13, 14, 15, and L35762, also includes items not used

1шт.

in this valve

1шт.
