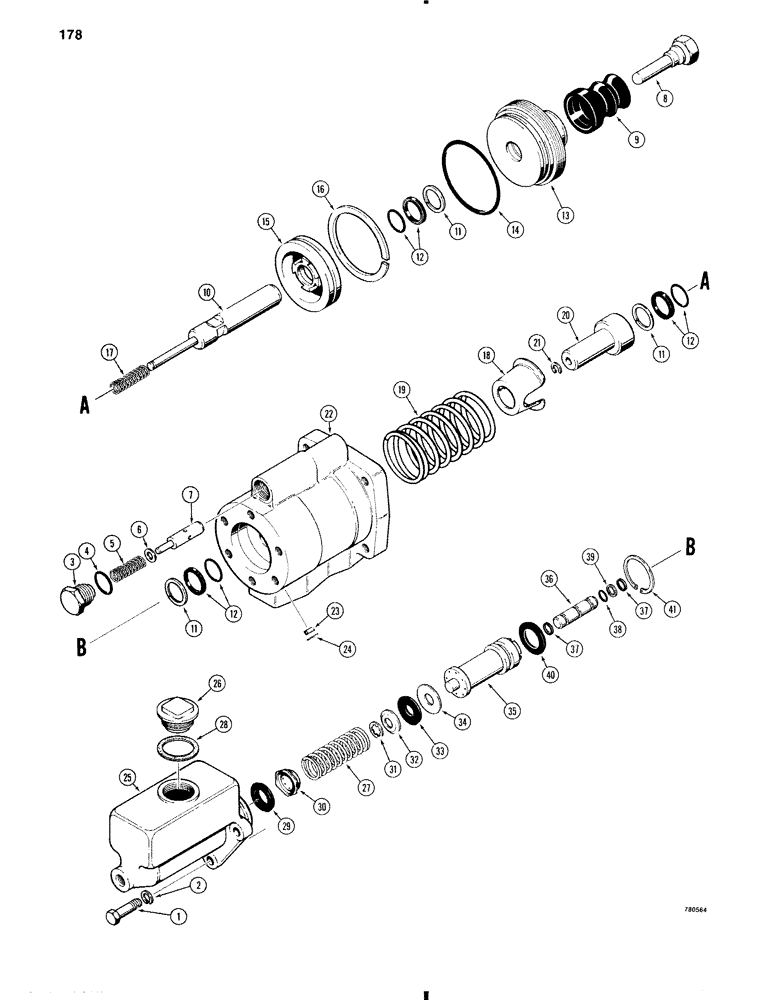

Запчасти Case W11 (178) - L79629 BRAKE ACTUATOR, MODELS WITH FRONT WHEEL BRAKES ONLY (07) - BRAKES

L79629

VALVE

BRAKE ACTUATOR - models with front wheel brakes only, Incls. Ref. 1-41

1шт.

1

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

3шт.

2

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

D82919

KNIFE SECTION

CHAMBER - oil

1шт.

3

NSS

NOT SOLD SEPARAT

PLUG - chamber, Incls. Ref. 3-24

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING - plug

1шт.

Part of Oil Chamber Repair Kit, P/N D82920

1шт.

5

D87151

SPRING

- piston

1шт.

6

D87147

SHIM

- piston

1шт.

7

NSS

NOT SOLD SEPARAT

PISTON - chamber, upper

1шт.

8

D87141

STEM

ROD - push, outer

1шт.

9

D72413

GROMMET

COVER - rubber

1шт.

Part of Oil Chamber Repair Kit, P/N D82920

1шт.

10

D87142

PISTON

ROD - inner

1шт.

11

NSS

NOT SOLD SEPARAT

RING - backup

3шт.

Part of Oil Chamber Repair Kit, P/N D82920

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL - two piece

3шт.

Part of Oil Chamber Repair Kit, P/N D82920

1шт.

13

D87143

PLUG

COVER - end

1шт.

14

NSS

NOT SOLD SEPARAT

O-RING - cover

1шт.

Part of Oil Chamber Repair Kit, P/N D82920

1шт.

15

D87144

PISTON

- chamber, lower

1шт.

16

NSS

NOT SOLD SEPARAT

RING - piston

1шт.

Part of Oil Chamber Repair Kit, P/N D82920

1шт.

17

D87145

SPRING

- inner

1шт.

18

D87146

RETAINER

- spring

1шт.

19

D87148

SPRING

- outer

1шт.

20

D87149

PISTON

ROD - actuator

1шт.

21

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

Part of Oil Chamber Repair Kit, P/N D82920

1шт.

22

NSS

NOT SOLD SEPARAT

HOUSING - chamber

1шт.

23

N6679

FITTING

PLUG - snubber

1шт.

24

N6678

RING, SNAP

RING - retaining

1шт.

D82918

MASTER CYLINDER

MASTER CYLINDER - brake, Incls. Ref. 25-40

1шт.

25

NSS

NOT SOLD SEPARAT

BODY - master cylinder

1шт.

26

A12888

FILLER CAP

CAP - master cylinder

1шт.

27

D87140

SPRING

- master cylinder

1шт.

D82921

PACKAGE, REPAIR

KIT - master cylinder repair, Incls. Ref. 28-41

1шт.

28

S114797

SEAL,31.75mm ID x 41.27mm OD x 1.59mm Thk

- cap

1шт.

29

NSS

NOT SOLD SEPARAT

SEAT - valve

1шт.

30

NSS

NOT SOLD SEPARAT

VALVE - master cylinder

1шт.

31

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

32

NSS

NOT SOLD SEPARAT

RETAINER - spring

1шт.

33

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

34

NSS

NOT SOLD SEPARAT

WASHER - backup

1шт.

35

NSS

NOT SOLD SEPARAT

PISTON - outer

1шт.

36

NSS

NOT SOLD SEPARAT

PISTON - inner

1шт.

37

NSS

NOT SOLD SEPARAT

SEAL - V-type

2шт.

38

S114827

O-RING,0.364" ID x 0.504" OD x 0.07"

- piston

1шт.

39

S114807

SEALING RING

RING - backup

1шт.

40

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

41

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

D82920

KIT

- oil chamber repair, Includes; ref. nos. 4, 9, 11, 12,14, 16, and 21

1шт.
