Запчасти Case W11 (176) - REAR WHEEL BRAKE SYSTEM (07) - BRAKES

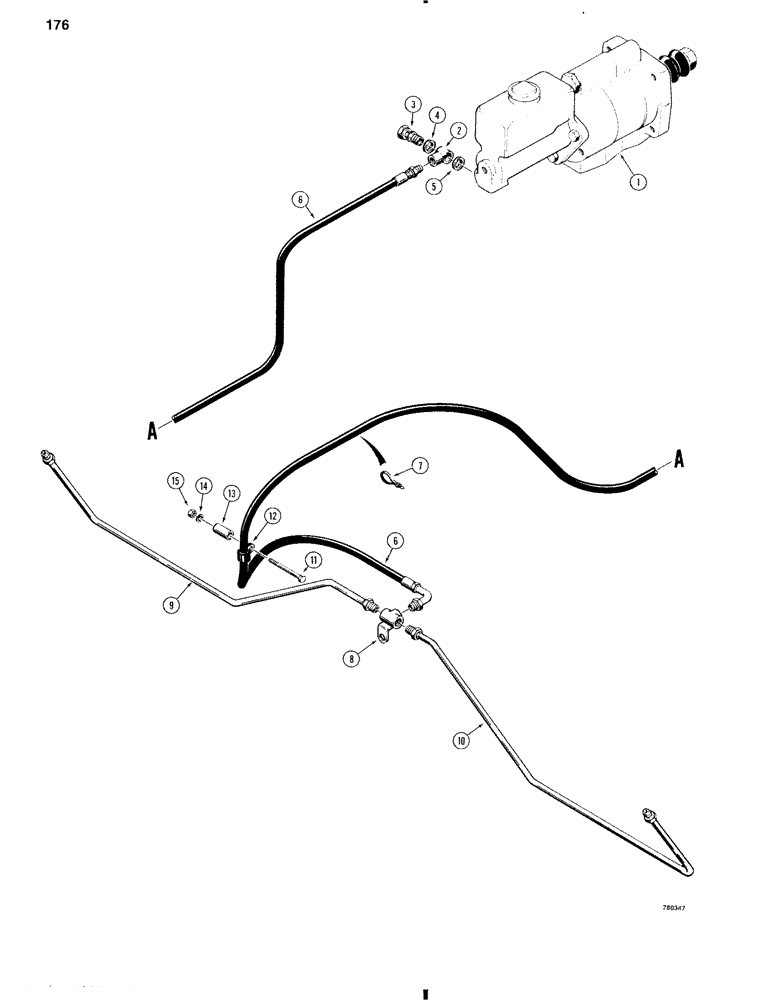

Схема запчастей Case W11 - (176) - REAR WHEEL BRAKE SYSTEM (07) - BRAKES

Артикул

Название

Примечание

Количество

1

L79630

HYDRAULIC VALVE

BRAKE ACTUATOR - used on models with both front and rear wheel

1шт.

brakes only, parts list figure 180

1шт.

2

A18531

FITTING

- special

1шт.

3

A12864

BOLT

- hollow

1шт.

4

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

- outer

1шт.

5

NLS

NO LONGER SERVICED

- inner

1шт.

6

L78472

HOSE ASSY.,4.78mm ID x 2591mm L

HOSE - 102" (2591 mm) long

1шт.

7

L76747

STRAP

TIE STRAP - hose

1шт.

8

L76365

FITTING

TEE - rear brake lines

1шт.

9

L76397

TUBE,0.25" OD

- to left-hand wheel

1шт.

10

L76395

TUBE,0.25" OD

- to right-hand wheel

1шт.

11

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex head, 3/8" - 16 NC x 2-1/2"

1шт.

12

49836

CLAMP

- hose

1шт.

13

G49622

SPACER,5/8" Tube x 1 7/16"

- clamp

1шт.

14

92-6

LOCK WASHER,3/8"

1шт.

15

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

Выбрано товаров: 16
