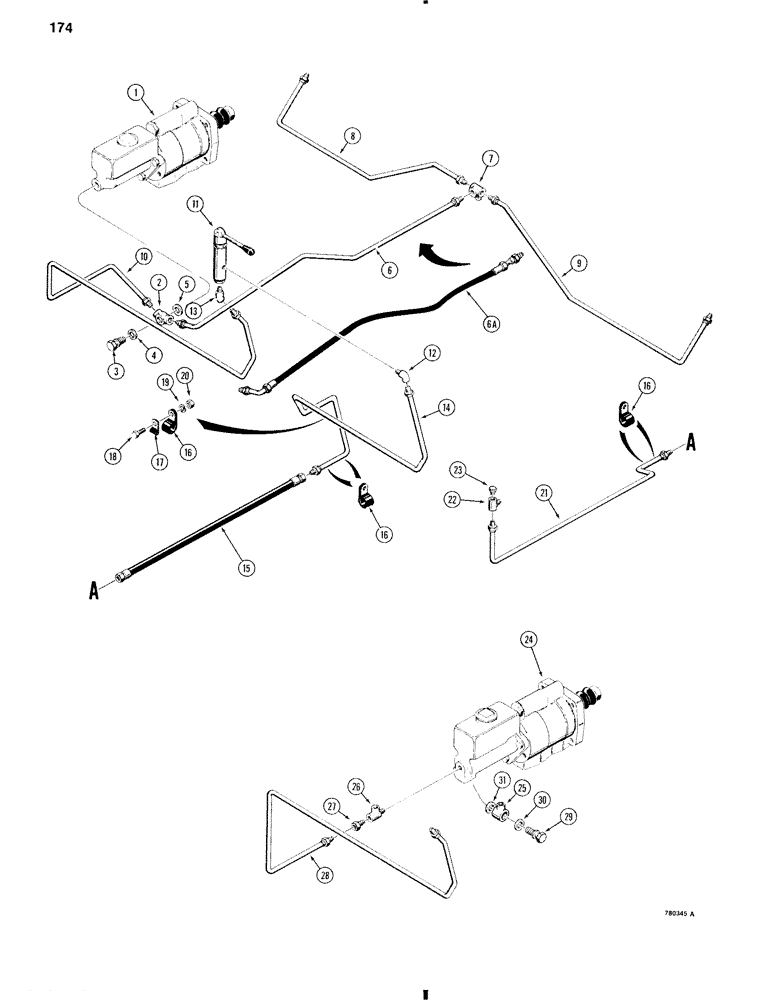

Запчасти Case W11 (174) - FRONT WHEEL BRAKE SYSTEM AND CLUTCH CUTOUT (07) - BRAKES

1

L79629

VALVE

BRAKE ACTUATOR - models with front wheel brakes only

1шт.

parts list figure 178

1шт.

2

A17386

FITTING

TEE - banjo

1шт.

3

A12864

BOLT

- hollow

1шт.

4

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

- outer

1шт.

5

NLS

NO LONGER SERVICED

- inner

1шт.

6

NSS

NOT SOLD SEPARAT

TUBE - front brake supply, if used, order item 6A

1шт.

6a

L103424

HOSE,4.78mm ID x 711.2mm L

- front brake supply, 30" (762 mm)

1шт.

7

L76365

FITTING

TEE - front brake lines

1шт.

8

L76397

TUBE,0.25" OD

- to left-hand wheel

1шт.

9

L76395

TUBE,0.25" OD

- to right-hand wheel

1шт.

10

L79024

TUBE,0.25" OD

- not used on models with rear wheel brakes, Ref. 28

1шт.

11

L73860

VALVE

- clutch cutout, parts list Ref. 182

1шт.

12

222-1022

ELBOW,90 Degree, 7/16"-24 Inv Fl x 1/8" NPT

- 90 degree

1шт.

13

222-1031

ELBOW,45 Degree, 7/16"-24 Inv Fl x 1/8" NPT

- 45 degree

1шт.

14

L100971

TUBE,0.25" OD

- from clutch cutout valve

1шт.

15

L79057

HOSE

- 20" (508 mm) long

1шт.

16

49851

SHIELD

- tube

5шт.

17

51200321

CLAMP

- tube, top

1шт.

18

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

19

92-6

LOCK WASHER,3/8"

1шт.

20

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

21

L78939

TUBE,0.25" OD

- to transmission

1шт.

22

222-1071

TEE,7/16"-24 Inv Fl x 1/8" NPT Br

- at transmission

1шт.

23

222-1062

PLUG,7/16"-24, Inv Fl

hex head 7/16"-24, Inv Fl

1шт.

24

L79630

HYDRAULIC VALVE

BRAKE ACTUATOR - models with front and rear wheel brakes, parts list Fig. 180, used on models with front and rear wheel brakes

1шт.

25

A18531

FITTING

- special, connects Ref. 6 or 6A to Ref. 24, used on models with front and rear wheel brakes

1шт.

26

217-1061

TEE,1/8" - 27 Female x 1/8" - 27 Male Run

- clutch cutout tube, used on models with front and rear wheel brakes

1шт.

27

222-1012

HYD CONNECTOR,7/16"-24 Inv Fl x 1/8" NPT

ADAPTER - straight, used on models with front and rear wheel brakes

1шт.

28

L79343

TUBE,0.25" OD

- to clutch cutout valve, see item 10 for models with front, used on models with front and rear wheel brakes, wheel brakes only, used on models with front and rear

1шт.

29

A12864

BOLT

- hollow, used on models with front and rear wheel brakes

1шт.

30

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

- outer, used on models with front and rear wheel brakes

1шт.

31

32260

GASKET - inner, used on models with front and rear wheel brakes

1шт.
