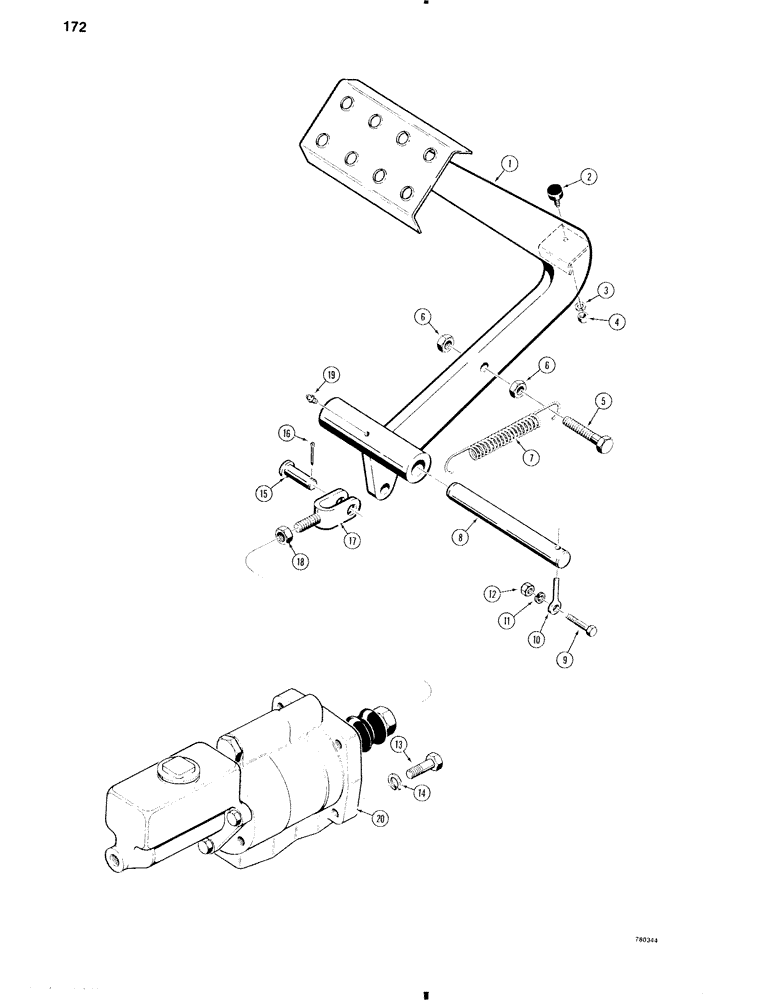

Запчасти Case W11 (172) - BRAKE PEDAL AND BRAKE ACTUATOR (07) - BRAKES

1

L78116

PEDAL

- brake

1шт.

2

A150668

SHOCK ABSORBER

BUMPER - pedal

1шт.

3

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

4

25-144

JAM NUT,Jam, 1/4"-20, G5

- hex, 1/4" - 20 NC

1шт.

5

113-265

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

6

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

7

L79209

SPRING

- pedal

1шт.

8

L76372

PIN,19.05mm OD x 157.48mm L

- pedal pivot

1шт.

9

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

1шт.

Ref #9 - If 5/16" it is 13-520

1шт.

10

213-23

EYE

PIN - lock

1шт.

11

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

Ref #11 - If 5/16" it is 92-5

1шт.

12

25-104

NUT,1/4"-20, G5

1шт.

Ref #12 - If 5/16" it is 25-105

1шт.

13

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

4шт.

14

92-7

LOCK WASHER,7/16"

4шт.

15

141-6

CLEVIS PIN,1/2" x 1.360"

- 1/2"

1шт.

16

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

17

A56132

FORK

CLEVIS - brake actuator

1шт.

18

25-158

JAM NUT,Jam, 1/2"-20, G5

JAM NUT - 7/16" - 14 NC

1шт.

19

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

GREASE FITTING - 1/8" straight, short, 1/8" NPT

1шт.

20

L79629

VALVE

BRAKE ACTUATOR - brake, models with front wheel brakes only, parts list Fig. 179

1шт.

20

L79630

HYDRAULIC VALVE

BRAKE ACTUATOR - models with front and rear wheel brakes, parts list Fig. 181

1шт.
