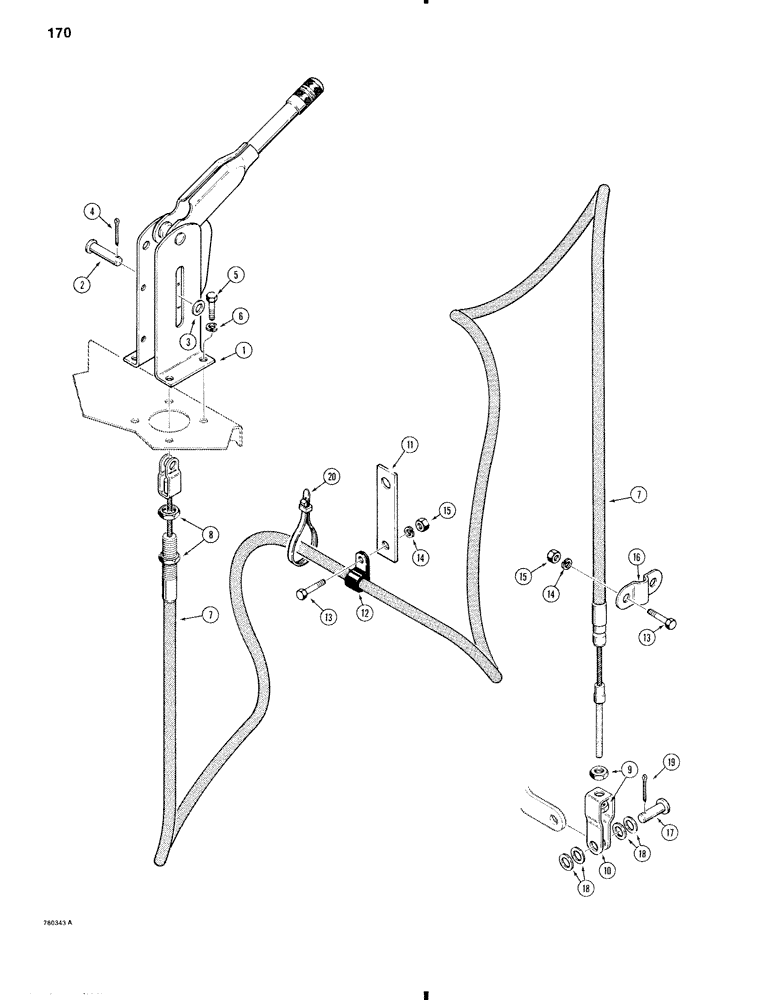

Запчасти Case W11 (170) - PARKING BRAKE (07) - BRAKES

1

L76701

LEVER

ASSEMBLY - parking brake, Incls. Ref. 2-4

1шт.

2

D82793

PIN

- lever

1шт.

3

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16"

1шт.

4

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

5

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

6

92-5

LOCK WASHER,5/16"

4шт.

L74521

CABLE

ASSEMBLY - parking brake, Incls. Ref. 7-10

1шт.

7

NSS

NOT SOLD SEPARAT

CABLE - parking brake

1шт.

8

129-146

NUT,Jam, 9/16"-12, G5

JAM NUT - 9/16" - 12 NC

2шт.

9

129-122

NUT,5/16"-24, G5

2шт.

10

L33999

CLEVIS

- cable

1шт.

11

L78769

BRACKET

PLATE - clamp mounting

1шт.

12

49836

CLAMP

- cable

1шт.

13

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

3шт.

14

92-6

LOCK WASHER,3/8"

3шт.

15

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

3шт.

16

A55980

CLAMP

- cable

1шт.

17

141-5

CLEVIS PIN,7/16" x 1.190"

- 7/16"

1шт.

18

95-7

WASHER,7/16"

- flat, 7/16"

4шт.

19

BER13226

SCREW

COTTER PIN - 3/32" x 3/4"

1шт.

20

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.
