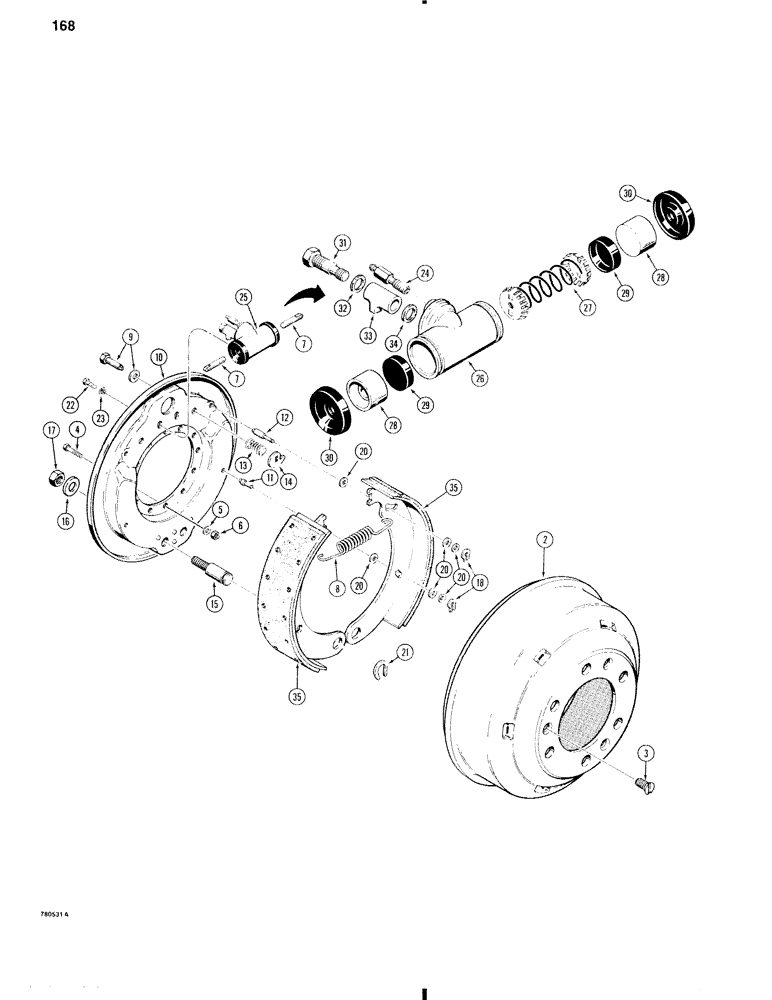

Запчасти Case W11 (168) - L110131 AXLE, BRAKE PARTS (07) - BRAKES

2

D82744

DRUM

- brake

2шт.

3

73-816

SCREW,Slotted Flat Hd, 1/2"-13 x 1"

- flat head, 1/2" - 13 NC x 1"

6шт.

4

28-924

BOLT,Hex, 9/16" - 18 x 1-1/2", Gr 8

- hex head, 9/16" - 18 NF x 1-1/2", grade 8

24шт.

5

L35233

WASHER

- special

24шт.

6

129-551

SPECIAL NUT,9/16"-18, G8

- hex, 9/16" - 18 NF

24шт.

D82754

BRAKE

ASSEMBLY - axle, Incls. Ref. 7-35

2шт.

7

D87200

ROD

- push

2шт.

8

L35486

SPRING

- shoe return

1шт.

D82773

PLATE

ASSEMBLY - backing, Incls. Ref. 9-17

1шт.

9

A12997

CAPTIVE WASHER SCREW

PIN AND WASHER - backing plate

2шт.

10

NSS

NOT SOLD SEPARAT

PLATE - backing

1шт.

11

A18271

PIN,11.11mm OD x 33.34mm L

- short

2шт.

12

A18272

GUIDE PIN

PIN - long

2шт.

13

A13023

SPRING

2шт.

14

A13201

SHOE

CAM

2шт.

15

A13024

PIN,29.39mm OD x 68.25mm L

- anchor

2шт.

16

L36067

WASHER

- special, 3/4"

2шт.

17

129-179

NUT,Hex, 3/4" - 16, Gr 5

2шт.

18

A13127

WASHER

RING - retaining

2шт.

20

D82771

WASHER

- special

1шт.

21

A13126

RING, SNAP,22.23mm ID x 33.34mm OD x 2.278mm Thk

RING - retaining

2шт.

22

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

23

92-6

LOCK WASHER,3/8"

2шт.

24

A12924

SCREW,7/16" - 20

- vent

1шт.

25

A12985

CYLINDER

WHEEL CYLINDER ASSEMBLY - brake, Incls. Ref. 26-30

1шт.

26

NSS

NOT SOLD SEPARAT

BODY - wheel cylinder

1шт.

27

A13043

SPRING

- wheel cylinder

1шт.

28

A13044

PISTON ASSY.

PISTON - wheel cylinder

2шт.

A12865

KIT

- repair, wheel cylinder, Incls. Ref. 29 & 30

1шт.

29

NSS

NOT SOLD SEPARAT

CUP - piston

2шт.

30

NSS

NOT SOLD SEPARAT

BOOT - cylinder

2шт.

31

A12864

BOLT

- special

1шт.

32

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

- bolt

1шт.

33

D82770

VALVE

FITTING - special

1шт.

34

NLS

NO LONGER SERVICED

- fitting

1шт.

35

D82774

SHOE

AND LINING - brake

2шт.

Ref #35 - (One Shoe and Lining Assy Only) (Lining is bonded to shoe, not rivited)

1шт.
