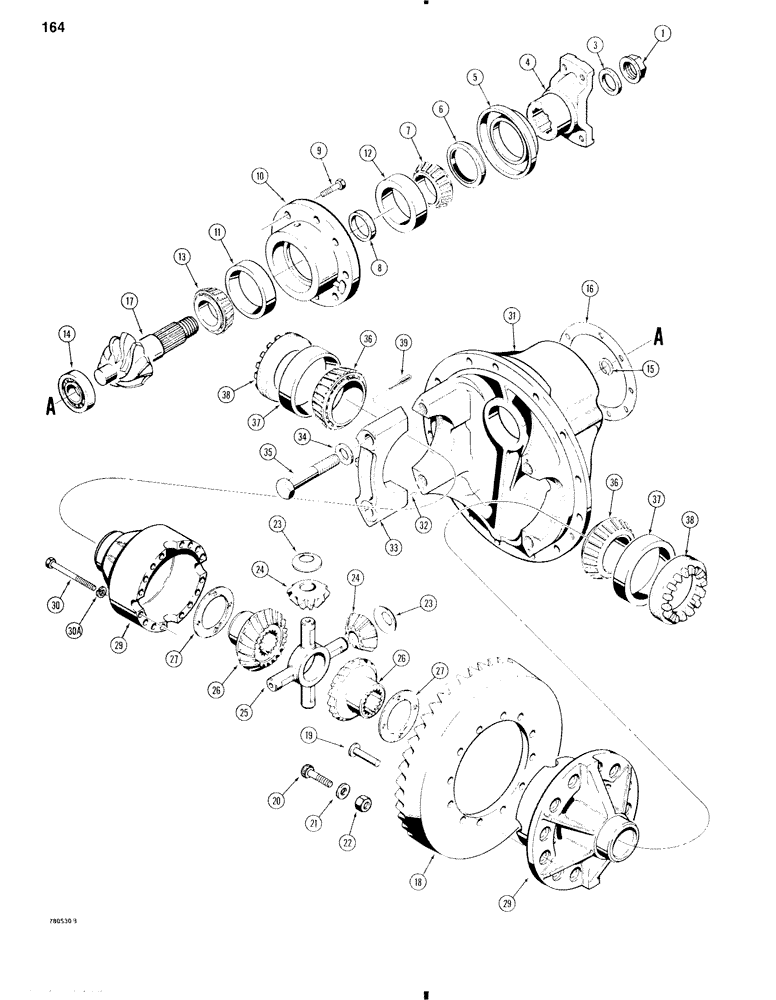

Запчасти Case W11 (164) - L110131 AND L110132 AXLE, DIFFERENTIAL (06) - POWER TRAIN

D82730

CARRIER

DIFFERENTIAL ASSEMBLY - axle, Incls. Ref. 1-39

1шт.

1

S113912

LOCK NUT

- special

1шт.

2

RESERVED

1шт.

3

S113914

WASHER

- special

1шт.

N7630

YOKE

ASSEMBLY - axle, Incls. Ref. 4 & 5

1шт.

4

NSS

NOT SOLD SEPARAT

YOKE - axle

1шт.

5

S113924

SLINGER

SHIELD - seal

1шт.

6

S113920

OIL SEAL,63.12mm ID x 98.55mm OD x 9.53mm Thk

- pinion shaft

1шт.

7

S113921

TAPERED BEARING

- pinion shaft

1шт.

8

D82755

SHIM,.234" Thk

(5.943 mm) .234" Thk

1шт.

8

D82756

SHIM,.235" Thk

(5.969 mm) .235" Thk

1шт.

8

D82757

SHIM,.236" Thk

(5.994 mm) .236" Thk

1шт.

8

D82758

SHIM,.237" Thk

(6.019 mm) .237" Thk

1шт.

8

D82759

SHIM,.238" Thk

(6.045 mm) .238" Thk

1шт.

8

D82760

SHIM,.239" Thk

(6.070 mm) .239" Thk

1шт.

8

D82761

SHIM,.240" Thk

(6.096 mm) .240" Thk

1шт.

8

D82762

SHIM,.247" Thk

(6.273 mm) .247" Thk

1шт.

8

D82763

SHIM,.254" Thk

(6.451 mm) .254" Thk

1шт.

8

D82764

SHIM,.261" Thk

(6.629 mm) .261" Thk

1шт.

8

D82765

SEAL

SHIM - .268" (6.807 mm)

1шт.

8

D82766

SHIM,.275" Thk

(6.985 mm) .275" Thk

1шт.

8

D82767

SHIM,.282" Thk

(7.162 mm) .282" Thk

1шт.

8

D82768

SHIM,.289" Thk

(7.340 mm) .289" Thk

1шт.

8

D82769

SHIM,.296" Thk

(7.518 mm) .296" Thk

1шт.

9

26-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 8

- hex head, 7/16" - 14 NC x 1-1/2", grade 8

8шт.

D82732

CAGE

ASSEMBLY - bearing cup, Incls. Ref. 10-12

1шт.

10

NSS

NOT SOLD SEPARAT

CAGE - bearing cup

1шт.

11

A138433

BEARING CUP

CUP - bearing

1шт.

12

A9840

BEARING CUP

CUP - bearing

1шт.

13

L30032

ROLLER BEARING

TAPERED ROLLER BEARING - pinion shaft

1шт.

14

D82735

ROLLER BEARING,35mm ID x 72mm OD x 20.64mm W

- pinion shaft

1шт.

15

A15442

LOCK

RING - retaining

1шт.

16

A12958

SHIM,.003" Thk

(.0762 mm) .003" Thk

1шт.

16

A12956

SHIM,.005" Thk

(.1270 mm) .005" Thk

1шт.

16

A12957

SHIM,.010" Thk

(.2540 mm) .010" Thk

1шт.

D82737

GEAR

SET - ring, Incls. Ref. 17 & 18

1шт.

17

NSS

NOT SOLD SEPARAT

PINION GEAR - differential

1шт.

18

NSS

NOT SOLD SEPARAT

RING GEAR - differential

1шт.

19

151-256

RIVET - gear to case, alternate to Ref. 20 - 22

12шт.

20

S113908

BOLT

BOLT - gear to case, alternate to Fig. 19

12шт.

21

L30737

WASHER

- special, used with Fig. 20

12шт.

22

131-1236

LOCK NUT,5/8"-18, GC

NUT - hex, self-locking, 5/8" - 18 NF, used with Fig. 20

12шт.

23

A25140

WASHER

THRUST WASHER - pinion gear

4шт.

24

A25131

PINION

GEAR - differential

4шт.

25

A25143

SPIDER ASSY.

SPIDER - differential

1шт.

26

D82736

GEAR

SIDE GEAR - differential

2шт.

27

A25142

WASHER

THRUST WASHER - side gear

2шт.

S236220

CASE

ASSEMBLY - differential, Incls. Ref. 28-30A

1шт.

28

NSS

NOT SOLD SEPARAT

CASE - plain half

1шт.

29

NSS

NOT SOLD SEPARAT

CASE - flange half

1шт.

30

NSS

NOT SOLD SEPARAT

BOLT - special

8шт.

30a

NSS

NOT SOLD SEPARAT

WASHER - lock, special

8шт.

D82731

CAP ASSY.

CARRIER AND CAP - differential, Incls. Ref. 31-35

1шт.

31

NSS

NOT SOLD SEPARAT

CARRIER - differential

1шт.

32

A15443

DOWEL

PIN - bearing cap

2шт.

33

NSS

NOT SOLD SEPARAT

CAP - bearing

2шт.

34

A16783

WASHER

- special

4шт.

35

L34037

BOLT

- special

4шт.

36

L33297

ROLLER BEARING

TAPERED ROLLER BEARING - case

2шт.

37

L33303

BEARING CUP

CUP - bearing

2шт.

38

S113916

NUT

- special

2шт.

39

L30029

PIN

COTTER PIN - special

2шт.
