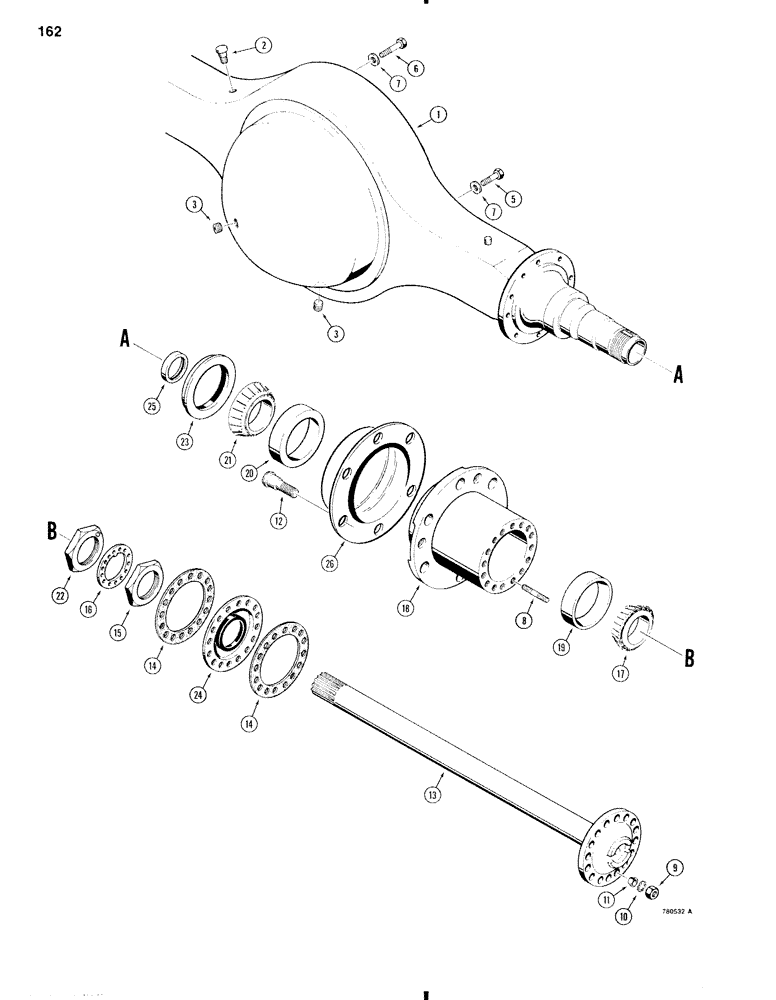

Запчасти Case W11 (162) - L110131 AND L110132 AXLE, AXLE HOUSING (06) - POWER TRAIN

1

N8125

HOUSING

- axle

1шт.

2

D57822

BREATHER

- housing

1шт.

3

221-25

PLUG,Sq Soc, 3/4"-14 NPTF

- square socket, 3/4" NPT

2шт.

4

M20704

ADHESIVE

FORM-IN-PLACE GASKET - tube, 3 oz. (3206 ml), not shown

1шт.

5

26-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 8

- hex head, 1/2" - 13 NC x 1-3/8", grade 8

10шт.

6

26-832

BOLT,Hex, 1/2" - 13 x 2", Gr 8

- hex head, 1/2" - 13 NC x 2", grade 8

4шт.

7

D47366

WASHER

- hardened

14шт.

8

D82739

STUD

- hub

32шт.

9

129-545

NUT,1/2"-20, G8

32шт.

10

193-12

LOCK WASHER,Ext Tooth, 0.52" ID x 0.89" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 1/2"

32шт.

11

D82753

SLEEVE

- stud

32шт.

12

D82740

STUD

- axle, Serial Range: shaft-hub

12шт.

13

D82751

SHAFT

- axle

2шт.

Ref #13 - (34.59" Long)

1шт.

14

D82752

GASKET

- axle shaft

4шт.

15

D82750

NUT

- outer

2шт.

16

D82749

WASHER

- lock

2шт.

17

A37160

ROLLER BEARING

TAPERED ROLLER BEARING - outer

2шт.

Ref #17 - (I.D. 2.625" Width 1.183")

1шт.

D82738

HUB

ASSEMBLY - axle, Incls. Ref. 18-20

2шт.

18

NSS

NOT SOLD SEPARAT

HUB - axle

1шт.

19

A7890

BEARING CUP,112.738 mm OD x 23.81 mm

CUP - outer

1шт.

20

A7892

BEARING, CUP

CUP - inner

1шт.

21

N14208

BEARING CONE

TAPERED ROLLER BEARING - inner (Replaces E15010)

2шт.

22

D82748

NUT

- inner

2шт.

23

D82745

OIL SEAL

- inner

2шт.

24

D82746

OIL SEAL

- outer

2шт.

25

D82747

WIPER

- axle shaft

2шт.

26

D82743

SLINGER

- used on L110131 Axle with brakes only

2шт.
