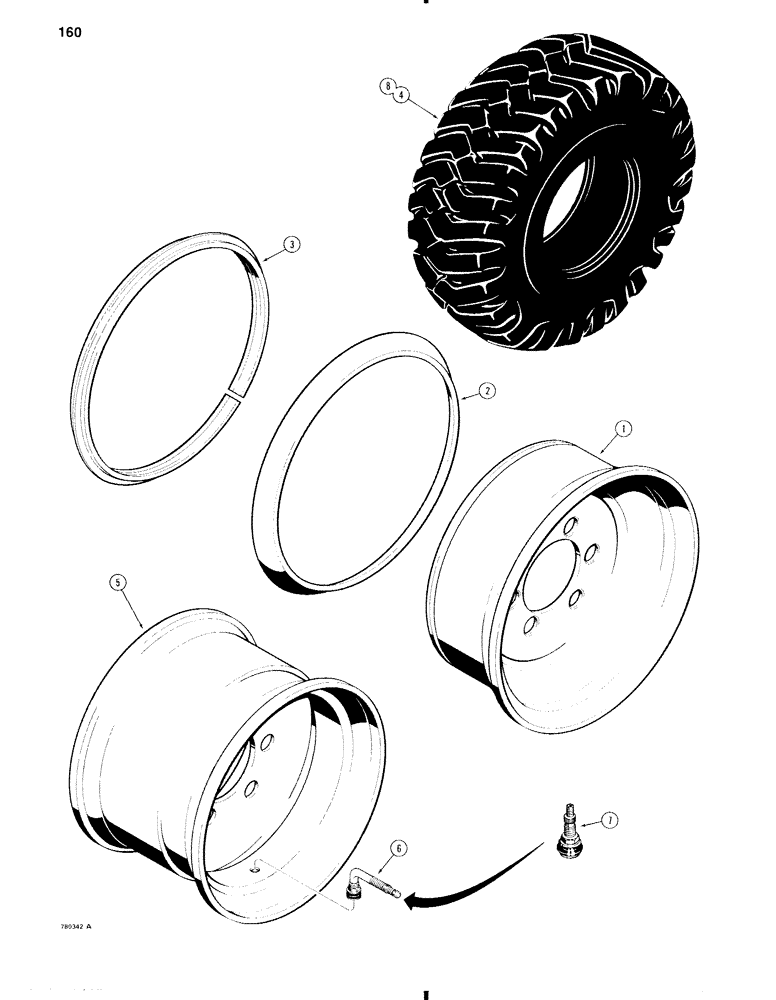

Запчасти Case W11 (160) - RIMS AND TIRES (06) - POWER TRAIN

1

L74417

RIM - wheel, for 9.00 x 20 tires with tube

4шт.

2

L74422

RING - side, for 9.00 x 20 tires with tube

4шт.

3

L74423

RING - lock, for 9.00 x 20 tires with tube

4шт.

4

REF

INSTRUCTION

TIRE AND TUBE - order from tire dealers, for 9.00 x 20

4шт.

5

L74418

WHEEL

- rim, for 15 X 19.5 tubeless tires

4шт.

6

L46142

VALVE

STEM - air, 90 degree, if used, for 15 X 19.5 tubeless tires

4шт.

7

A20058

VALVE STEM

- Air, straight, if used, for 15 X 19.5 tubeless tires

4шт.

8

REF

INSTRUCTION

TIRE - tubless, order from tire dealers, for 15 X 19.5

4шт.
