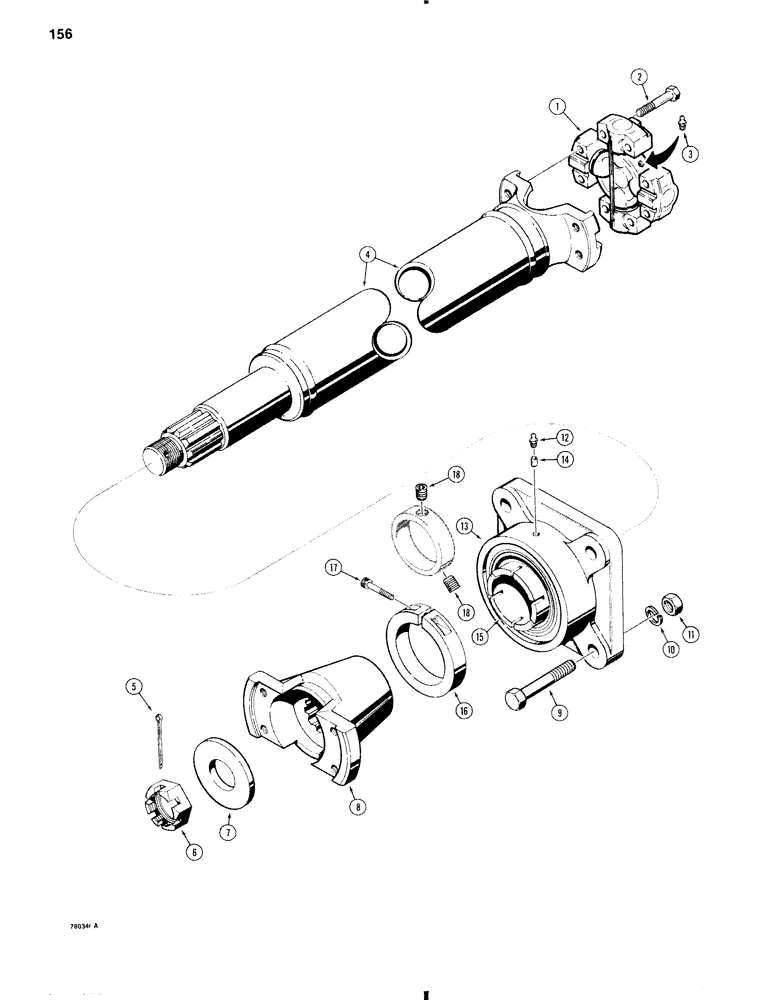

Запчасти Case W11 (156) - FRONT DRIVE SHAFT AND BEARING (06) - POWER TRAIN

L77276

SHAFT

DRIVE - front, to axle, Incls. D80329 and Ref. 1-3

1шт.

D80329

JOINT

SPIDER AND BEARING ASSEMBLY - drive shaft

1шт.

1

NSS

NOT SOLD SEPARAT

SPIDER AND BEARING - drive shaft

1шт.

2

A17298

BOLT,Hex, 3/8" x 1 11/16"

Special

8шт.

3

219-417

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

4

D80542

TUBE

Drive shaft

1шт.

5

132-59

PIN

COTTER, 1/8" x 2-1/2"

1шт.

6

L33629

SPECIAL NUT

Hex slotted, special

1шт.

7

D28266

WASHER

Special

1шт.

8

L74590

FORK

YOKE - drive shaft

1шт.

9

13-928

BOLT,Hex, 9/16" - 12 x 1-3/4", Gr 5

4шт.

10

92-9

BEARING WASHER,9/16"

4шт.

11

25-109

NUT,9/16"-12, G5

4шт.

L106070

FLANGED BEARING

SUPPORT ASSEMBLY - front drive shaft, uses set screws, Incls. Ref. 12-18

1шт.

12

219-1

LUBE NIPPLE,1/8" - 27 NPTF

NPT

1шт.

13

NSS

NOT SOLD SEPARAT

HOUSING - bearing, may have holes for set screws instead of slots

1шт.

14

L33788

AXLE PIN

Lock

1шт.

L33787

KIT

Repair, bearing and collar, converts from set screws to collar arrangement, Incls. Ref. 15-17

1шт.

15

NSS

NOT SOLD SEPARAT

BEARING AND SEAL - center bearing

1шт.

16

L33789

COLLAR

Bearing, if used

1шт.

17

61-416

HEX SOC SCREW,1/4"-20 x 1"

If used

1шт.

18

84-65

SET SCREW,Hex Soc, 3/8"-24 x 5/16"

If used

2шт.
