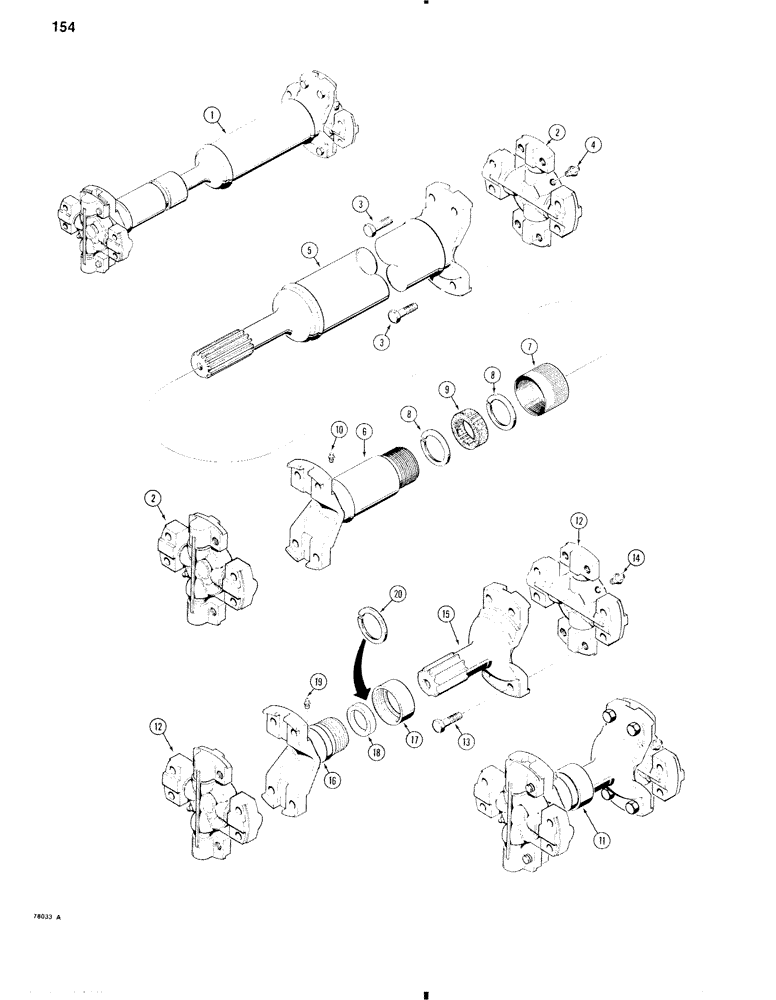

Запчасти Case W11 (154) - REAR AND MIDDLE DRIVE SHAFTS (06) - POWER TRAIN

1

L74588

SHAFT

DRIVE SHAFT - middle, transmission to front axle drive shaft, Incls.D80329 and Ref. 2-10

1шт.

D80329

JOINT

SPIDER AND BEARING ASSEMBLY - drive shaft, Incls Ref 2-4

2шт.

2

NSS

NOT SOLD SEPARAT

SPIDER AND BEARING - drive shaft

1шт.

3

A17298

BOLT,Hex, 3/8" x 1 11/16"

- special

8шт.

4

219-417

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight, 1/4" - 28 NF taper

1шт.

5

D80541

TUBE,3" DIA x 20.375" L

YOKE AND TUBE - external spline

1шт.

D73676

YOKE

AND TUBE ASSEMBLY - internal spline, Incls. Ref. 6-10

1шт.

6

NSS

NOT SOLD SEPARAT

YOKE AND TUBE - internal spline

1шт.

7

A19923

CAP

- dust

1шт.

8

D73712

WASHER

- backup

2шт.

9

D73711

FELT SEAL

- felt

1шт.

10

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8" NPT

1шт.

11

L77277

SHAFT

DRIVE SHAFT - rear, transmission to rear axle, Incls. D80329 and Ref. 12-14

1шт.

D80329

JOINT

SPIDER AND BEARING ASSEMBLY - drive shaft, rear, Incls. Ref. 12-14

2шт.

12

NSS

NOT SOLD SEPARAT

SPIDER AND BEARING - drive shaft, rear

1шт.

13

A17298

BOLT,Hex, 3/8" x 1 11/16"

- special, rear drive shaft

8шт.

14

219-417

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight, 1/4" - 28 NF taper, rear drive shaft

1шт.

15

D80543

YOKE

AND TUBE - external spline, rear drive shaft

1шт.

N6747

FORK

YOKE AND TUBE ASSEMBLY - internal spline, rear drive shaft, Incls. Ref. 16-20

1шт.

16

NSS

NOT SOLD SEPARAT

YOKE AND TUBE - internal spline, rear drive shaft

1шт.

17

D80545

CAP

- dust, rear drive shaft

1шт.

18

D80546

FELT SEAL

- felt, rear drive shaft

1шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT, rear drive shaft

1шт.

20

D73712

WASHER

- backup, if used, rear drive shaft

1шт.
