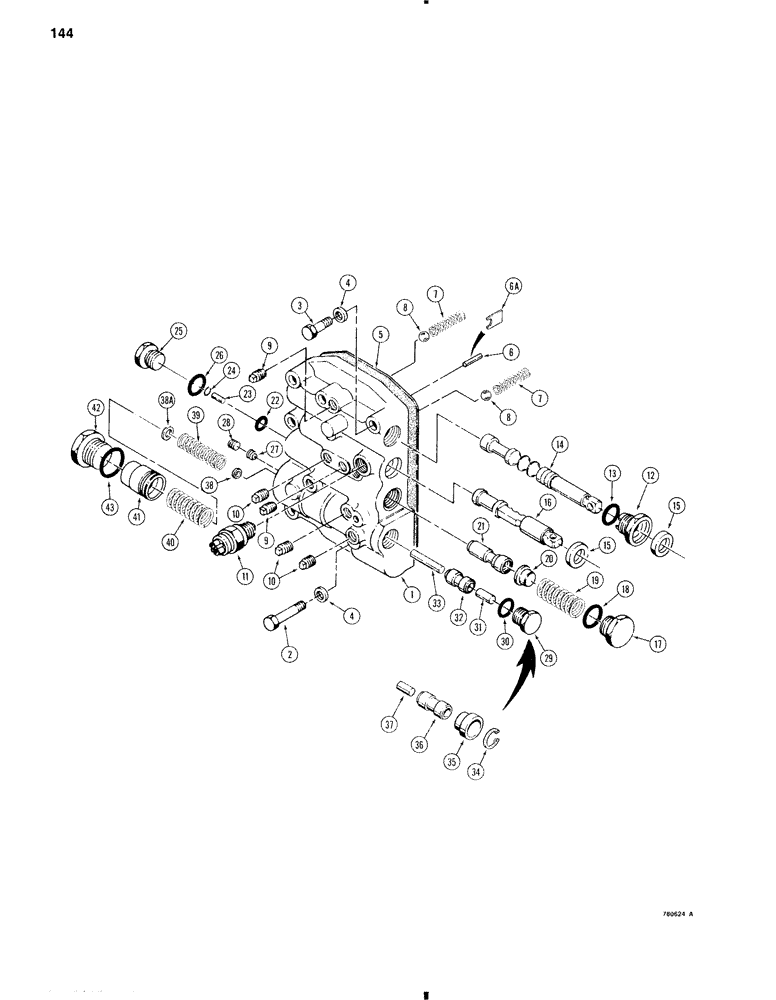

Запчасти Case W11 (144) - TRANSMISSION, CONTROL VALVE (06) - POWER TRAIN

N8249

VALVE

CONTROL VALVE ASSEMBLY - transmission, Incls. Ref. 1-43

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - control valve

1шт.

2

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- hex head, 3/8" - 16 NC x 2-3/4", if used

3шт.

2

13-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

If used Hex, 5/16"-18 x 2 3/4", G5

3шт.

3

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

If used Hex, 3/8"-16 x 2 1/4", G5

7шт.

3

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

if used Hex, 5/16"-18 x 2 1/4", G5

7шт.

4

195-457

WASHER,.328" x 9/16" x .065"

- flat, 5/16", aircraft type

10шт.

5

D82956

GASKET

-, Serial Range: valve-transmission

1шт.

6

D83051

PIN

DOWEL PIN - stop, if used

1шт.

6a

N7795

FORK

- stop, if used

1шт.

7

D82937

SPRING

- detent

2шт.

8

211-361

BALL

- detent, 3/8", steel

2шт.

9

D83055

PLUG

- square head, 1/8" NPT, replace one with clutch pressure switch

1шт.

10

221-11

PLUG,Sq Hd, 1/8"-27

- square head, 1/8" NPT, replace one with backup alarm switch on some machines

1шт.

11

D83020

SWITCH

- neutral start

1шт.

12

D82939

PLUG

RETAINER - spool

1шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- retainer

1шт.

14

N6134

STEM

SPOOL - range

1шт.

15

D83018

GASKET

SEAL - spool, National No. 471466

2шт.

16

D82966

STEM

SPOOL - direction, forward and reverse, used before transmission, Serial Range: -7910035795

1шт.

16

N7494

KNIFE SECTION

SPOOL - direction, forward and reverse, used on transmission, Start Serial: 7910035795

1шт.

17

D82943

PLUG

- hex head

1шт.

18

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

- plug

1шт.

19

D82963

SPRING

- clutch cutout spool

1шт.

20

D82942

GUIDE

RETAINER - spring

1шт.

21

N7993

VALVE

SPOOL - clutch cutout

1шт.

22

A18414

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

- spool

1шт.

23

N7991

PIN

- clutch cutout spool

1шт.

24

D83052

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

- small

1шт.

25

N7992

PLUG

- hex head

1шт.

26

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- plug

1шт.

REF

INSTRUCTION

CONTROL VALVE ASSEMBLY

1шт.

27

D83008

PLUG

- inner, with orifice

1шт.

28

D83023

PLUG

- hex socket head, outer

1шт.

29

D82941

PLUG

- hex head, if used

1шт.

30

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- plug, if used

1шт.

31

D83053

PIN

- regulator spool, if used

1шт.

N6131

VALVE

SPOOL ASSEMBLY - regulator, if used, Incls. Ref. 32 & 33

1шт.

32

D82964

VALVE

SPOOL - regulator, if used

1шт.

33

D83054

PIN

- spool

1шт.

34

N7850

OIL SEAL

SNAP RING - seat retaining, if used

1шт.

35

N7798

SEAT

- regulator spool, if used

1шт.

N7796

VALVE

SPOOL ASSEMBLY - regulator, if used, Incls. Ref. 36 & 37

1шт.

36

NSS

NOT SOLD SEPARAT

SPOOL - regulator, if used

1шт.

37

D83054

PIN

- spool

1шт.

38

D82965

SPACER

- not used when 38A is used

3шт.

38a

N7797

SPACER

- not used when 38 is used

3-5шт.

39

D82986

SPRING

- inner

1шт.

40

D82988

SPRING

- outer

1шт.

41

D82987

PISTON

- valve

1шт.

42

D82938

PLUG

- hex head

1шт.

43

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- plug

1шт.
