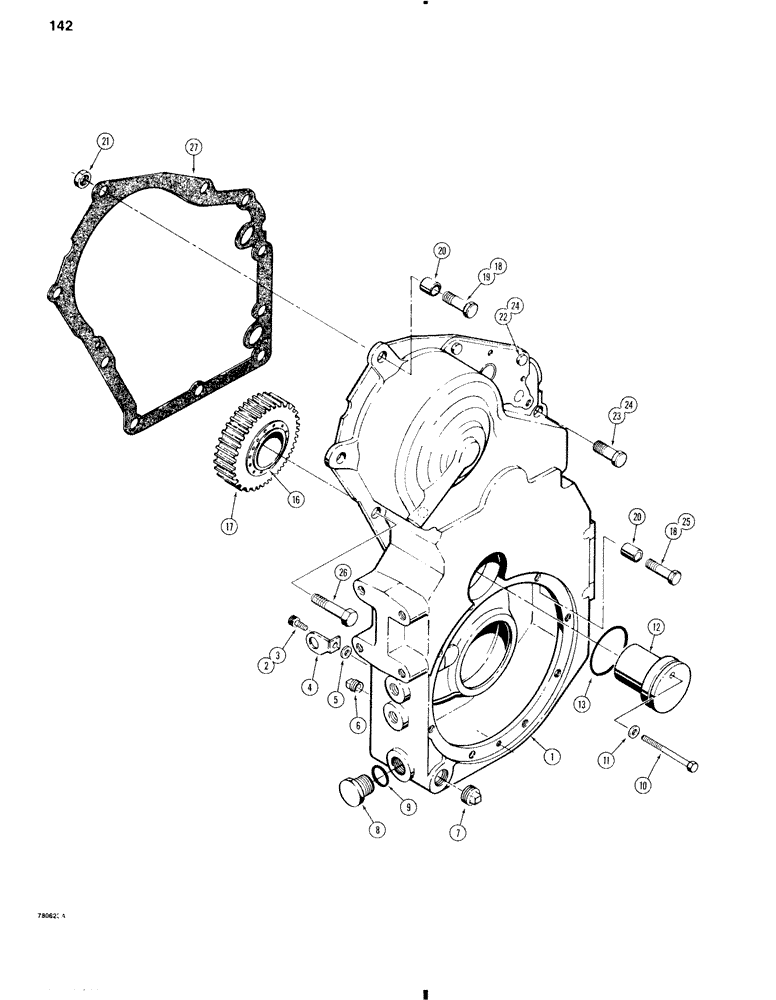

Запчасти Case W11 (142) - TRANSMISSION, FRONT HOUSING AND IDLER (06) - POWER TRAIN

1

D82990

HOUSING - front, used on transmissions identified as Spec 7297, 7297A, or 7297B only

1шт.

1

N7866

HOUSING

- front, used on transmissions identified as Spec 7297C, 7297A, or 7297B only

1шт.

2

165-180

HEX SOC SCREW,1/4" - 20 x 7/8"

BOLT - hex socket head, 1/4" - 20 NC x 7/8", plated, if used

1шт.

2

164-532

BOLT - hex socket button head, 1/4" - 20 NC x 1", if used Hex Soc But Hd, 1/4"-20 x 1"

1шт.

3

D83048

WASHER - sealing, if used

1шт.

4

D82979

BRACKET - tube, if used

1шт.

5

195-18

WASHER,1/4"

- flat, , if used 1/4"

1шт.

6

221-21

DRAIN PLUG,Sq Soc, 1/4"-18 NPTF

PLUG - square head, 1/4" NPT

1шт.

7

221-27

DRAIN PLUG,Sq Soc, 1 1/4"-11 1/2, NTPF

PLUG - square head, 1-1/4" NPT

1шт.

8

D83197

PLUG

- hex head, includes screen filter, not shown, Incls. Ref. 9

1шт.

9

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- plug

1шт.

10

13-888

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5

1шт.

11

D83050

WASHER

- sealing

1шт.

12

D82973

SHAFT

- idler gear

1шт.

13

G10389

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

- shaft

1шт.

16

D83017

BEARING

- idler gear, double tapered roller assembly

1шт.

17

D82975

GEAR

IDLER GEAR - transmission

1шт.

18

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1-3шт.

19

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- hex head, 1/2" - 13 NC x 1-3/4", if used

2шт.

20

D82940

BUSHING

- guides

2шт.

21

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

2шт.

22

13-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5, If used

2шт.

23

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4-5шт.

24

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- hex head, 1/2" - 13 NC x 2-1/2", if used

3шт.

25

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- hex head, 1/2" - 13 NC x 2-1/4", if used

2шт.

26

13-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

2шт.

27

D82949

GASKET

- housing

1шт.
