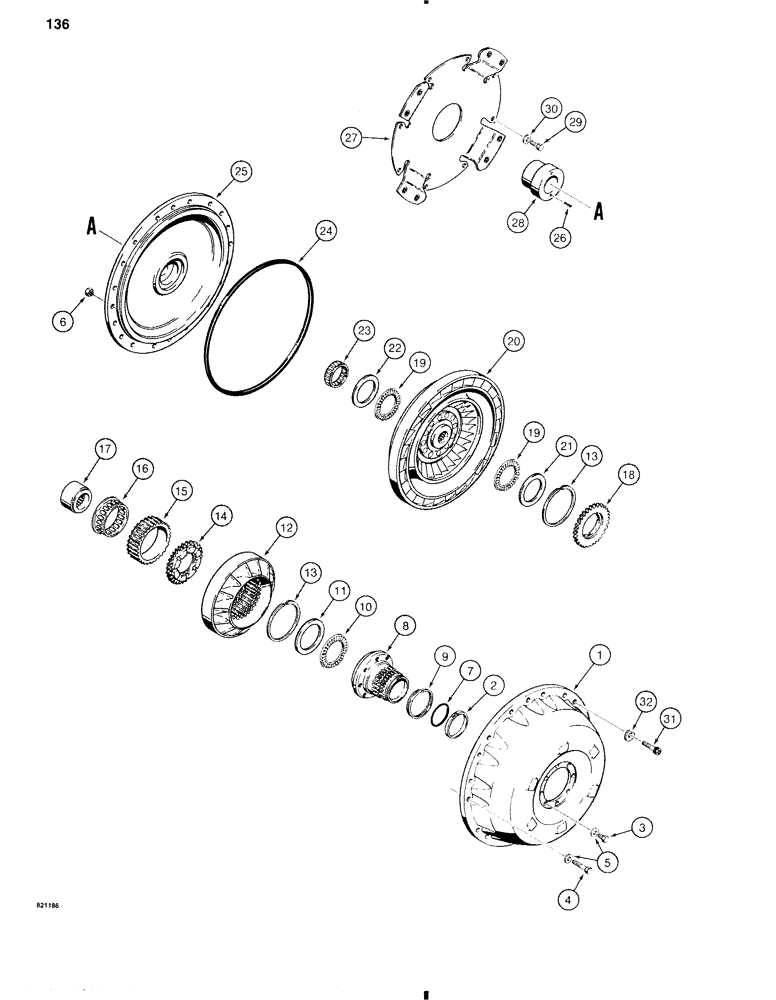

Запчасти Case W11 (136) - TRANSMISSION, FUNK MFG. TORQUE CONVERTER (06) - POWER TRAIN

N7878

CONVERTER

TORQUE CONVERTER - Funk manufactured, Incls. Ref. 1-26

1шт.

Before ordering torque converter parts, it is important to determine whether the torque converter is manufactured by Borg and Beck (Figure 134) or Funk Mfg. (Figure 136). Note different impeller appearance, internal clutch parts and flex plate on each torque converter.

1шт.

1

N7879

IMPELLER

- torque converter

1шт.

2

D82935

SEAL

SEAL - small

1шт.

3

N7861

BOLT

- special place, 5/16" - 18 NC x 1/2"

8шт.

4

S114483

BOLT

- special place, 5/16" - 18 NC x 1-1/4"

12шт.

5

N7848

WASHER

- flat, 5/16", special

20шт.

6

N7847

NUT

- hex, 5/16" - 18 NC

12шт.

7

D41420

O-RING,0.07" Thk x 3.989" ID, -45, Cl 5, 75 Duro

- hub

1шт.

8

N7853

HUB

- torque converter

1шт.

9

N7845

OIL SEAL

RING - retaining

1шт.

10

S108936

THRUST BEARING,THRUST

NEEDLE BEARING - hub

1шт.

11

N7862

RACE

- needle bearing

1шт.

12

N7852

STATOR - torque converter

1шт.

13

N7846

RING, SNAP

SNAP RING - clutch

2шт.

14

N7863

RETAINER

- clutch

1шт.

15

N7857

RACE

HOUSING - clutch

1шт.

16

S108997

CLUTCH

- torque converter

1шт.

17

N7856

RACE

HUB - clutch

1шт.

18

N7855

RETAINER

- clutch

1шт.

19

N7858

NEEDLE BEARING

- turbine

2шт.

20

N7880

TURBINE

- torque converter

1шт.

21

N7864

RACE

- needle bearing

1шт.

22

A66479

RING

RACE - outer bearing

1шт.

23

N7859

BEARING

- outer

1шт.

24

N7860

SEAL

- square section

1шт.

25

N7854

COVER

- torque converter

1шт.

26

138-53

LOCK PIN,1/8" x 1/2", Slotted

Pin, 1/8" x 1/2", Slotted

2шт.

27

N7877

PLATE

FLEX PLATE - torque, Serial Range: converter-engine

1шт.

28

N9499

SLEEVE

- pilot (Replaces N7784)

1шт.

29

121-205

LOCK BOLT,Lock Place, Hex, 3/8" - 16 x 3/4", Gr 8

BOLT - hex head, 3/8" - 16 NC x 3/4"

8шт.

Hardware, Ref. 29, 30, 31 and 32, that comes with transmission is to be discarded and updated with Ref. 29, 30, 31 and 32 as listed.

1шт.

30

R14978

WASHER,9.91mm ID x 22.23mm OD x 1.52mm Thk

- hardened Figures 134 and 136

8шт.

Hardware, Ref. 29, 30, 31 and 32, that comes with transmission is to be discarded and updated with Ref. 29, 30, 31 and 32 as listed.

1шт.

31

166-526

12 PT SCREW,Flg, 5/16" - 24 x 1 1/4", Gr 8

SCREW - hex socket head, 5/16" - 24 NF x 1-1/4", grade 8

8шт.

Hardware, Ref. 29, 30, 31 and 32, that comes with transmission is to be discarded and updated with Ref. 29, 30, 31 and 32 as listed.

1шт.

32

L101105

SPACER

WASHER - flat, half round

8шт.

Hardware, Ref. 29, 30, 31 and 32, that comes with transmission is to be discarded and updated with Ref. 29, 30, 31 and 32 as listed.

1шт.
