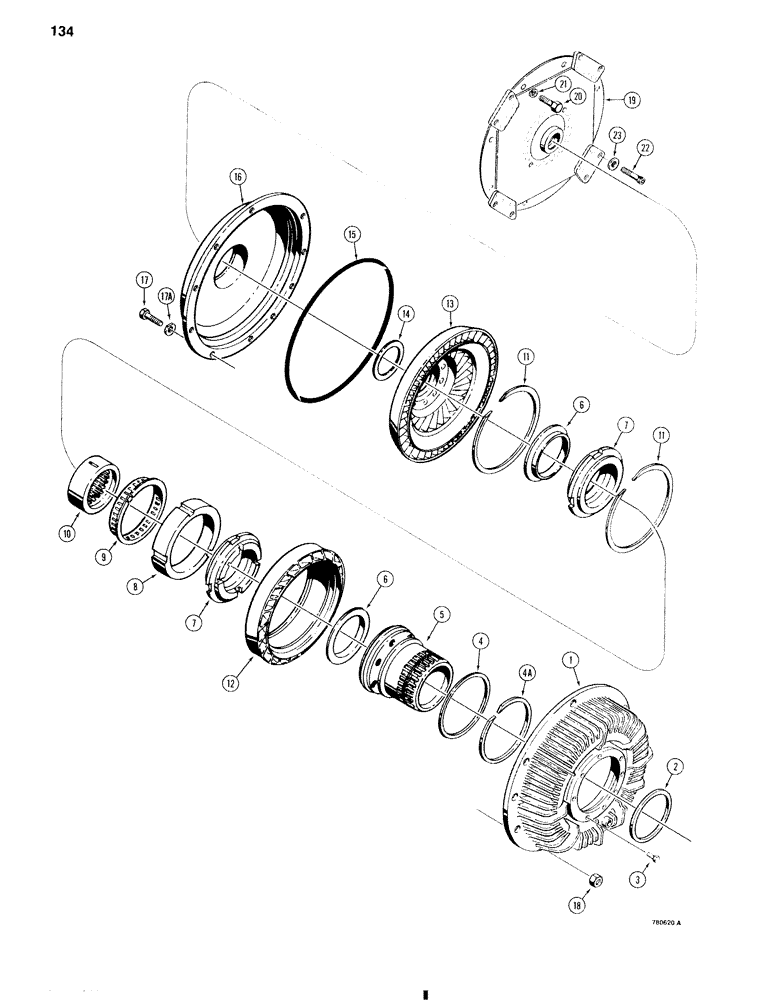

Запчасти Case W11 (134) - TRANSMISSION, BORG AND BECKTORQUE CONVERTER (06) - POWER TRAIN

N6129

CONVERTER

TORQUE CONVERTER - Borg and Beck manufactured, Incls. Ref. 1-18

1шт.

1

N7768

IMPELLER

- torque converter

1шт.

2

D82935

SEAL

SEAL - small

1шт.

3

164-30

HEX SOC SCREW,Flat Hd, 1/4" - 20 x 5/8"

BOLT - flat head socket, 1/4" - 20 NC x 5/8"

8шт.

4

D82997

RING

SEAL - large

1шт.

4a

N7845

OIL SEAL

RING - retaining

1шт.

5

D83007

HUB

- torque converter

1шт.

6

N6132

WASHER

THRUST WASHER - large

2шт.

7

D83003

RETAINER

- clutch

2шт.

8

D82999

RACE

HOUSING - clutch

1шт.

9

D83002

RING

- clutch

1шт.

10

D82998

RACE

HUB - clutch

1шт.

11

D83198

RING, SNAP

RING - retaining

2шт.

12

D83001

STATOR

- torque converter

1шт.

13

NSS

NOT SOLD SEPARAT

TURBINE - torque converter

1шт.

14

N6133

WASHER

THRUST WASHER - small

1шт.

15

D83000

O-RING

- cover

1шт.

16

S93421

COVER

- torque converter

1шт.

17

14-520

BOLT,Hex, 5/16" - 24 x 1-1/4", Gr 5

10шт.

17a

S114536

WASHER

- flat, half round

10шт.

18

131-149

LOCK NUT,5/16"-24, GA

NUT - hex, self-locking, 5/16" - 24 NF

10шт.

19

D82996

PLATE

FLEX PLATE - torque, Serial Range: converter-engine

1шт.

20

121-205

LOCK BOLT,Lock Place, Hex, 3/8" - 16 x 3/4", Gr 8

BOLT - hex self-locking, 3/8" - 16 NC x 3/4"

8шт.

Hardware, Ref. 20, 21, 22 and 23, that comes with transmission is to be discarded and updated with Ref. 20, 21, 22 and 23 as listed.

1шт.

21

R14978

WASHER,9.91mm ID x 22.23mm OD x 1.52mm Thk

- hardened Figures 134 and 136

8шт.

Hardware, Ref. 20, 21, 22 and 23, that comes with transmission is to be discarded and updated with Ref. 20, 21, 22 and 23 as listed.

1шт.

22

166-526

12 PT SCREW,Flg, 5/16" - 24 x 1 1/4", Gr 8

SCREW - hex socket head, 5/16" - 24 NF x 1-1/4", grade 8

8шт.

Hardware, Ref. 20, 21, 22 and 23, that comes with transmission is to be discarded and updated with Ref. 20, 21, 22 and 23 as listed.

1шт.

23

L101105

SPACER

WASHER - flat, half round

8шт.

Hardware, Ref. 20, 21, 22 and 23, that comes with transmission is to be discarded and updated with Ref. 20, 21, 22 and 23 as listed.

1шт.
