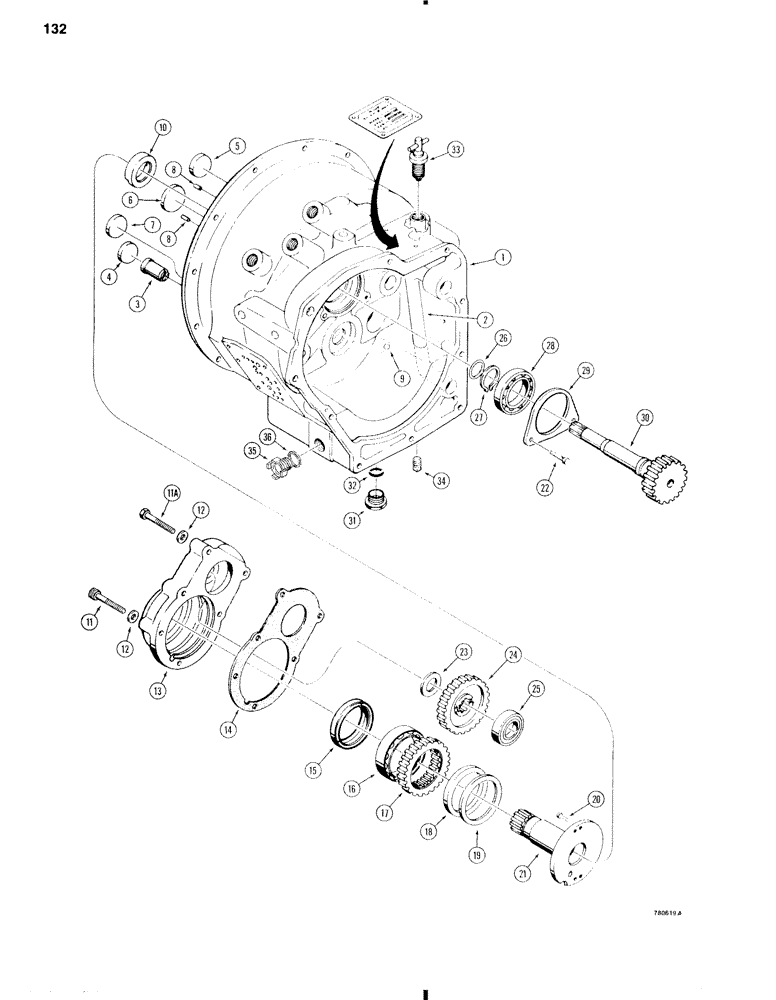

Запчасти Case W11 (132) - TRANSMISSION, REAR HOUSING, INPUT SHAFT, AND PUMP DRIVE (06) - POWER TRAIN

N6127

COVER ASSY

HOUSING ASSEMBLY - used on transmissions identified as 7297, 7297A, or 7297B only, Incls. Ref. 1-10

1шт.

N7872

COVER ASSY

HOUSING ASSEMBLY - used on transmissions identified as Spec 7297C or 7297D only, Incls. Ref. 1-10

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - rear

1шт.

2

D83057

TUBE - suction, used in N6127 housing assembly only

1шт.

3

D83058

VALVE

- relief

1шт.

4

41-1020

PLUG,Cup, 1 1/4"

- expansion, 1-1/4"

1шт.

5

41-1022

PLUG,Cup, 1 3/8"

- expansion, 1-3/8", used in N6127 housing assembly only

1шт.

6

41-1028

PLUG,Cup, 1 3/4"

- expansion, 1-3/4", used in N6127 housing assembly only

1шт.

7

41-1032

PLUG,Cup, 2"

- expansion, 2", used in N6127 housing assembly only

1шт.

8

D83059

PIN

DOWEL PIN - used in N6127 housing assembly only

2шт.

9

211-365

BALL

- 1/2", steel, used in N6127 housing assembly only

1шт.

10

N7799

INSERT

BUSHING - used in N6127 housing assembly only

2шт.

11

62-432

BOLT - hex socket head, 1/4" - 28 NF x 2", if used

6шт.

11

61-532

HEX SOC SCREW,5/16"-18 x 2"

OIL COOLER - early production, includes Ref. 17 &18, order Ref. 19

4шт.

11a

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

If used Hex, 5/16"-18 x 2", G5

2шт.

12

D83049

WASHER

- sealing

6шт.

13

D82974

HOUSING

COVER - pump drive

1шт.

14

N7874

GASKET

- cover

1шт.

15

D82944

OIL SEAL

- bearing

1шт.

16

A54073

BALL BEARING,2.5591" ID x 3.937" OD x 0.7087"

- support

1шт.

17

D82948

GEAR

- pump drive, lower

1шт.

18

A142056

THRUST BEARING,69.9mm ID x 91.82mm OD x 3.17mm W

NEEDLE BEARING - gear

1шт.

19

A142053

THRUST WASHER

RACE BEARING - needle bearing

1шт.

20

164-30

HEX SOC SCREW,Flat Hd, 1/4" - 20 x 5/8"

BOLT - socket, flat head, 1/4" - 20 NC x 5/8"

2шт.

21

D82950

SUPPORT

- used in transmissions identified as Spec 7297, 7297A

1шт.

or 7297B only

1шт.

21

N7873

SUPPORT TUBE,1.25" ID x 1.529" OD x 5.06" L

SUPPORT - used in transmissions identified as Spec 7297C or 7297D only

1шт.

22

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

23

G46082

WASHER

THRUST WASHER - gear

1шт.

24

D82947

GEAR

- pump drive, lower

1шт.

25

D83031

ROLLER BEARING

- gear

1шт.

26

D82936

SEAL

SEAL - input shaft

1шт.

27

A17903

SNAP RING,#156, Ext

Ring, Snap, , bearing #156, Ext

1шт.

28

D83021

BALL BEARING

- input shaft

1шт.

29

D82946

RETAINER

RING - bearing retaining

1шт.

30

N7014

SHAFT

- input

1шт.

31

D82938

PLUG

- hex head, 1-5/16" - 12 NF, if used

1шт.

32

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- plug, if used

1шт.

33

D87198

CAP

PLUG - filler

1шт.

34

221-15

PLUG,Sq Hd, 3/4"-14

- square head, 3/4" NPT, if used

1шт.

35

N7875

PLUG

- special, 1-1/2", if used

1шт.

36

N7876

GASKET

- plug, if used

1шт.
