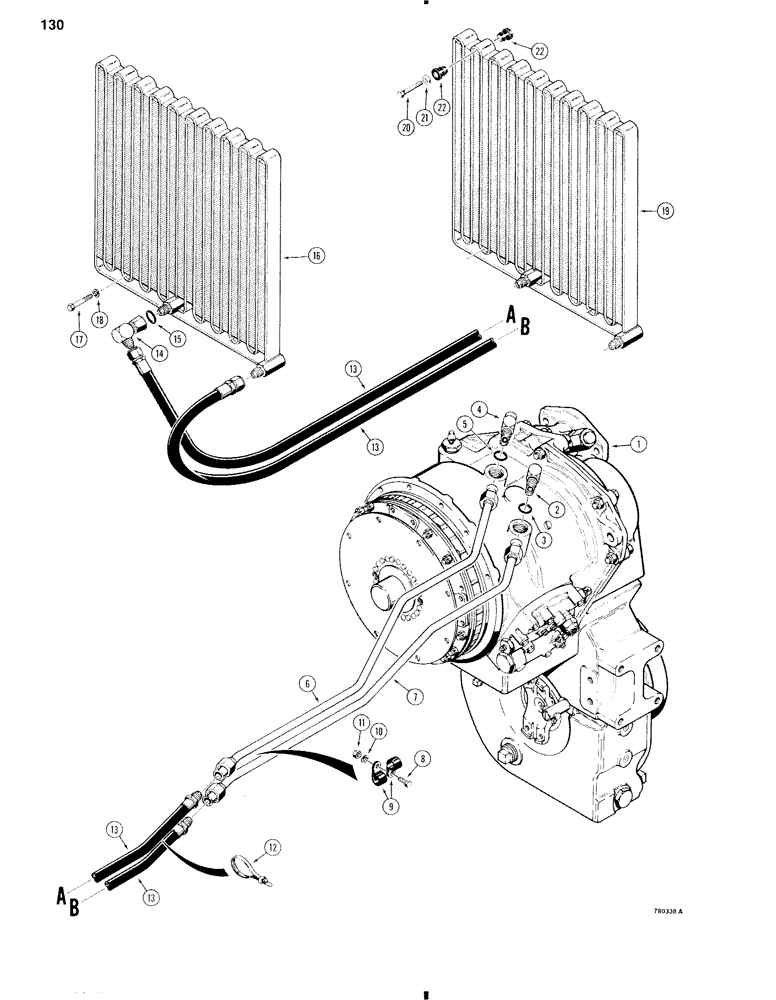

Запчасти Case W11 (130) - TRANSMISSION HYDRAULIC CIRCUIT, TRANSMISSION TO OIL COOLER (06) - POWER TRAIN

1

L108832

TRANSMISSION

- parts list Fig. 132 - 152

1шт.

2

218-5119

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

- 90 degree, adjustable, Incls. Ref. 3

1шт.

3

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- elbow

1шт.

4

L76548

TEE

- adjustable, Incls. Ref. 5

1шт.

5

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- tee

1шт.

6

L77781

TUBE ASSY.,0.625" OD

TUBE - upper

1шт.

7

L77783

TUBE ASSY.,0.625" OD

TUBE - lower

1шт.

8

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

9

49885

CLAMP

- tube

2шт.

10

92-6

LOCK WASHER,3/8"

1шт.

11

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

12

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

13

L74928

HOSE ASSY.,0.50" ID x 26.00"

HOSE ASSY, 0.50" ID x 26.00"

2шт.

14

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree, adjustable, Incls. Ref. 15

1шт.

15

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- elbow

1шт.

16

L74585

COOLER

OIL COOLER - early production, includes Ref. 17 and 18, order Ref. 19

1шт.

17

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

5шт.

18

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

5шт.

19

L105292

COOLER

- oil, late production, includes Ref. 20 -22

1шт.

20

113-277

BOLT

- hex head, 3/8" - 16 NC x 2-1/2", black cadium plated

5шт.

21

195-125

WASHER

- flat, 3/8", black cadium plated

5шт.

22

N6770

GROMMET

- rubber

10шт.
