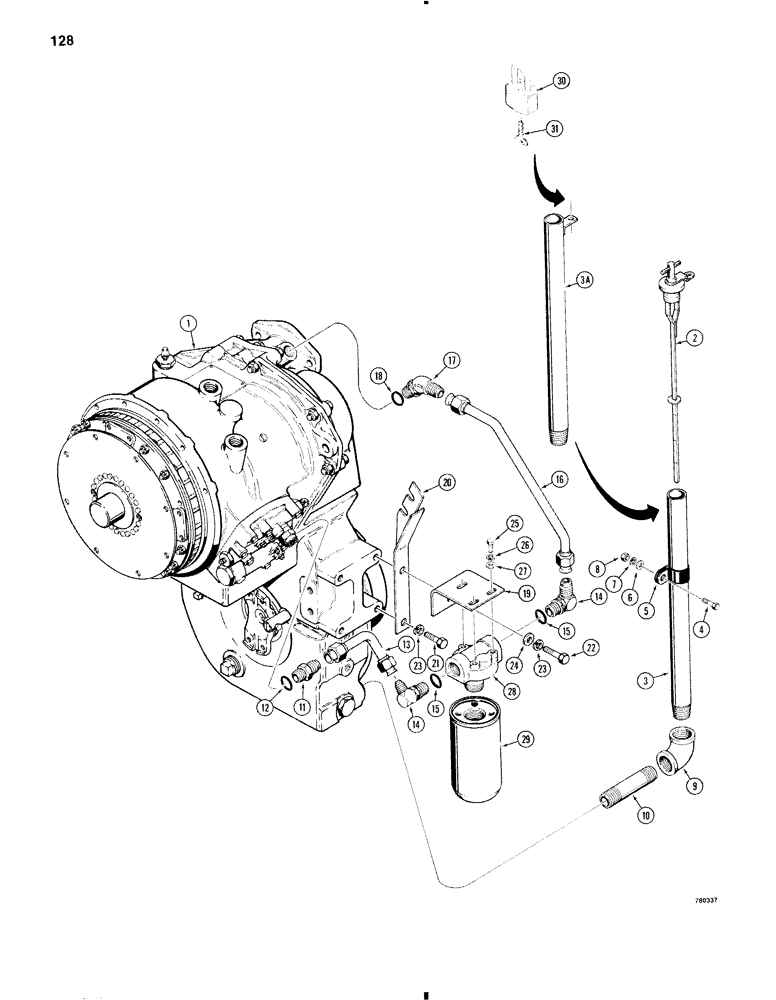

Запчасти Case W11 (128) - TRANSMISSION HYDRAULIC CIRCUIT, TRANSMISSION FILTER AND DIPSTICK (06) - POWER TRAIN

1

L108832

TRANSMISSION

- parts list Fig. 132 thru 152

1шт.

2

L74911

DIPSTICK

- transmission

1шт.

3

L74909

PIPE

- standard, dipstick

1шт.

3a

L79788

PIPE

- anti-vandalism, dipstick

1шт.

4

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

5

R13931

CLAMP

- pipe

1шт.

6

95-6

WASHER,3/8"

- flat, 3/8"

1шт.

7

92-6

LOCK WASHER,3/8"

1шт.

8

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

9

221-380

ELBOW,90 Degree, 1 1/4" NPT

- 90 degree, 1-1/4" NPT

1шт.

10

221-268

NIPPLE, LUBE

NIPPLE - pipe

1шт.

11

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, Incls. Ref. 12

1шт.

12

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- adapter

1шт.

13

L77381

TUBE ASSY.,0.75" OD x 4.38, 4.17" L

TUBE - short

1шт.

14

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

adjustable, Incl. Ref. 18 90º, 1 1/16"-12, 37º x 1 1/16"-12, O-Ring

2шт.

15

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- elbow

1шт.

16

L77386

TUBE ASSY.,0.75" OD

TUBE - long

1шт.

17

218-5138

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

- 45 degree, adjustable

1шт.

18

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- elbow

1шт.

19

L77376

BRACKET

- filter

1шт.

20

L77378

BRACKET

- filter and cable

1шт.

21

13-1016

BOLT,Hex, 5/8" - 11 x 1", Gr 5, Full Thd

1шт.

22

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

1шт.

23

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

24

95-10

WASHER,5/8"

- flat, 5/8"

1шт.

25

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

3шт.

26

92-5

LOCK WASHER,5/16"

3шт.

27

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16"

3шт.

L77387

FILTER

ASSEMBLY - transmission, Incls. 28 & 29

1шт.

28

D80547

BASE

HEAD - filter

1шт.

29

D80548

FILTER CARTRIDGE

ELEMENT - spin on type

1шт.

30

D93753

PADLOCK

- includes keys, Incls. Ref. 31

1шт.

31

R29555

KEY

- for Master padlock only

2шт.

31

D93751

SET OF 2 KEYS

KEY - for Yale padlock only

2шт.
