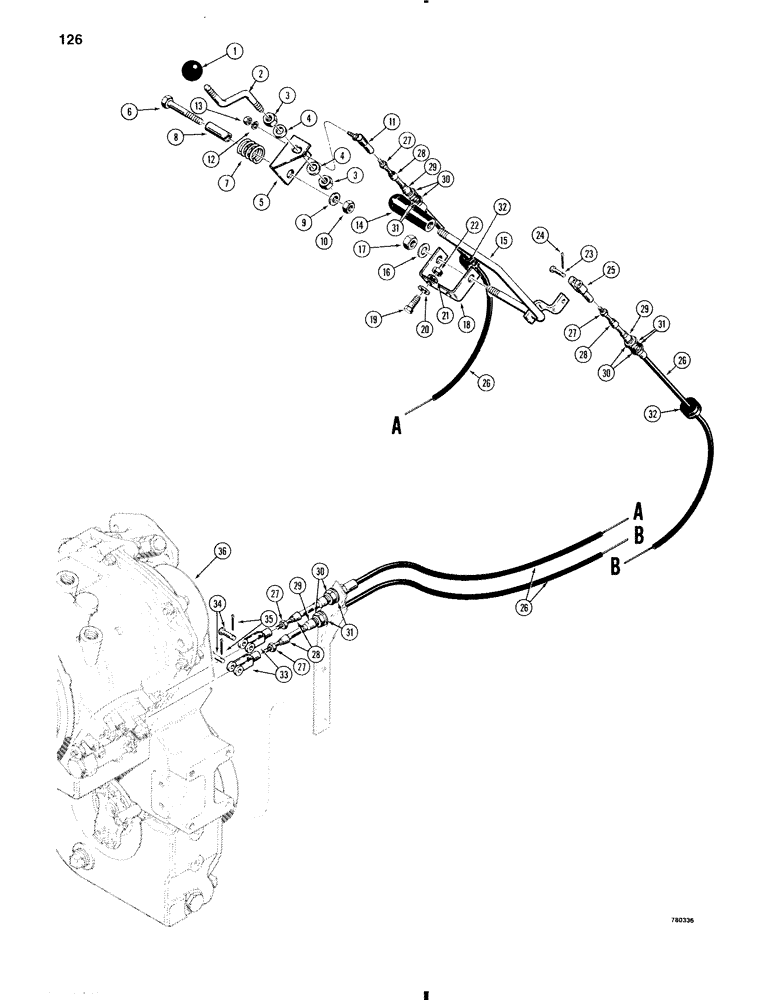

Запчасти Case W11 (126) - TRANSMISSION CONTROL PARTS (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
A23885
KNOB
- range control lever
1шт.
2
L104396
LEVER
- control, range
1шт.
3
25-148
JAM NUT,Jam, 1/2"-13, G5
JAM NUT - hex lock, 1/2"-13 NC
2шт.
4
95-8
WASHER,1/2"
flat 1/2"
2шт.
5
L100729
BRACKET
- range control lever
1шт.
6
13-856
BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5
1шт.
7
L76613
SPRING
- bracket
1шт.
8
L76651
SPACER
- bolt
1шт.
9
R24718
WASHER
- hardened
1шт.
10
131-654
LOCK NUT,1/2"-13, GB
NUT - hex self-locking, 1/2" - 13 NC
1шт.
11
A10329
BALL JOINT,1/4" - 28 x 1"
- cable end
1шт.
12
92-4
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
1шт.
13
25-154
JAM NUT,Jam, 1/4"-28, G5
JAM NUT - 1/4" - 20 NC
1шт.
14
L55721
HANDLE
- direction control lever
1шт.
15
L74845
LEVER
- control, direction
1шт.
16
NLS
NO LONGER SERVICED
- hardened
1шт.
17
131-1330
JAM NUT,Jam, 5/8"-18
NUT - hex, self-locking, 5/8" - 11 NC
1шт.
18
L74799
BRACKET
- direction control lever
1шт.
19
13-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd
2шт.
20
95-6
WASHER,3/8"
- flat, 3/8"
2шт.
21
92-6
LOCK WASHER,3/8"
2шт.
22
25-106
NUT,3/8"-16, G5
- hex, 3/8" - 16 NC
2шт.
23
141-2
CLEVIS PIN,1/4" x .770"
- 1/4"
1шт.
24
132-6
COTTER PIN,1/16" x 5/8"
Pin, Split (Cotter) 1/16" x 5/8"
1шт.
25
213-2
ADJUSTABLE CLEVIS,1/4"-28 x 2"
YOKE - 1/4"
1шт.
L74425
CABLE
ASSEMBLY - control, Incls. Red. 26-31
2шт.
26
NSS
NOT SOLD SEPARAT
CABLE - control
1шт.
27
425-154
JAM NUT,Jam, 1/4"-28, G5
2шт.
28
D80549
ROD
WIPER - cable
2шт.
29
D80550
PIVOT
SEAL - swivel
2шт.
30
129-167
JAM NUT,Jam, 5/8"-18, G5
JAM NUT - 5/8" - 18 NF
4шт.
31
195-108
WASHER,5/8"
- flat, 5/8"
4шт.
32
L77821
GROMMET,1/2" ID x 1 1/4" Groove Dia, Str Cut
2шт.
33
A60661
YOKE
2шт.
34
141-4
CLEVIS PIN,3/8" x 1.060"
PIN, CLEVIS, 3/8" x 1.060"
2шт.
35
132-25
COTTER PIN,3/32" x 5/8"
Pin, Split (Cotter), 3/32" x 5/8"
2шт.
36
REF
INSTRUCTION
TRANSMISSION - parts list Fig. 132 thru 152
1шт.
Выбрано товаров: 37
