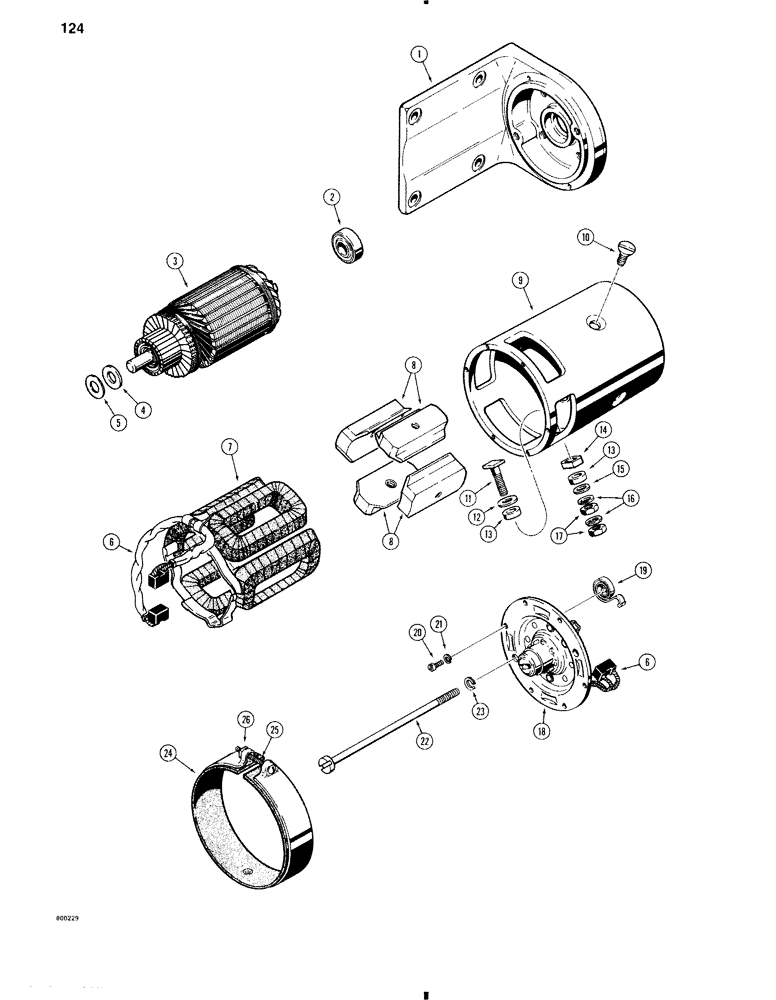

Запчасти Case W11 (124) - L78437 AUXILIARY STEERING MOTOR (05) - STEERING

L78437

MOTOR

- auxiliary steering, Prestolite ML-4361, Incl. Ref.1-26

1шт.

1

A47556

HEAD

MOUNTING PLATE - drive end

1шт.

A47552

ARMATURE

AND BEARING ASSEMBLY - motor, Incls.. Ref 2 & 3

1шт.

Note - A47552 contains the bearing Ref #2 that is now N S S, or A47561 can be serviced with A47553 Bearing Package.

1шт.

2

NSS

NOT SOLD SEPARAT

BALL BEARING - end, plate (Replaces A47563, A47561)

1шт.

3

NSS

NOT SOLD SEPARAT

ARMATURE - motor

1шт.

4

NSS

NOT SOLD SEPARAT

WASHER - thrust, terminal end

1шт.

5

NSS

NOT SOLD SEPARAT

WASHER - plastic

1шт.

6

A47562

SET

BRUSH SET - Prestolite (1) ML-1012B and (2) ML-1034AS

1шт.

A25723

PACKAGE

COIL ASSEMBLY, Incls. Ref 7 & 8

1шт.

7

NSS

NOT SOLD SEPARAT

FIELD - winding

1шт.

8

NSS

NOT SOLD SEPARAT

SHOE - magnet

4шт.

9

NSS

NOT SOLD SEPARAT

HOUSING - coil assembly

1шт.

10

NSS

NOT SOLD SEPARAT

SCREW - pole, shoe

4шт.

A47557

TERMINAL CONNECTOR

TERMINAL KIT - motor, Incls. Ref. 11-17

1шт.

11

NSS

NOT SOLD SEPARAT

STUD - terminal

1шт.

12

NSS

NOT SOLD SEPARAT

WASHER - plain, inner

1шт.

13

NSS

NOT SOLD SEPARAT

INSULATOR - round

2шт.

14

NSS

NOT SOLD SEPARAT

INSULATOR - square

1шт.

15

NSS

NOT SOLD SEPARAT

WASHER - plain, outer

1шт.

16

NSS

NOT SOLD SEPARAT

WASHER - lock

2шт.

17

NSS

NOT SOLD SEPARAT

NUT - hex

2шт.

18

A47560

HEAD

ASSEMBLY - commutator end, Incls. Ref. 19

1шт.

19

A40275

SPRING

SET - head

1шт.

20

NSS

NOT SOLD SEPARAT

SCREW - mounting plate, drive end

6шт.

21

NSS

NOT SOLD SEPARAT

WASHER - lock

6шт.

22

A25654

SCREW,5/14" - 18 x 7.19"

- frame mounting

2шт.

23

A47564

THRUST WASHER

- lock

2шт.

24

A47555

BAND

- cover, Incls. Ref. 25 & 26

1шт.

25

NSS

NOT SOLD SEPARAT

SCREW - band

1шт.

26

NSS

NOT SOLD SEPARAT

NUT - square, band

1шт.
