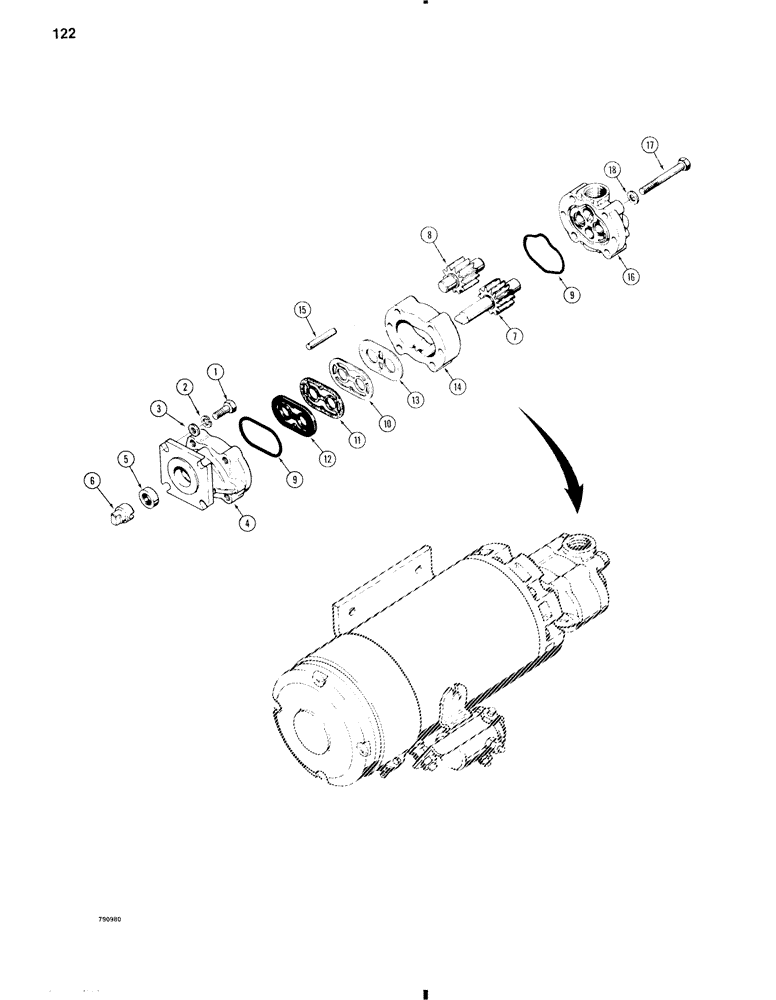

Запчасти Case W11 (122) - L78440 AUXILIARY STEERING PUMP (05) - STEERING

1

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

2

92-5

LOCK WASHER,5/16"

4шт.

3

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16"

1шт.

L78440

PUMP

ASSEMBLY - auxiliary steering, Incls. Ref. 4-18

1шт.

4

D71496

COVER

- drive shaft end

1шт.

5

C15735

SEAL

- cover

1шт.

6

D71498

COUPLING

- pump drive

1шт.

Ref #6 - This coupling has been removed from the L78440 Pump Assy. If the shaft is too short without this coupling, it may have to be ordered.

1шт.

7

D87271

GEAR

DRIVE GEAR ASSEMBLY - pump

1шт.

8

D87270

GEAR

DRIVEN GEAR ASSEMBLY - pump

1шт.

9

S5627

O-RING,2.114" ID x 2.254" OD x 0.07"

- pump seal

2шт.

10

C15738

SHIELD

- heat

1шт.

11

C15739

GASKET

- pump

1шт.

12

C15740

SEAL ASSY.

SEAL - V type

1шт.

13

C15737

PLATE

- wear

1шт.

14

D87272

VALVE BLOCK

SECTION - center

1шт.

15

F22592

DOWEL

PIN - pump

2шт.

16

C15730

COVER

- port end

1шт.

17

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

4шт.

18

A50773

WASHER

- flat, 5/16"

4шт.
