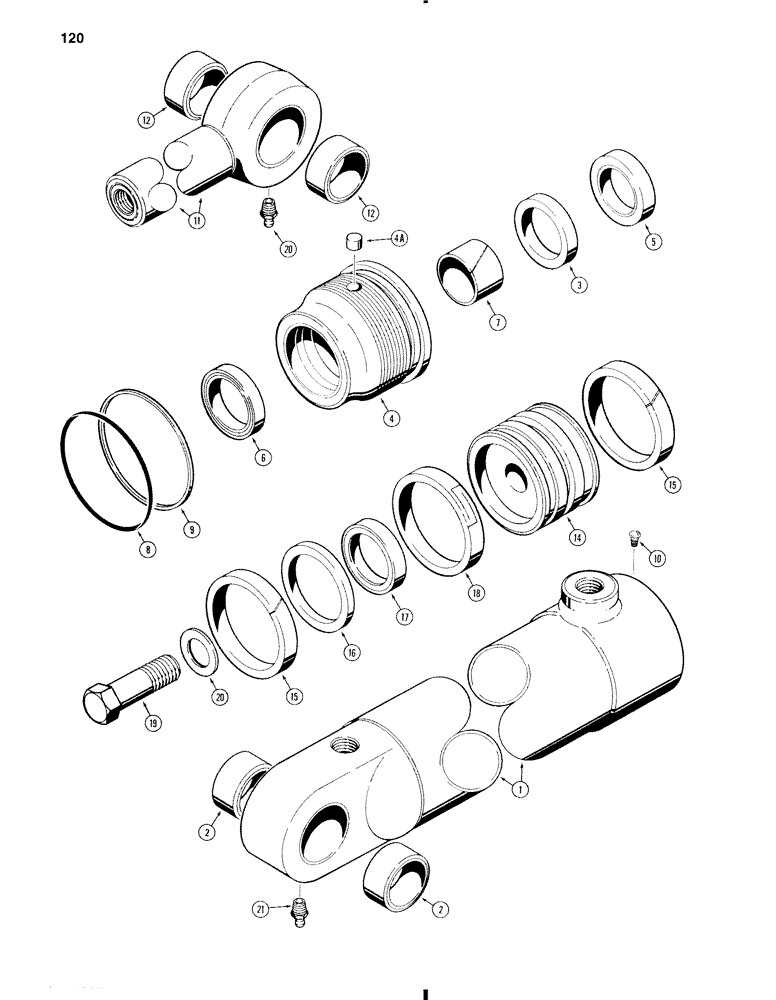

Запчасти Case W11 (120) - G103549 -G101051 STEERING CYLINDER (05) - STEERING

G101051

CYLINDER

- 3" (76 mm) ID, 12-11/64" (309 mm) stroke, order

1шт.

G103549 for service

1шт.

G103549

CYLINDER

- 3" (76 mm) ID, 12-11/64" (309 mm) stroke Incls. Ref. 1-9

1шт.

1

G103550

TUBE,76mm Bore Dia

- cylinder

1шт.

2

D30930

BUSHING,38.33mm ID x 47.63mm OD x 17.53mm L

- tube

2шт.

G103567

GLAND

ASSEMBLY - cylinder, Incls. Ref. 3-9

1шт.

3

NSS

NOT SOLD SEPARAT

RETAINING RING - bushing

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

4a

G102569

PLUG

- nylon, thread locking, gland, if used

1шт.

5

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod

1шт.

Part of Seal Kit, P/N G105548

1шт.

6

D36969

CUP

SEAL - piston rod

1шт.

Part of Seal Kit, P/N G105548

1шт.

7

G102424

BUSHING,38.1mm ID x 41.17mm OD x 25.15mm L

- Center

1шт.

Part of Seal Kit, P/N G105548

1шт.

8

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

- gland

1шт.

Part of Seal Kit, P/N G105548

1шт.

9

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

BACKUP RING - gland O-ring

1шт.

Part of Seal Kit, P/N G105548

1шт.

10

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, No. 8 - 32 NC x 1/4", if used, not required when nylon plug is used

1шт.

11

G101127

ROD

- piston, 1-1/2" (381 mm) diameter, Incls. Ref. 12

1шт.

12

D30930

BUSHING,38.33mm ID x 47.63mm OD x 17.53mm L

- piston rod

2шт.

13

RESERVED

1шт.

14

G100442

PISTON

- cylinder

1шт.

15

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

RING - wear, piston

3шт.

Part of Seal Kit, P/N G105548

1шт.

16

G100444

SEALING RING,Square, 5.28mm Thk x 62.61mm ID

BACKUP RING - piston seal

1шт.

Part of Seal Kit, P/N G105548

1шт.

17

G102288

SEAL,Locking, 71.71mm ID x 76.43mm OD x 6.96mm Thk

- Piston

1шт.

Part of Seal Kit, P/N G105548

1шт.

18

G102288

SEAL,Locking, 71.71mm ID x 76.43mm OD x 6.96mm Thk

- Piston

1шт.

Part of Seal Kit, P/N G105548

1шт.

19

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

- hex head, 3/4" - 16 NF x 2-1/2"

1шт.

20

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

2шт.

G105548

KIT

- seal, Includes: ref. nos. 5, 6, 7, 8, 9, 15, 16, 17, and 18, same as G102404 kit plus item 8A above

1шт.

G100776

SEAL

- piston rod, service option - severe heat or cold

1шт.
