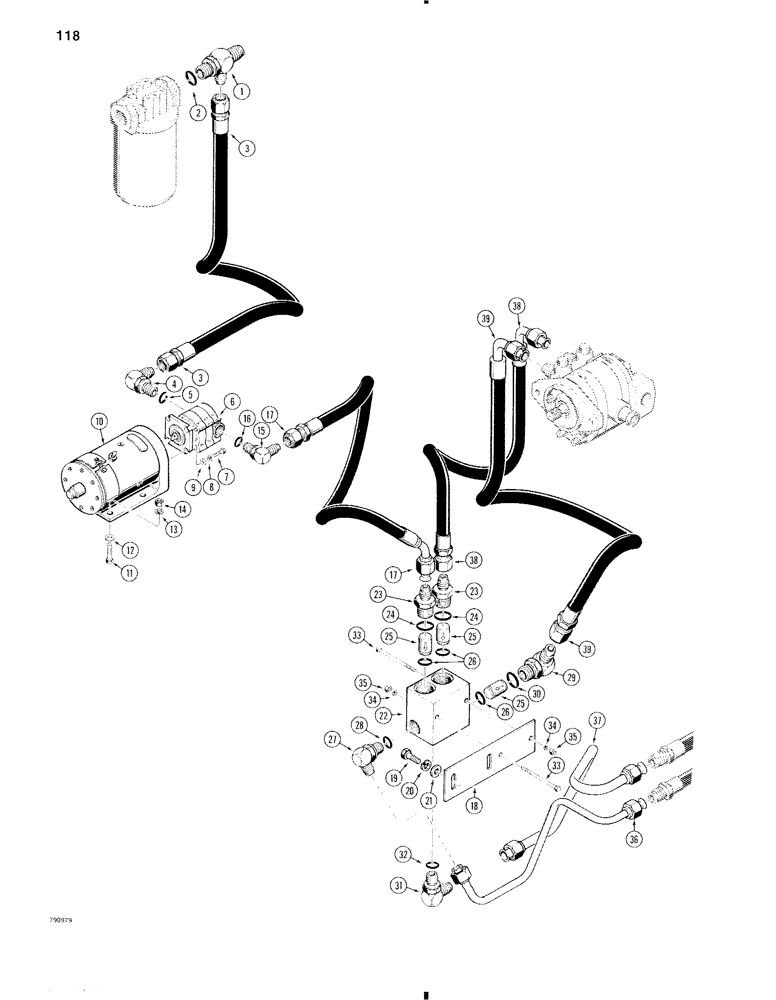

Запчасти Case W11 (118) - AUXILIARY STEERING HYDRAULIC CIRCUIT (05) - STEERING

1

218-5293

TEE - at filter, Incls. Ref. 2 37º, 1 5/8"-12, 1 5/8"-12 O-Ring Run, 3/4"-14

1шт.

2

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

- tee

1шт.

3

L78468

HOSE ASSY.

HOSE - tee to auxiliary steering pump, 37" (940 mm)

1шт.

4

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, adjustable

1шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

6

L78440

PUMP

- auxiliary steering, parts list figure 122

1шт.

7

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

8

92-5

LOCK WASHER,5/16"

4шт.

9

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16"

4шт.

10

L78437

MOTOR

- auxiliary steering, parts list figure 124

1шт.

11

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2"

4шт.

12

95-6

WASHER,3/8"

- flat, 3/8"

4шт.

13

92-6

LOCK WASHER,3/8"

4шт.

14

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

15

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, adjustable

1шт.

16

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- elbow

1шт.

17

L100154

HOSE

ASSEMBLY - pump to check valve assembly, 27" (686 mm) long

1шт.

18

L79867

PLATE

- check valve mounting

1шт.

19

13-1016

BOLT,Hex, 5/8" - 11 x 1", Gr 5, Full Thd

2шт.

20

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

21

195-41

WASHER,5/8"

2шт.

L100460

SUPPORT

VALVE ASSEMBLY - check, Incls. Ref. 22-32

1шт.

22

NSS

NOT SOLD SEPARAT

BLOCK - check valve

1шт.

23

218-5078

HYD CONNECTOR,7/8" - 14 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, Incls. Ref. 24

2шт.

24

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

25

L100198

VALVE POPPET

POPPET - check valve, Incls. Ref. 26

3шт.

26

R15366

O-RING,7/8" ID x 1" OD x 1/16"

- poppet

3шт.

27

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

ADAPTER - 90 degree, adjustable, Incls. Ref. 28

1шт.

28

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- adapter

1шт.

29

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - 90 degree, adjustable, Incls. Ref. 30

1шт.

30

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

31

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

adjustable, Adapter, Incl. Ref. 32 90º, 1 1/16"-12, 37º x 1 1/16"-12, O-Ring

1шт.

32

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- adapter

1шт.

33

13-560

BOLT,Hex, 5/16" - 18 x 3-3/4", Gr 5

- hex head, 5/16" - 18 NC x 3-3/4"

2шт.

34

92-5

LOCK WASHER,5/16"

2шт.

35

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

2шт.

36

L100734

TUBE ASSY.,0.625" OD

TUBE - from check valve side port

1шт.

37

L100158

TUBE ASSY.,0.75" OD

TUBE - from check valve bottom port

1шт.

38

L100140

HOSE

ASSEMBLY - from hydraulic pump, 16" (406 mm) long

1шт.

39

L100141

HOSE

ASSEMBLY - from hydraulic pump, 19" (483 mm) long

1шт.
