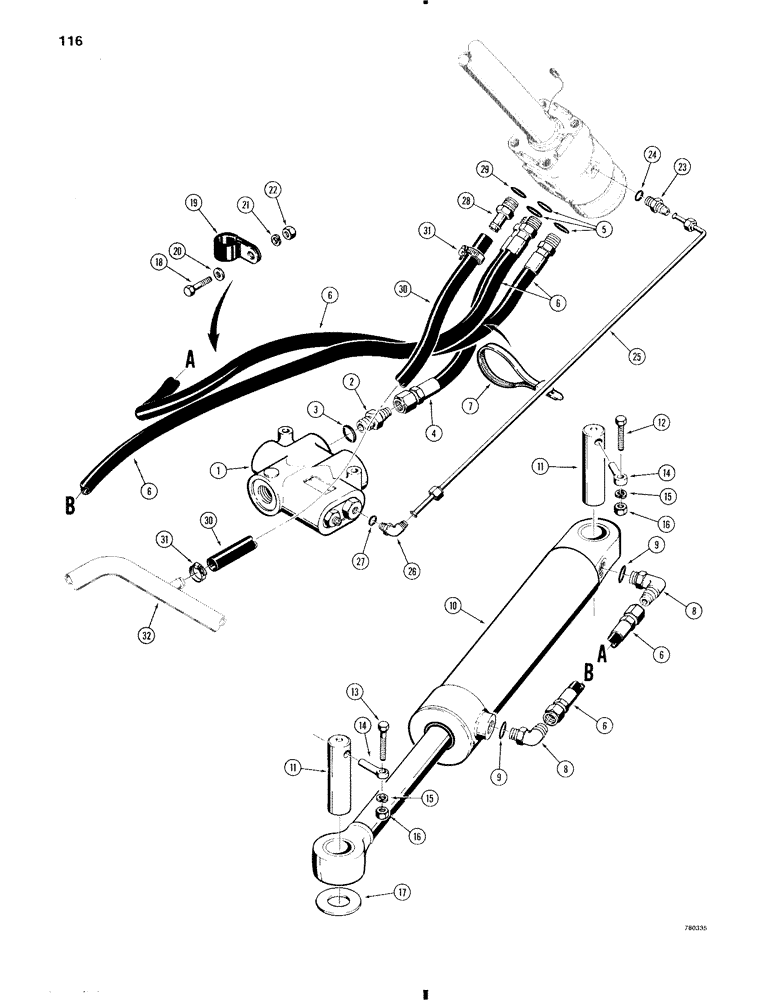

Запчасти Case W11 (116) - STEERING HYDRAULIC CIRCUIT (05) - STEERING

1

REF

INSTRUCTION

FLOW CONTROL VALVE - parts list Fig. 203

1шт.

2

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, Incls. Ref 3 3/4"-16, 37º x 7/8"-14, O-Ring

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- adapter

1шт.

4

L78087

HOSE

- to steering control valve, 20" (508 mm) long

1шт.

5

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- control valve ports

3шт.

6

L74843

HOSE ASSY.,0.38" ID x 50.00"

HOSE ASSY, , To Cylinders 0.38" ID x 50.00"

2шт.

7

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

8

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, adjustable, Incls. Ref. 9

2шт.

9

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- elbow

1шт.

10

REF

INSTRUCTION

CYLINDER - parts list Fig. 121

1шт.

11

L74886

PIN

- cylinder

2шт.

12

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

13

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

14

R17756

ROD,12.7mm OD x 109.54mm L

PIN - eye

2шт.

15

92-8

LOCK WASHER,1/2"

2шт.

16

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

2шт.

17

A12089

WASHER,38.89mm ID x 76.2mm OD x 1.9mm Thk

- hardened

1шт.

18

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

19

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- hose

1шт.

20

95-6

WASHER,3/8"

- flat, 3/8"

1шт.

21

92-6

LOCK WASHER,3/8"

1шт.

22

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

23

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

ADAPTER - straight, Incls. Ref. 24

1шт.

24

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

- adapter

1шт.

25

L79672

TUBE,0.25" OD x 23.02, 2.39" L

- drain

1шт.

26

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

- 90 degree, adjustable, Incls. Ref. 27

1шт.

27

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

- elbow

1шт.

28

217-182

FITTING,1/2" Hose Barb x 3/4" - 16 Male ORB

BARB FITTING - straight, Incls. Ref. 29

1шт.

29

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- barb fitting

1шт.

30

D65486

HOSE

- return 26" (660 mm) x 1/2" (12.7 mm) ID

1шт.

31

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - hose

2шт.

32

REF

INSTRUCTION

TUBE - manifold, Fig. 187

1шт.
