Запчасти Case W11 (114) - L78473 STEERING CONTROL VALVE AND COLUMN, VALVE (05) - STEERING

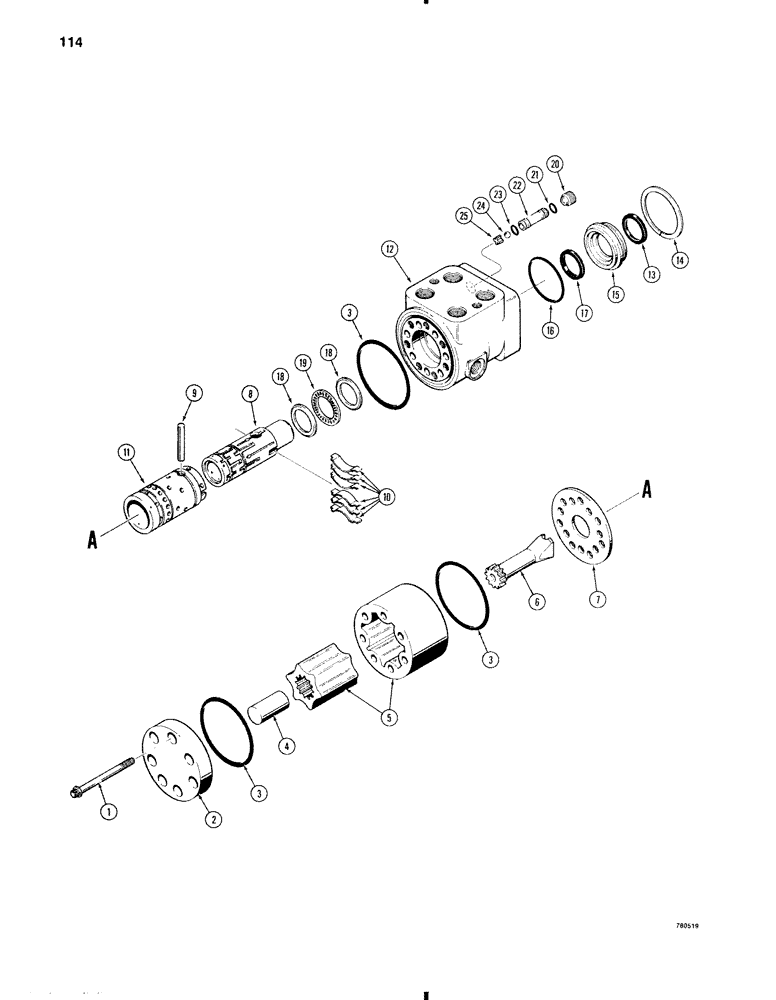

Схема запчастей Case W11 - (114) - L78473 STEERING CONTROL VALVE AND COLUMN, VALVE (05) - STEERING

Артикул

Название

Примечание

Количество

L78473

PINION

CONTROL VALVE AND COLUMN ASSEMBLY - steering, Incls. P/N S238868, P/N D82803 and Ref. 1-25

1шт.

S238868

STEERING COLUMN

COLUMN ASSEMBLY - not shown, parts list Fig, 112

1шт.

D82803

VALVE

CONTROL VALVE ASSEMBLY - steering, Incls. Ref. 1-25

1шт.

1

166-534

12 PT SCREW,Flg, 5/16" - 24 x 3", Gr 8

BOLT - 12 pt. head, 5/16" - 24 NF x 3"

7шт.

2

D82809

COVER

CAP - steering control valve

1шт.

3

N6392

O-RING,0.07" Thk x 2.864" ID, -40, Cl 5, 75 Duro

- cap

3шт.

Part of Seal Kit, P/N D82802

1шт.

4

D51216

SPACER

- shaft

1шт.

5

D82808

KIT

GEROTOR SET - steering control valve

1шт.

6

L30878

DRIVE SHAFT

- steering control valve

1шт.

7

S113037

PLATE

- spacer

1шт.

D82807

CONTROL

HOUSING AND SPOOL ASSEMBLY valve, Incls. Ref. 9-12

1шт.

8

NSS

NOT SOLD SEPARAT

SPOOL - steering control valve

1шт.

9

L30888

PIN

- spool and sleeve

1шт.

10

L30889

SPRING

- spool

6шт.

11

NSS

NOT SOLD SEPARAT

SLEEVE - spool

1шт.

12

NSS

NOT SOLD SEPARAT

HOUSING - steering control valve

1шт.

13

A28211

OIL SEAL

- bushing

1шт.

Part of Seal Kit, P/N D82802

1шт.

14

S110169

WASHER

RING - retaining

1шт.

15

S110170

BUSHING

- spool

1шт.

16

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

- bushing

1шт.

Part of Seal Kit, P/N D82802

1шт.

17

A72029

RING

SEAL - quad ring

1шт.

Part of Seal Kit, P/N D82802

1шт.

18

D82804

RACE

WASHER - thrust

2шт.

19

G13609

THRUST BEARING,25.4mm ID x 39.67mm OD x 1.98mm W

BEARING, THRUST - Needle

1шт.

20

D82805

SET SCREW

SCREW - set, special

1шт.

21

A30825

O-RING,0.364" ID x 0.504" OD x 0.07"

- check valve, outer

1шт.

Part of Seal Kit, P/N D82802

1шт.

22

D82806

VALVE SEAT

SEAT - check valve

1шт.

23

L30893

O-RING,1/16" Thk x 5/16" ID

- check valve, inner, 7/16 x 5/16 x 1/16 in

1шт.

Part of Seal Kit, P/N D82802

1шт.

24

211-9

BALL,5/16" Dia

- check valve

1шт.

25

L35368

RETAINER

- ball

1шт.

D82802

SEAL PACKAGE

KIT - seal, Includes: Ref. 3, 13, 16, 17, 21, and 23

1шт.

Выбрано товаров: 36
