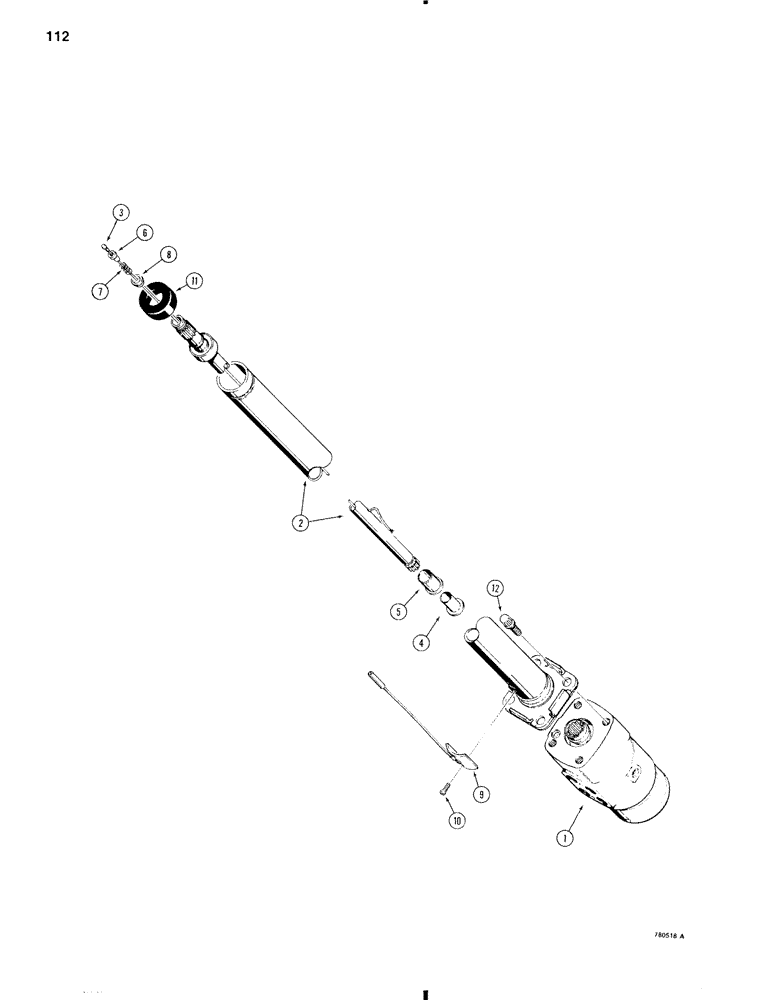

Запчасти Case W11 (112) - L78473 STEERING CONTROL VALVE AND COLUMN, COLUMN (05) - STEERING

L78473

PINION

CONTROL VALVE AND COLUMN ASSEMBLY - steering, Incls. Ref. 1-12

1шт.

1

D82803

VALVE

CONTROL VALVE ASSEMBLY - steering, parts list Fig. 114

1шт.

S238868

STEERING COLUMN

COLUMN ASSEMBLY - steering, Incls. Ref. 2-12

1шт.

2

NSS

NOT SOLD SEPARAT

COLUMN AND SHAFT - steering

1шт.

3

D82800

TERMINAL CONNECTOR

WIRE AND TERMINAL - steering column

1шт.

4

S63470

INSULATOR

- plastic ring

1шт.

5

S63469

RING

- contact

1шт.

6

S63454

CONTACT

INSULATOR - terminal

1шт.

7

S63458

CONTACT

SPRING - insulator

1шт.

8

S63467

WASHER

RETAINER - spring

1шт.

D82801

BRUSH, COMMUTATOR

KIT - insulator and brush, GREASE PACKAGE and Ref. 9

1шт.

NSS

NOT SOLD SEPARAT

GREASE PACKAGE - not shown

1шт.

9

NSS

NOT SOLD SEPARAT

INSULATOR AND BRUSH - steering column

1шт.

10

187-1015

SELF-TAP SCREW,Slotted Flat Hd, #10 x 1/2"

SCREW - self-tapping, No. 10 - 32 NF x 1/2

2шт.

11

NSS

NOT SOLD SEPARAT

SEAL - cap

1шт.

12

166-43

12 PT SCREW,Flg, 3/8" - 16 x 3/4", Gr 8

BOLT - Ferry head, 3/8" - 16 NC x 3/4", used for shipping purposes only, Ref. 21-29 on Fig. 111

2шт.
