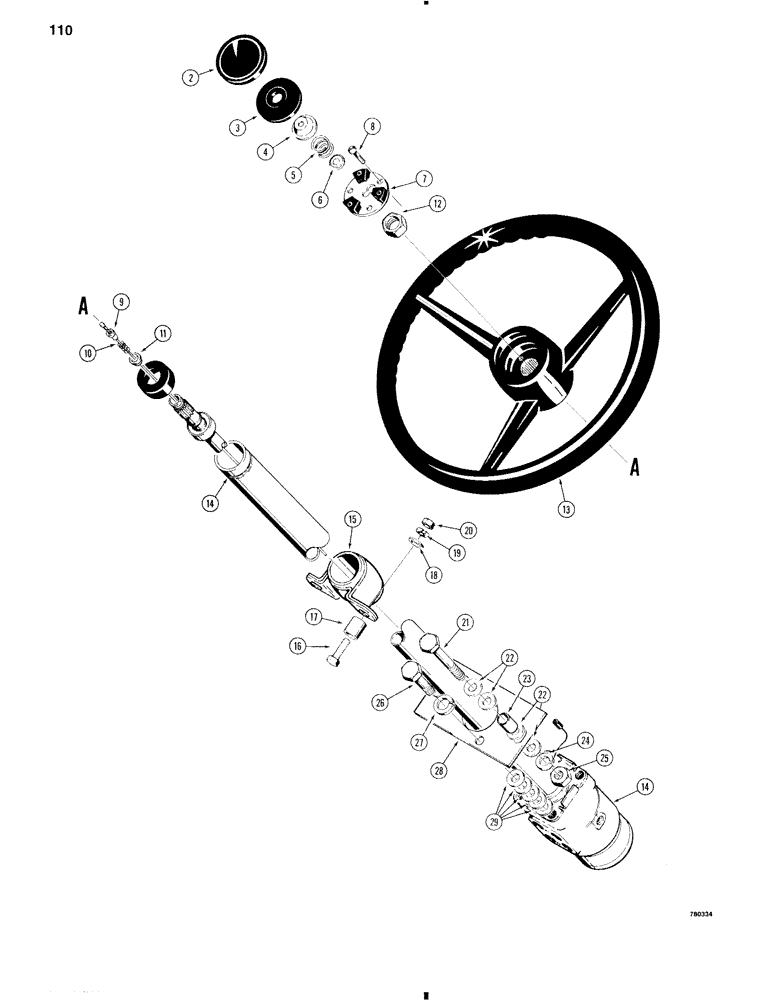

Запчасти Case W11 (110) - STEERING WHEEL AND COLUMN (05) - STEERING

A16843

BUTTON

ASSEMBLY - horn, Incls. Ref. 1-11

1шт.

1

RESERVED

1шт.

2

A13088

CAP

COVER - horn button

1шт.

3

A13089

BUTTON

- horn

1шт.

4

A13092

CAP

CUP - contact

1шт.

5

A13091

SPRING

- horn button

1шт.

6

A13090

CAP

- contact

1шт.

7

A13093

PLATE ASSY.

PLATE - horn

1шт.

8

187-321

SELF-TAP SCREW,Slotted Pan Hd, #8 x 1/2"

SCREW - self-tapping, No. 8 - 32 NC x 1/2"

3шт.

9

A13058

FERRULE

INSULATOR - terminal

1шт.

10

A13059

SPRING

- insulator

1шт.

11

A13057

CUP ASSY.

RETAINER - spring

1шт.

12

L33715

JAM NUT

- hex, steering wheel, special

1шт.

13

L78204

WHEEL

- steering

1шт.

14

L78473

PINION

CONTROL VALVE - steering, parts list figures 112 and 114, includes column

1шт.

15

L50073

BEARING CARRIER

BEARING - steering column

1шт.

16

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2"

2шт.

17

D76209

SPACER

- bolt

2шт.

18

195-25

WASHER,3/8"

- flat, 3/8"

2шт.

19

92-6

LOCK WASHER,3/8"

2шт.

20

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

21

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex head, 3/8" - 16 NC x 2-1/2"

2шт.

22

195-25

WASHER,3/8"

- flat, 3/8"

8шт.

23

D40925

SPACER

- bolt

2шт.

24

92-6

LOCK WASHER,3/8"

2шт.

25

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

26

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

27

92-6

LOCK WASHER,3/8"

2шт.

28

L76648

BRACKET

- mounting

2шт.

29

195-25

WASHER,3/8"

- flat, 3/8"

10шт.
