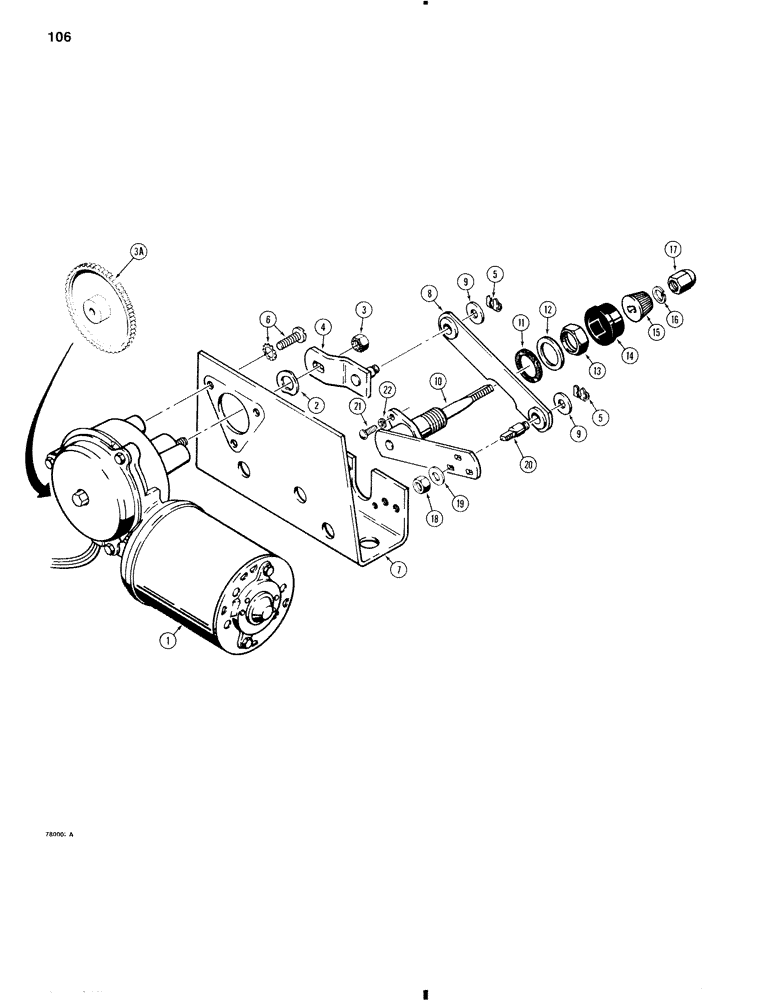

Запчасти Case W11 (106) - FRONT WIPER MOTOR (04) - ELECTRICAL SYSTEMS

D80665

MOTOR

ASSEMBLY - wiper, front, Incls. P/N F96765 and Ref. 1-3A

1шт.

F96765

WIPER MOTOR

MOTOR - wiper, front, Incls. Ref. 1-3A

1шт.

1

NSS

NOT SOLD SEPARAT

MOTOR - wiper

1шт.

2

D71411

WASHER

- wave

1шт.

3

F44452

LOCK NUT

- special self-locking, 1/4" - 28NF

1шт.

3a

N6029

GEAR

- plastic drive

1шт.

4

A36091

ARM

- drive

1шт.

5

D71414

CLIP

- spring

2шт.

6

D72849

SCREW

AND WASHER - No. 10 - 32 NF

3шт.

7

D72850

BRACKET

- mounting

1шт.

8

D71427

LINK,85.85mm L

-, Serial Range: arm-shaft

1шт.

9

A22431

WASHER

- spacer

2шт.

D72848

SHAFT

ASSEMBLY - pivot, Incls. Ref. 10-20

1шт.

10

NSS

NOT SOLD SEPARAT

SHAFT - pivot

1шт.

11

D71417

SPECIAL WASHER

WASHER - fiber

1шт.

12

D71418

WASHER

- steel

1шт.

13

D71419

NUT

- shaft

1шт.

14

D71420

CAP

- shaft

1шт.

15

D71421

TOOL

DRIVE - knurled

1шт.

16

193-9

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, Ext Tooth, 5/16"

1шт.

17

D71422

NUT

- cap

1шт.

18

425-154

JAM NUT,Jam, 1/4"-28, G5

1шт.

19

193-60

LOCK WASHER,Int Tooth, 1/4"

WASHER - flat, 1/4" plated

1шт.

20

D73642

PIN

PIN - threaded

1шт.

21

182-528

SCREW,Sl Pan Hd, #10 - 32 x 1/2"

- round head slotted, No. 10 - 32 NF x 1/2" plated

1шт.

uses item 22, if used

2шт.

21

F44456

SCREW,0.19" - 32 x 3 3/4"

- special, pivot shaft to bracket, does not use item 22, if used

2шт.

22

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, , If used #10

2шт.
