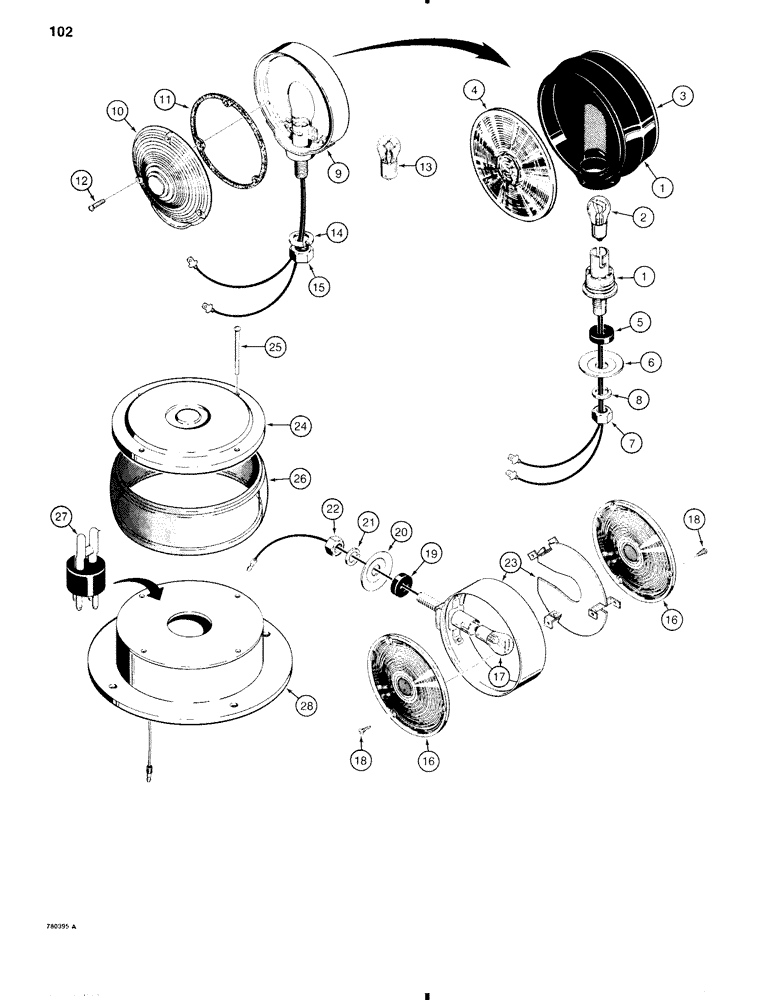

Запчасти Case W11 (102) - SIGNAL LAMPS, L74771 STOP AND TAIL LAMP (04) - ELECTRICAL SYSTEMS

L74771

LAMP

ASSEMBLY - stop and tail, lens snaps in place, if used, Incls. Ref. 1-4

1шт.

1

NSS

NOT SOLD SEPARAT

BODY AND SOCKET - lamp

1шт.

2

T34857

BULB,C6, #1157, 12.8V

- No. 1157

1шт.

3

D82778

LENS

- red

1шт.

4

D82779

LENS

- black

1шт.

5

L30259

WASHER

- rubber

1шт.

6

L30258

WASHER

- crowned

1шт.

7

25-118

NUT,1/2"-20, G5

- hex, 1/2" - 20 NF

1шт.

8

92-8

LOCK WASHER,1/2"

1шт.

L107689

LIGHT

LAMP ASSEMBLY - stop and tail, lens attaches with screws, if used, L107689, Incls. Ref. 9-15

1шт.

9

NSS

NOT SOLD SEPARAT

BODY AND SOCKET - lamp, L107689 stop and tail

1шт.

L32213

LENS

KIT - lamp, L107689 stop and tail, Incls. Ref. 10-12

1шт.

10

NSS

NOT SOLD SEPARAT

LENS - red, L107689 stop and tail lamp

1шт.

11

NSS

NOT SOLD SEPARAT

GASKET - lens, L107689 stop and tail lamp

1шт.

12

173-279

SCREW,Sl Rnd Hd, #6 - 32 x 5/8"

- No. 6 - 32 NC x 5/8", plated, L107689 stop and tail lamp

3шт.

13

R11078

LAMP

BULB - No. 1034, L107689 stop and tail lamp

1шт.

14

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , L107689 Stop and tail lamp 1/2"

1шт.

15

129-125

NUT,1/2"-20, G5

L107689 Stop and tail lamp 1/2"-20, G5

1шт.

L79648

LAMP

- turn signal, Incls. Ref. 16-23

2шт.

16

L30260

LENS

- yellow, turn signal lamp

2шт.

17

A41264

BULB,#1156, 12V

Turn Signal Lamp #1156, 12V

1шт.

18

173-203

SCREW,Sl Rnd Hd, #6 - 32 x 1/2"

- slotted, No. 6 - 32 NC x 1/2", turn signal lamp

6шт.

19

L30259

WASHER

- rubber, turn signal lamp

1шт.

20

L30258

WASHER

- crowned, turn signal lamp

1шт.

21

192-407

LOCK WASHER,7/16"

turn signal lamp 7/16"

1шт.

22

129-104

NUT,7/16"-14, G5

Turn signal lamp 7/16"-14, G5

1шт.

23

NSS

NOT SOLD SEPARAT

BODY AND RETAINER - turn signal lamp

1шт.

L101230

LAMP

- strobe, Incls. Ref. 24-28

1шт.

24

D75869

COVER

- lamp, strobe

1шт.

25

171-131

SCREW,Sl Flat Hd, #6 - 32 x 2 1/4"

- slotted, No. 6 - 32 NC, 2-1/4", plated, strobe lamp

4шт.

26

D75870

LENS

- amber, strobe lamp

1шт.

27

D75871

TUBE

BULB - special, strobe lamp

1шт.

28

NSS

NOT SOLD SEPARAT

BODY - lamp, strobe

1шт.

29

D82934

DECAL

- warning, high voltage not shown, strobe lamp

1шт.
