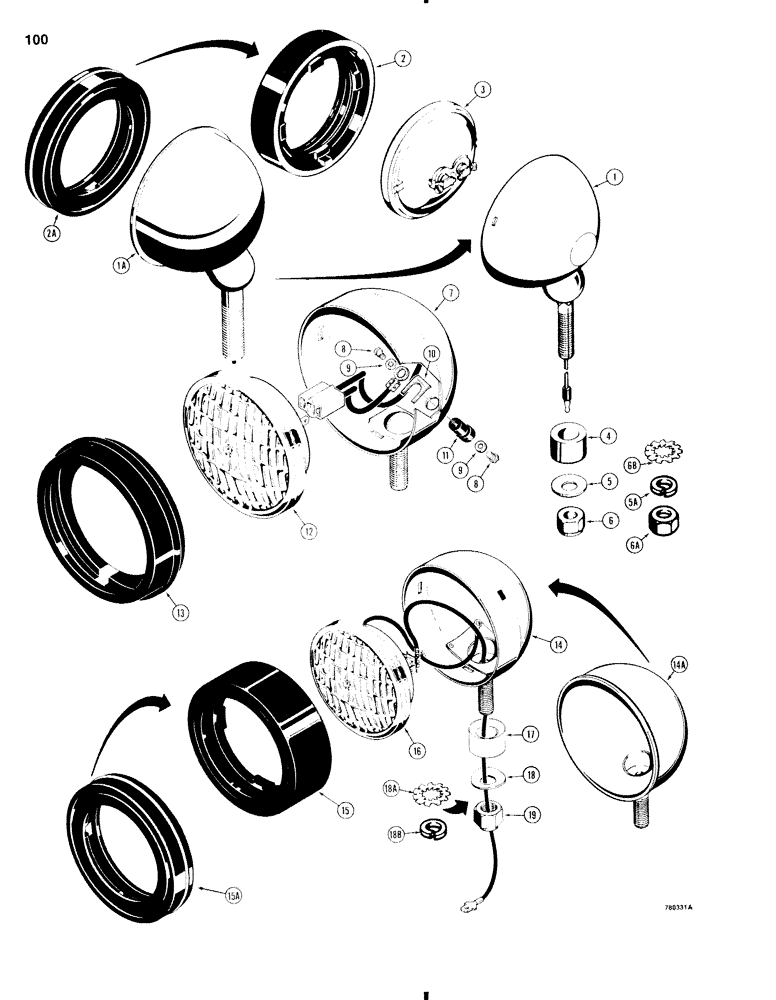

Запчасти Case W11 (100) - FLOOD AND DRIVING LAMPS, D88684 REAR FLOOD LAMP (04) - ELECTRICAL SYSTEMS

D88684

LAMP

ASSEMBLY - rear , interchangeable with D49976, used on models without canopy or cab, Incls. Ref. 1-6B

1шт.

1

NSS

NOT SOLD SEPARAT

SHELL - lamp, uses Ref. 6 only

1шт.

1a

NSS

NOT SOLD SEPARAT

SHELL - lamp, uses Ref. 6A only

1шт.

2

A25213

RETAINER

- lamp, rubber, locks to shell with 3 rubber tabs, if used

1шт.

2a

N6160

LAMP

RETAINER - lamp, rubber, locks over shell flange, if used

1шт.

3

A11280

LAMP

BULB - sealed beam, No. 4411

1шт.

4

D37048

BUSHING

- pivot

1шт.

5

195-106

WASHER,1/2"

- flat, 1/2"

1шт.

5a

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , If used 1/2"

1шт.

6

131-9

LOCK NUT,Prev Torque, Hex, 1/2" - 20, Gr B

NUT - hex, self-locking, 1/2" - 20 NF, if used

1шт.

6a

129-165

JAM NUT,Jam, 1/2"-20, G5

If used Jam, 1/2"-20, G5

1шт.

6b

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, Ext-Int Tooth, 1/2"

1шт.

replace item 5A, if used

2шт.

L79914

LIGHT

LAMP ASSEMBLY - driving, L79914, Incls. Ref. 7-13

2шт.

7

NSS

NOT SOLD SEPARAT

SHELL - lamp, L79914 driving

1шт.

8

173-73

SCREW,Sl Rnd Hd, #8 - 32 x 1/4"

- round head slotted, No. 8 - 32 NC x 1/4", L79914 driving lamp

2шт.

9

193-25

LOCK WASHER,Int Tooth, 0.172" ID x 0.332" OD, STL, PLN

WASHER, LOCK, , L79914 driving lamp Int Tooth, #8

2шт.

10

10927

SPRING

- clip, L79914 driving lamp

1шт.

11

B50293

TERMINAL CONNECTOR

- screw, L79914 driving lamp

1шт.

12

A40636

LAMP

BULB - sealed beam, No. 4480, L79914 driving lamp

1шт.

13

D37966

RETAINER

- lamp, rubber, L79914 driving

1шт.

L78582

LAMP

ASSEMBLY - flood, cab, order L105765, L79914 driving

2шт.

L105765

INTERIOR LIGHT

LAMP ASSEMBLY - flood, cab, L79914 driving, Incls. Ref. 14-19

2шт.

14

NSS

NOT SOLD SEPARAT

SHELL - lamp, uses item 15 only, L79914 driving

1шт.

14a

NSS

NOT SOLD SEPARAT

SHELL - lamp, uses item 15A only, L79914 driving

1шт.

15

D82780

SEAL

RETAINER - lamp, rubber, locks to shell with three rubber, L79914 driving

1шт.

tabs, if used, L79914 driving

1шт.

15a

N6160

LAMP

RETAINER - lamp, rubber, locks over shell flange, if used, L79914 driving

1шт.

16

A42294

SEALED BEAM UNIT

BULB - sealed beam, No. 4406, L79914 driving

1шт.

17

D37048

BUSHING

SPACER - rubber, L79914 driving lamp

1шт.

18

D37049

WASHER

- special, L79914 driving lamp

1шт.

18a

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, , If used, L79914 driving lamp Ext-Int Tooth, 1/2"

1шт.

18b

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , If used, L79914 Driving lamp 1/2"

1шт.

19

129-165

JAM NUT,Jam, 1/2"-20, G5

L79914 driving lamp Jam, 1/2"-20, G5

1шт.
