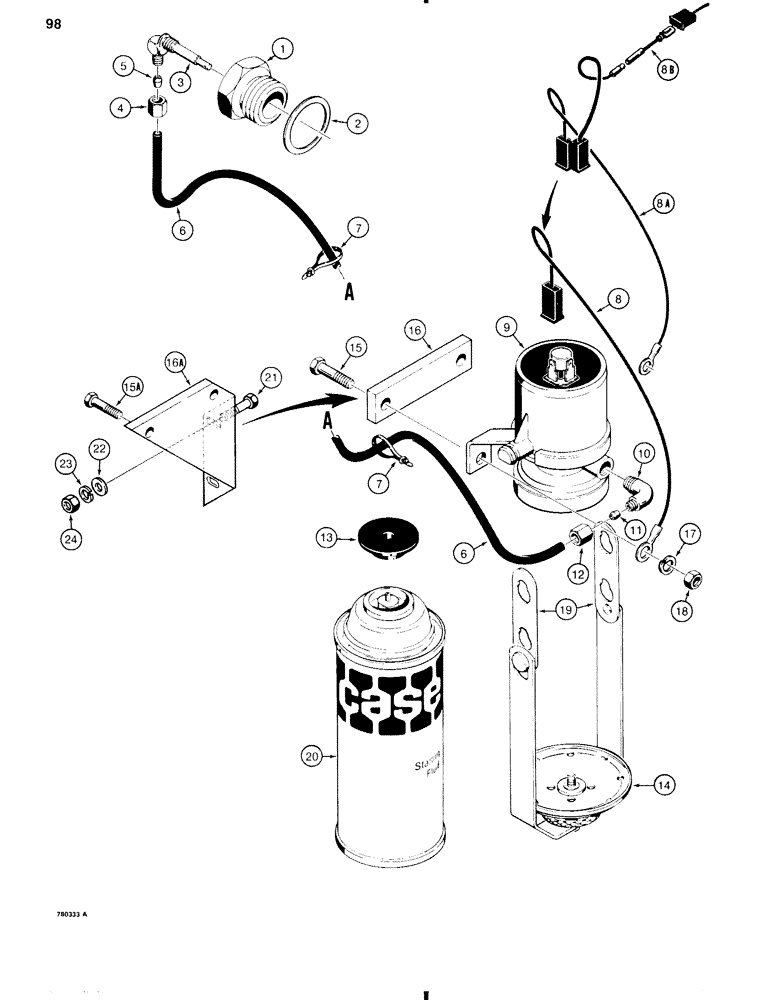

Запчасти Case W11 (098) - COLD START SYSTEM (04) - ELECTRICAL SYSTEMS

1

L10283

PLUG

- manifold

1шт.

2

A20916

MANIFOLD GASKET

WASHER - special

1шт.

D55946

JET

NOZZLE ASSEMBLY - cold start, Incls. Ref. 3-5

1шт.

3

NSS

NOT SOLD SEPARAT

BODY - nozzle

1шт.

4

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

1шт.

5

222-650

SLEEVE,1/8" Tube, Comp

1шт.

6

D35090

TUBE

- 57" (1348 mm) long, used when solenoid mounts in lower frame

1шт.

6

L16688

TUBE,0.078" ID x 0.125" OD x 32" L

- 32" (813 mm) used when solenoid mounts near hydraulic reservoir

1шт.

7

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

8

L76993

WIRE - ground, used when solenoid mounts in lower frame

1шт.

8a

L73023

ELECTRICAL WIRE

WIRE - to ground and rear harness, used when solenoid mounts in lower frame

1шт.

8b

L104539

WIRE - adapter, if used

1шт.

L76942

SOLENOID

ASSEMBLY - cold start, Incls. Ref. 9-14

1шт.

9

NSS

NOT SOLD SEPARAT

SOLENOID - cold start

1шт.

A44809

FITTING

ELBOW - 90 degree, Incls. Ref. 10-12

1шт.

10

NSS

NOT SOLD SEPARAT

BODY - elbow

1шт.

11

222-650

SLEEVE,1/8" Tube, Comp

Elbow 1/8" Tube, Comp

1шт.

12

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

- elbow 5/16"-24, 45º Fl, Comp

1шт.

13

R30786

GASKET

- can

1шт.

14

D77648

BAIL

- can

1шт.

15

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex head, 5/16"-18 NC x 1-1/2", If used

2шт.

15a

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

If used Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

16

D35821

SPACER - used when solenoid mounts in lower frame

1шт.

16a

L103871

BRACKET - mounting, used when solenoid mounts near hydraulic reservoir

1шт.

17

92-5

LOCK WASHER,5/16"

2шт.

18

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

2шт.

19

R30812

LINK

- bail

2шт.

20

B17072

START SPRAY FLUID

CAN - starting fluid

1шт.

21

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

If used Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

22

95-6

WASHER,3/8"

- flat, , if used 3/8"

2шт.

23

92-6

LOCK WASHER,3/8"

if used 3/8"

2шт.

24

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC, if used

2шт.
