Запчасти Case W11 (096) - ELECTRICAL SYSTEM, OPERATORS COMPARTMENT (04) - ELECTRICAL SYSTEMS

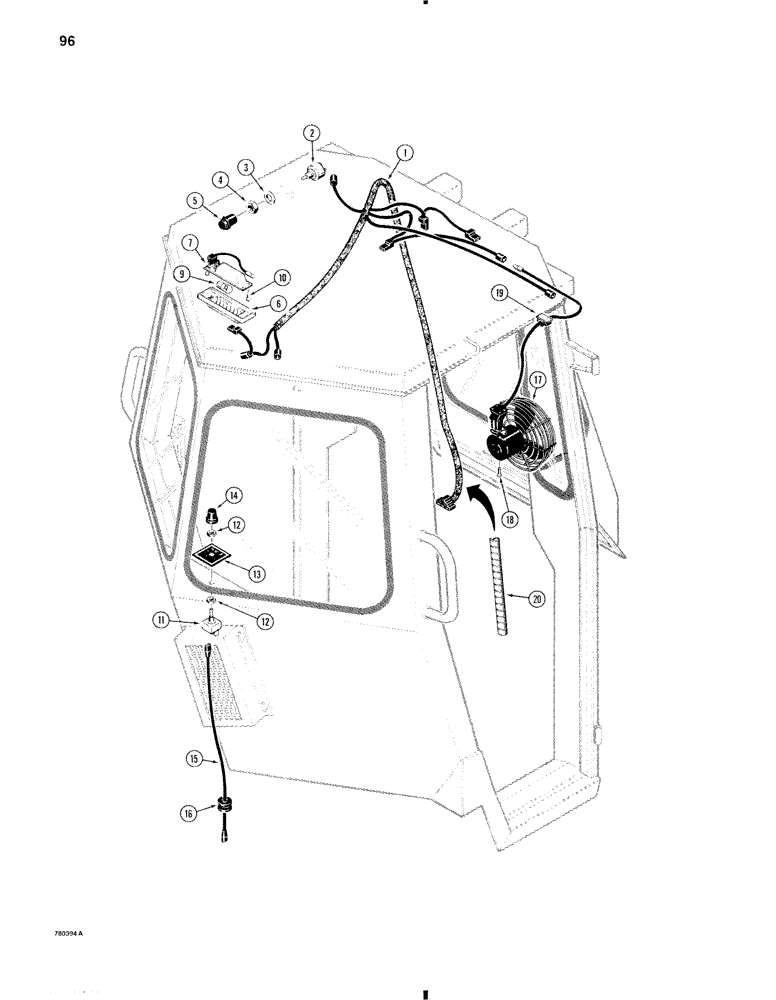

Схема запчастей Case W11 - (096) - ELECTRICAL SYSTEM, OPERATORS COMPARTMENT (04) - ELECTRICAL SYSTEMS

Артикул

Название

Примечание

Количество

1

D80663

HARNESS

- cab

1шт.

1a

L76509

HARNESS

- canopy, not shown

1шт.

D70608

SWITCH

ASSEMBLY - front wiper, Incls. Ref. 2-5

1шт.

2

NSS

NOT SOLD SEPARAT

SWITCH - front wiper

1шт.

3

NSS

NOT SOLD SEPARAT

WASHER - flat

1шт.

4

NSS

NOT SOLD SEPARAT

NUT- hex

1шт.

5

NSS

NOT SOLD SEPARAT

KNOB - switch

1шт.

D80656

LIGHT

LAMP - dome, Incls Ref. 6-8

1шт.

6

D83108

HUB CAP

LENS - lamp

1шт.

7

NSS

NOT SOLD SEPARAT

SWITCH AND BASE - lamp

1шт.

8

RESERVED

1шт.

9

B50223

BULB

- No. 1003, dome lamp

1шт.

10

182-64

SCREW - slotted, No. 6 - 24 NF x 3/8"

4шт.

11

A42622

SWITCH

- blower

1шт.

12

129-164

JAM NUT,Hex, 7/16" - 20, Gr 5

Jam, 7/16"- 20, G5

2шт.

13

N8394

DECAL

PLATE - decal, can be square or cresent type

1шт.

14

A42578

KNOB

- switch, service replacement

1шт.

15

D80659

ELECTRICAL WIRE

WIRE - switch

1шт.

16

D80660

GROMMET

- switch wire

1шт.

17

L13468

FAN

- parts list figure 108

1шт.

18

182-127

SCREW,Sl Pan Hd, #10 - 24 x 3/4"

- round head, No. 10-24 NC x 3/4"

4шт.

19

L100659

CLIP

- wire

1шт.

20

L76540

LOOM

GUARD - harness to transmission control cable

1шт.

Выбрано товаров: 23
