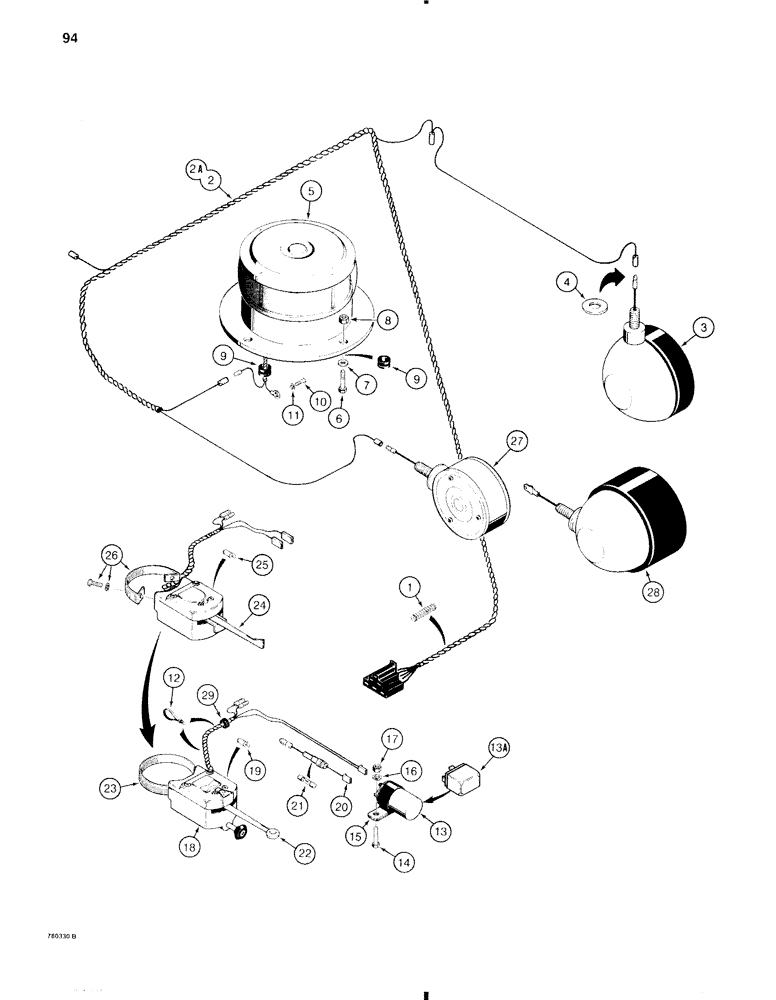

Запчасти Case W11 (094) - ELECTRICAL SYSTEM, TURN SIGNAL, FLOOD LAMPS, AND STROBE LAMP (04) - ELECTRICAL SYSTEMS

1

L76540

LOOM

GUARD - harness to transmission control cable, if used

1шт.

2

L76509

HARNESS

- ROPS, if used

1шт.

2a

REF

INSTRUCTION

HARNESS - cab, if used, Incls. Ref. 97

1шт.

3

D88684

LAMP

- flood, ROPS Models, parts list Fig. 100

2шт.

4

95-8

WASHER,1/2"

flat 1/2"

2шт.

5

L101230

LAMP

- strobe, parts list Fig. 102

1шт.

6

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

7

95-4

WASHER,1/4"

- flat, 1/4"

4шт.

8

131-204

NUT,1/4"-20

NUT - hex, self-locking, 1/4" - 20 NC

4шт.

9

L77834

GROMMET

- bolt and wire

5шт.

10

187-845

SELF-TAP SCREW,Slotted Rd Hd, 1/4" x 1/2"

SCREW - self-tapping, 1/4" - 20 NC x 1/2"

1шт.

11

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

12

L76747

STRAP

TIE STRAP - harness

1шт.

13

L101170

LIGHT, WARNING

FLASHER - uses Ref. 15 clamp

1шт.

13a

L30946

FLASHER UNIT

FLASHER - does not use clamp

1шт.

14

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

If used Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

15

R14098

CLAMP,1 1/4", Insul, 5/16" Bolt

- flasher, if used

1шт.

16

92-5

LOCK WASHER,5/16"

if used 5/16"

1шт.

17

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC, if used

1шт.

L76533

SWITCH

- turn signal, Yankee, if used, Incls. Ref. 18-23

1шт.

18

NSS

NOT SOLD SEPARAT

BODY - switch

1шт.

19

B50213

BULB

- switch, No. 53

1шт.

20

D83045

HARNESS - switch

1шт.

21

223-6

FUSE,6 Amp, Type 3AG

- 6 Amperes, 3AG

1шт.

22

D83046

LEVER - switch

1шт.

23

D83047

STRAP - switch

1шт.

L61326

SWITCH

- turn signal, Signal-Stat, if used, Incls. Ref. 24-26

1шт.

24

NSS

NOT SOLD SEPARAT

BODY AND WIRES - switch

1шт.

25

B50213

BULB

- switch, No. 53

1шт.

26

N8364

MOUNTING PARTS

KIT - clamp and hardware

1шт.

27

L79648

LAMP

- turn signal, parts list Fig. 102

2шт.

28

REF

INSTRUCTION

LAMP - flood, Cab Models, parts list Fig. 101

2шт.

29

L77834

GROMMET

- wire

2шт.
