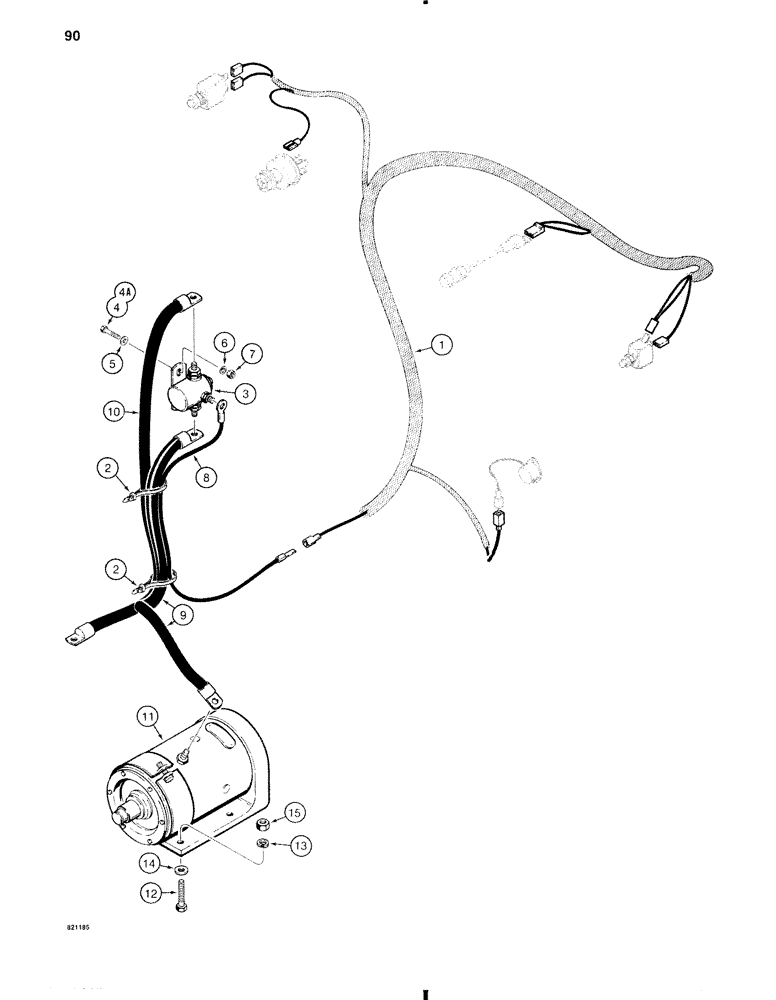

Запчасти Case W11 (090) - ELECTRICAL SYSTEM, AUXILIARY STEERING (04) - ELECTRICAL SYSTEMS

1

L79884

HARNESS

- auxiliary steering, Serial Range: -9136933

1шт.

NOTE: For auxiliary steering switch, warning lamp, buzzer and circuit breaker, see instrument panel parts figures 86 and 88

1шт.

1

L106421

HARNESS

- auxiliary steering, Start Serial: 9136933

1шт.

NOTE: For auxiliary steering switch, warning lamp, buzzer and circuit breaker, see instrument panel parts figures 86 and 88

1шт.

2

L76747

STRAP

TIE STRAP - harness

1шт.

3

L109874

SOLENOID

- auxiliary steering, Fig. 78 or correct mountings plate and connecting parts

1шт.

4

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

If used Hex, 1/4"-20 x 3/4", G5, Full Thd

1-2шт.

4a

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

If used Hex, 1/4"-20 x 1", G5

1-2шт.

5

95-4

WASHER,1/4"

- flat, 1/4

2шт.

6

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

7

25-104

NUT,1/4"-20, G5

2шт.

8

L100822

ELECTRICAL WIRE

WIRE, Serial Range: --solenoid

1шт.

9

L78429

CABLE

- to auxiliary steering motor

1шт.

10

L78328

CABLE

- to auxiliary steering motor

1шт.

11

L78437

MOTOR

- auxiliary steering, parts list Fig. 124

1шт.

12

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2"

4шт.

13

92-6

LOCK WASHER,3/8"

4шт.

14

95-6

WASHER,3/8"

- flat, 3/8"

4шт.

15

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.
