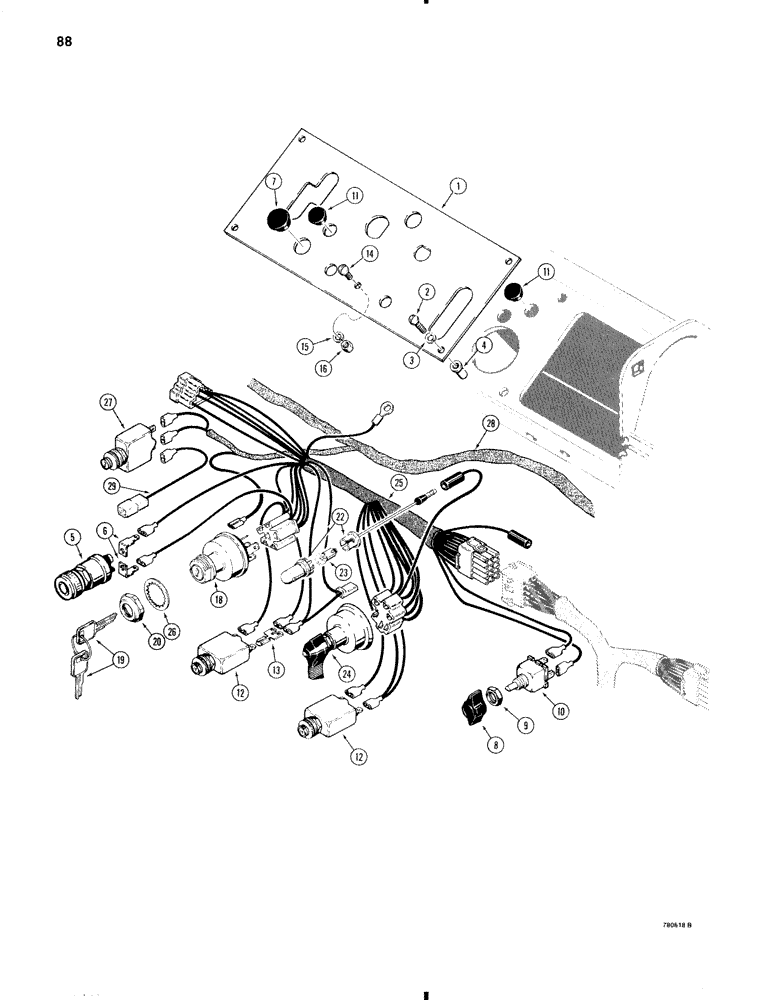

Запчасти Case W11 (088) - ELECTRICAL SYSTEM, LEFT-HAND INSTRUMENT PANEL (04) - ELECTRICAL SYSTEMS

1

L104321

PANEL

- left-hand

1шт.

2

182-149

SCREW,Slotted Pan Hd, #10-32 x 1"

- slotted, No. 10 - 32 NC x 1"

4шт.

3

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

4

L60362

RING NUT

- special, No. 10 x 32 NC

4шт.

5

L72776

SWITCH

- cold start, if used

1шт.

6

L59682

TERMINAL CONNECTOR

TERMINAL - cold start switch

2шт.

7

353-407

PLUG,Dome, .687" hole, Nylon

- if used

1шт.

8

L74694

KNOB

- strobe lamp switch, if used

1шт.

9

A42561

JAM NUT,Hex, 7/16" - 28, RH Thd

- strobe lamp switch, if used

1шт.

10

L70872

SWITCH

- strobe lamp, if used

1шт.

11

353-404

PLUG,Dome, .500" hole, Nylon

If used Dome, .500" hole, Nylon

2шт.

12

L76929

BREAKER

CIRCUIT BREAKER - 12 amperes

2шт.

13

L79086

CONNECTOR, ELEC

CONNECTOR - blade type

1шт.

14

169-97

SCREW,Sl Fil Hd, #10 - 24 x 1/2"

- slotted, No. 10 - 32 NC x 1/2"

1шт.

15

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

16

129-7

NUT,Hex, #10 - 24

- hex, No. 10 - 32 NC

1шт.

17

RESERVED

1шт.

L61053

IGNITION SWITCH

SWITCH ASSEMBLY - key, Incls. Ref. 18-20

1шт.

18

NSS

NOT SOLD SEPARAT

SWITCH - key

1шт.

19

A77313

SET OF 2 KEYS

KEY - set of two

1шт.

20

A77314

NUT

- hex, special, key switch mounting

1шт.

21

RESERVED

1шт.

L55568

INTERIOR LIGHT

LAMP - instrument panel, Incls. Ref. 22 & 23

1шт.

22

NSS

NOT SOLD SEPARAT

BODY AND LENS - lamp

1шт.

23

A22349

BULB

- No. 363

1шт.

24

L55654

SWITCH

- lamp

1шт.

25

L79070

HARNESS

- left-hand, uses with Yankee turn signal switch only

1шт.

25

L61110

HARNESS

- left-hand, used with Signal-Stat turn signal switch only

1шт.

26

193-67

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

1шт.

27

L76726

BREAKER

CIRCUIT BREAKER - auxiliary steering, if used, 3 amperes

1шт.

28

L79884

HARNESS

- auxiliary steering, Serial Range: -91336933

1шт.

28

L106421

HARNESS

- auxiliary steering, Start Serial: 9136933

1шт.

29

L106420

ELECTRICAL WIRE

WIRE - jumper, circuit breaker to key switch, Start Serial: 9136933

1шт.
