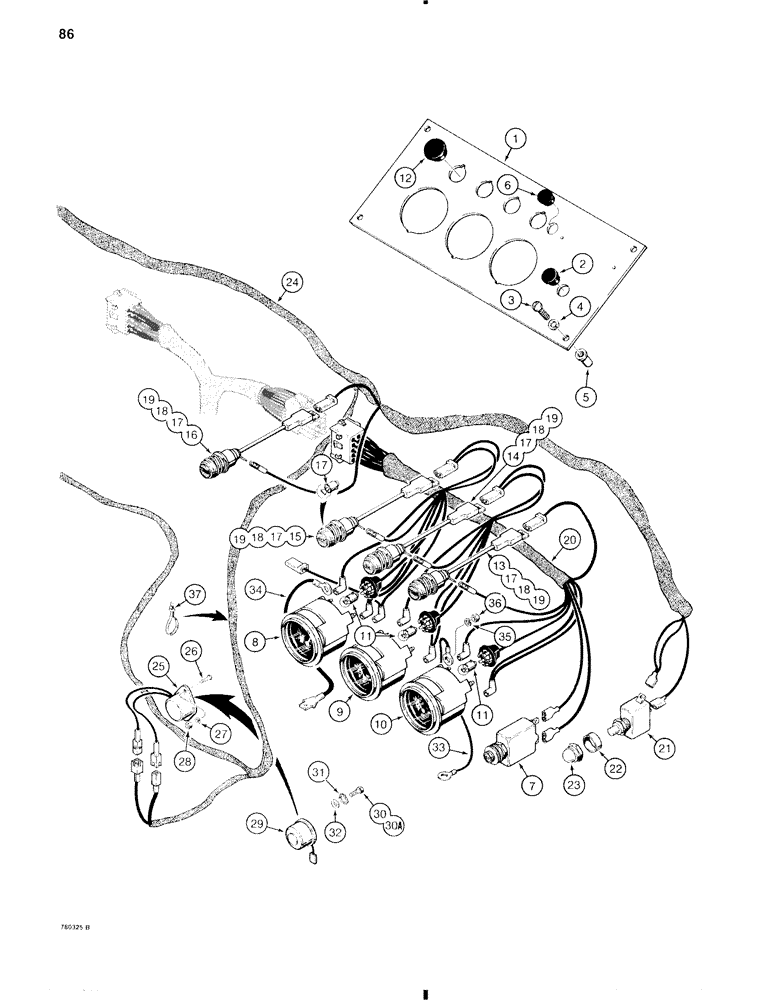

Запчасти Case W11 (086) - ELECTRICAL SYSTEM, RIGHT-HAND INSTRUMENT PANEL (04) - ELECTRICAL SYSTEMS

1

L104322

PANEL

INSTRUMENT PANEL - right-hand

1шт.

2

353-403

PLUG,Dome, .437" hole, Nylon

Used on models without heater switch Dome, .437" hole, Nylon

1шт.

3

182-149

SCREW,Slotted Pan Hd, #10-32 x 1"

- slotted, No. 10 - 32 NC x 1"

4шт.

4

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

5

L60362

RING NUT

- special, No. 10 x 32 NC

4шт.

6

353-404

PLUG,Dome, .500" hole, Nylon

Used on models without strobe switch Dome, .500" hole, Nylon

1шт.

7

L79777

BREAKER

CIRCUIT BREAKER - 20 amperes

1шт.

8

L78580

GAUGE

- fuel

1шт.

9

L78590

ELECTRICAL GAUGE

GAUGE - water temperature

1шт.

10

L78591

GAUGE

- converter temperature

1шт.

11

B50213

BULB

- No. 53

3шт.

12

353-407

PLUG,Dome, .687" hole, Nylon

- used on models without auxiliary steering light

1шт.

13

L74019

LIGHT

WARNING LAMP - clutch pressure

1шт.

14

H358945

LIGHT

WARNING LAMP - engine oil pressure

1шт.

15

H352336

LIGHT

WARNING LAMP - alternator

1шт.

16

H371849

INDICATOR

WARNING LAMP - auxiliary steering, if used, Ref. 17-19

1шт.

17

NSS

NOT SOLD SEPARAT

LENS - all warning lamps

1шт.

18

A24354

BULB

- No. 1895R, all warning lamps

1шт.

19

NSS

NOT SOLD SEPARAT

SPRING AND BODY - all warning lamps

1шт.

20

L79115

HARNESS

- right-hand

1шт.

21

L79996

SWITCH

- push, auxiliary steering, if used

1шт.

22

A29701

BUSHING

SPACER - switch

1шт.

23

L100041

BOOT

COVER - rubber

1шт.

24

L79884

HARNESS

- auxiliary steering, Serial Range: -9136933

1шт.

24

L106421

HARNESS

- auxiliary steering, Start Serial: 9136933

1шт.

25

NSS

NOT SOLD SEPARAT

BUZZER - auxiliary steering, no longer available, order L36195 kit below

1шт.

26

169-29

SCREW - slotted, No. 4 - 40 NC x 1/2", used with Fig. 25 only

2шт.

27

192-3

LOCK WASHER

- lock, No. 4, used with Fig. 25 only

2шт.

28

129-3

NUT,#4-40

Used with Fig. 25 only #4-40

2шт.

29

L103667

BUZZER

- auxiliary steering, if used

1шт.

Part of Late Production Buzzer, P/N L36195

1шт.

30

163-27

SCREW,Sl Hex, #8 - 32 x 1/4"

MACHINE SCREW - hex head, slotted, No. 8 - 32 NC x 1/4", used, with Fig. 29 only, if used

1шт.

Part of Late Production Buzzer, P/N L36195

1шт.

30a

173-274

SCREW,Sl Rnd Hd, #8 - 32 x 1/2"

MACHINE SCREW - round head, slotted, No. 8 - 32 NC x 1/2", used with Fig. 29 only, if used

1шт.

31

193-90

LOCK WASHER,Ext, #8

WASHER, LOCK, , Used with Fig. 30 or 30A only Ext, #8

1шт.

Part of Late Production Buzzer, P/N L36195

1шт.

32

195-510

WASHER,#8

- flat, No. 8, used with Fig. 30A only, if used

1шт.

33

A18457

ELECTRICAL WIRE

WIRE - ground, converter temperature gauge, service, white, replaces black wire

1шт.

34

L100452

ELECTRICAL WIRE

WIRE - ground, fuel gauge

1шт.

35

192-105

LOCK WASHER,#6

WASHER - lock, No. 6

7шт.

36

129-5

NUT,#6-32

7шт.

37

L76747

STRAP

TIE STRAP - harness

1шт.

L36195

KIT

- to convert from early production auxiliary steering, Start Serial: buzzer

1шт.

late production buzzer, Includes: Ref. 29, 30, and 31

1шт.
