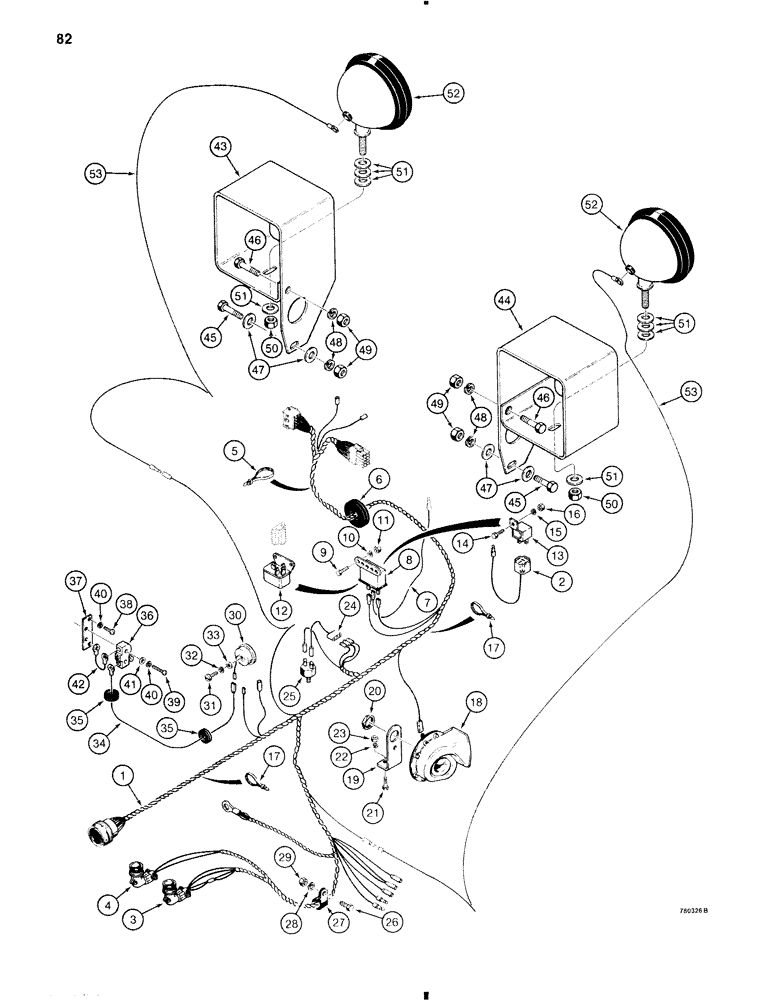

Запчасти Case W11 (082) - ELECTRICAL SYSTEM, FRONT ELECTRICAL HARNESS (04) - ELECTRICAL SYSTEMS

1

L108478

HARNESS

- front, when replacing harness with single wire connections or plug with three blade slots at horn relay, also order

1шт.

L108425 relay (Ref. 13)

1шт.

2

L108567

CONNECTOR, ELEC

CONNECTOR - five blade slots, connects to L108425 relay, Incls. Ref. 2-4

1шт.

Part of Horn Relay Kit, P/N L36222

1шт.

(item 13) only

1шт.

3

N7321

ROD, CONNECTING

CONNECTOR - two pin

1шт.

4

N7322

CONNECTOR, ELEC

CONNECTOR - four pin

1шт.

5

L76747

STRAP

TIE STRAP - harness to steering colunm

2шт.

6

L77823

GROMMET

- rubber

1шт.

7

L76547

WIRE - relay to steering column, used with Ref. 8 and 12 only

1шт.

8

L76530

RELAY - horn, uses three individual wire connections, if used, see items 12 and 13

1шт.

9

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

10

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

11

25-104

NUT,1/4"-20, G5

2шт.

12

NSS

NOT SOLD SEPARAT

RELAY - horn, adapts to harness plug with three blade slots and item 7, order L36222 kit listed below

1шт.

13

L108425

RELAY

- horn, adapts to harness plug with five blade slots, if used

1шт.

Part of Horn Relay Kit, P/N L36222

1шт.

14

163-12

SCREW,Hex, #10 - 24 x 3/4"

MACHINE SCREW - hex head, No. 10 - 24 NC x 3/4"

1шт.

Part of Horn Relay Kit, P/N L36222

1шт.

15

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

Part of Horn Relay Kit, P/N L36222

1шт.

16

129-7

NUT,Hex, #10 - 24

- hex, No. 10 - 24 NC

1шт.

Part of Horn Relay Kit, P/N L36222

1шт.

17

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

18

D123205

HORN

- electrical

1шт.

19

L73799

BRACKET

- horn

1шт.

20

L30866

LOCK NUT

- horn

1шт.

21

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

22

92-5

LOCK WASHER,5/16"

1шт.

23

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

1шт.

24

L79085

ELECTRICAL WIRE

WIRE - harness to stop light switch

1шт.

25

S49603

SWITCH

- stop light

1шт.

26

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

27

49845

CLAMP

- wire harness

1шт.

28

92-6

LOCK WASHER,3/8"

1шт.

29

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

30

L103667

BUZZER

- brake warning

1шт.

31

182-510

SCREW,Sl Pan Hd, #8 - 32 x 1/2"

MACHINE SCREW - No. 8 - 32 NC x 1/2"

1шт.

32

193-5

LOCK WASHER,Ext Tooth, #8

WASHER - lock, No. 8

1шт.

33

195-510

WASHER,#8

- flat, No. 8

1шт.

L36222

KIT

- horn relay; Includes: Ref. nos. 2, 13, 14, 15, and 16, allows L108425 relay to be installed on machines without L108567 connector on front harness

1шт.

34

L76745

ELECTRICAL WIRE

WIRE - buzzer

1шт.

35

A37353

GROMMET

- buzzer wire

2шт.

36

L54683

SWITCH

- parking brake

1шт.

37

L77828

PLATE

- switch mounting

1шт.

38

187-1715

SELF-TAP SCREW,Slotted Pan Hd, #6 x 1/2"

SCREW - self-tapping, No. 6 - 32 NC x 1/2"

2шт.

39

187-1719

SELF-TAP SCREW,Slotted Pan Hd, #6 x 1"

SCREW - self-tapping, No. 6 - 32 NC x 1"

2шт.

40

192-105

LOCK WASHER,#6

WASHER - lock, No. 6

4шт.

41

195-7

WASHER,#6

- flat, No. 6

2шт.

42

L76745

ELECTRICAL WIRE

WIRE - ground

1шт.

43

L79955

BRACKET

- left-hand

1шт.

44

L79954

BRACKET

- right-hand

1шт.

45

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- hex head, 1/2" - 13 NC x 1-3/4"

2шт.

46

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

47

95-8

WASHER,1/2"

flat 1/2"

1шт.

48

92-8

LOCK WASHER,1/2"

4шт.

49

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

4шт.

50

131-654

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC

2шт.

51

95-8

WASHER,1/2"

flat 1/2"

8шт.

52

L79914

LIGHT

LAMP - driving, parts list Fig. 100

2шт.

53

L100883

ELECTRICAL WIRE

WIRE - driving lamp

2шт.
