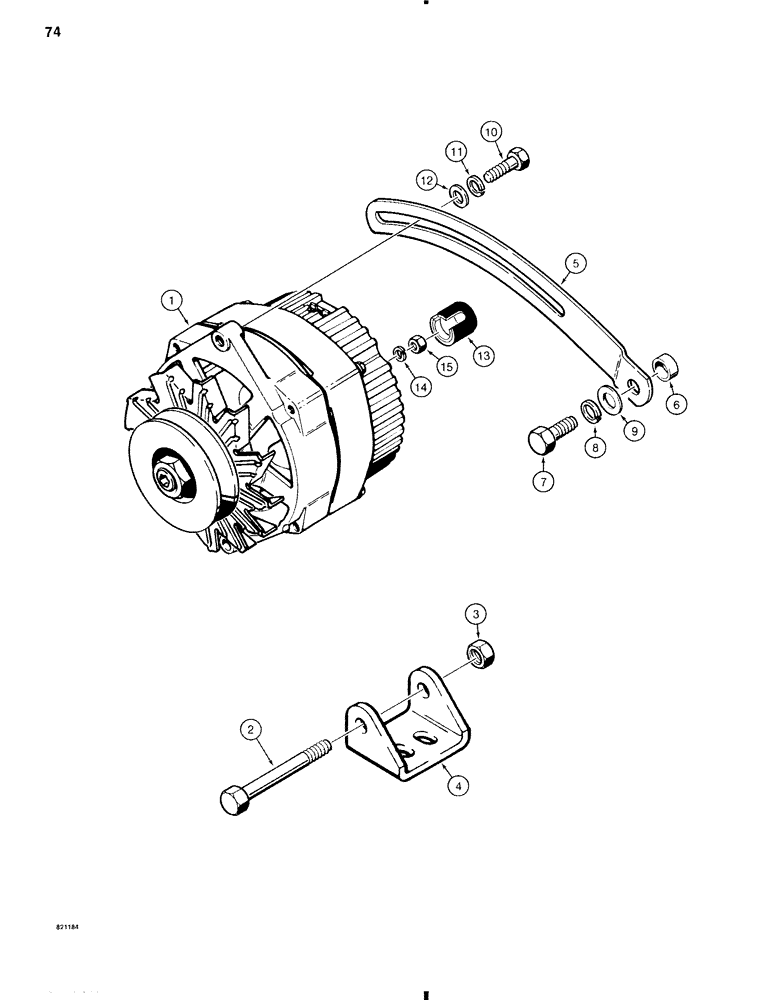

Запчасти Case W11 (080) - ALTERNATOR MOUNTING (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

ALTERNATOR - Figs. 66 thru 70 for the correct assembly

1шт.

and components

1шт.

2

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

- hex head, 3/8" - 16 NC x 3"

1шт.

3

131-652

LOCK NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8" - 16 NC

1шт.

4

REF

INSTRUCTION

BRACKET - alternator base, Fig. 36

1шт.

5

A145326

STRAP

- alternator adjusting

1шт.

6

G11271

SPACER

- adjusting strap

1шт.

7

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- hex head, 3/8" - 16 NC x 3-1/4"

1шт.

8

92-5

LOCK WASHER,5/16"

WASHER - lock, 3/8"

1шт.

9

95-6

WASHER,3/8"

- flat, 3/8"

1шт.

10

814-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex head, 8 mm - 1.25 x 25 mm (8.8), plated

1шт.

11

892-1108

LOCK WASHER,M8

plated M8

1шт.

12

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16"

1шт.

13

L106774

CAP

- alternator outlet terminal, plastic

1шт.

14

892-1106

LOCK WASHER,M6

plated M6

1шт.

15

825-1106

NUT,Hex, M6, Cl 8

- hex, 6 mm - 1, plated

1шт.
