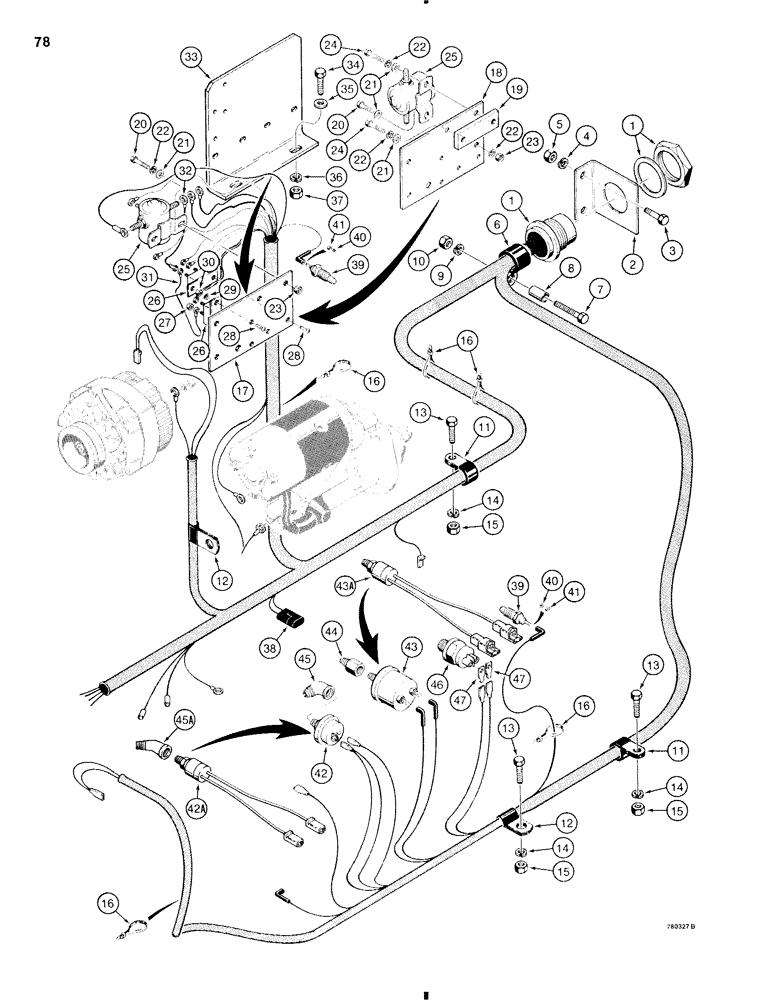

Запчасти Case W11 (078) - ELECTRICAL SYSTEM, REAR ELECTRICAL HARNESS (04) - ELECTRICAL SYSTEMS

1

L60612

HARNESS

Rear, when using on machines with Ref.42 and 43

1шт.

also order L36238 Adapter Kit

1шт.

2

L76520

BRACKET

Harness

1шт.

3

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

4

92-6

LOCK WASHER,3/8"

2шт.

5

25-106

NUT,3/8"-16, G5

2шт.

6

49858

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

CLAMP - harness

1шт.

7

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

8

D33554

BUSHING

SPACER - clamp

1шт.

9

92-6

LOCK WASHER,3/8"

1шт.

10

25-106

NUT,3/8"-16, G5

1шт.

11

NLS

NO LONGER SERVICED

CLAMP - harness

2шт.

12

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

Harness, clamp near alternator uses engine bolt

2шт.

13

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

3шт.

14

92-6

LOCK WASHER,3/8"

3шт.

15

25-106

NUT,3/8"-16, G5

3шт.

16

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP Tie, 15 inch, nylon

1шт.

17

NSS

NOT SOLD SEPARAT

PLATE - solenoid mounting, mounts to engine, 3-1/2" (89 mm) wide x

1шт.

6-1/4" (159 mm) long, order items 18, 19, and 24

1шт.

18

L104320

PLATE

Solenoid mounting, mounts to engine, 4" (102 mm) wide x 6-1/4" (159 mm) long, used before tractor SN 9141233, used

1шт.

with item 19

1шт.

19

L104440

SPACER

Solenoid mounting, used with item 18 only

1-2шт.

20

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

1-4шт.

21

95-4

WASHER,1/4"

2-4шт.

22

92-4

LOCK WASHER,1/4"

2-4шт.

23

25-104

NUT,1/4"-20, G5

2-4шт.

24

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2-4шт.

25

L109874

SOLENOID

Starter and auxiliary steering

1-2шт.

26

R45475

BREAKER

CIRCUIT - 30 amperes (Replaces L104330), Incls. Ref. 27

2шт.

27

129-27

NUT,Hex, #10 - 32

2шт.

28

169-77

SPARE PART Slotted, No. 8 - 32 NC x 1/2"

4шт.

29

192-6

LOCK WASHER,#8

4шт.

30

129-6

NUT,#8-32

4шт.

31

L76593

ELECTRICAL WIRE

WIRE Circuit breaker to circuit breaker

4шт.

32

L76594

ELECTRICAL WIRE

WIRE Circuit, Serial Range: breaker-solenoid

1шт.

33

L108136

BRACKET

Solenoid mounting, mounts to frame, used on tractor, Start Serial: 9141233

1шт.

34

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

35

95-5

WASHER,3/8" x 7/8" x .083"

Flat, 5/16"

2шт.

36

92-5

LOCK WASHER,5/16"

2шт.

37

9635082

NUT,5/16" - 18, Gr 5

2шт.

38

L71879

DIODE ELEMENT,400V, 3A

Alternator protecting

1шт.

39

D65446

SENDER UNIT

SENDER Temperature, transmission and engine

2шт.

40

92-3

LOCK WASHER,#10

2шт.

41

129-27

NUT,Hex, #10 - 32

2шт.

42

NSS

NOT SOLD SEPARAT

SWITCH - clutch pressure, order items 42A, 45A, and D36238

1шт.

42a

L109376

SWITCH

Clutch pressure, when replacing item 42 also order, D36238

1шт.

Order Adapter kit L36238

1шт.

43

NSS

NOT SOLD SEPARAT

SWITCH - backup alarm, if used, order items 43A and L36238

1шт.

Order Adapter kit L36238

1шт.

43a

L110040

SWITCH

Backup alarm, if used, when replacing item 43 also order

1шт.

Order Adapter kit L36238

1шт.

44

217-1

ADAPTER

FITTING - straight, 1/8" NPT, used with item 43 only

1шт.

45

221-411

ELBOW,90 Degree, 1/8"-27, NPT

Street, used with item 42 only

1шт.

45a

221-401

ELBOW,45 Degree, 1/8"-27, NPT

STREET, used with item 42A only

1шт.

46

D83020

SWITCH

Neutral start

1шт.

47

L59682

TERMINAL CONNECTOR

Neutral start switch

2шт.

L36238

KIT

Terminal adapter, adapts different style harness connection to either items 42 and 43 or 42A and 43A switches

1шт.
